Schneider Electric NSYCEJ
Foam entry gasket, PanelSeT SFN, PanelSeT SF, PanelSeT SM, expanded polyurethane
- MPN
- NSYCEJ
- EAN
- 3606485130163
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCEJ?

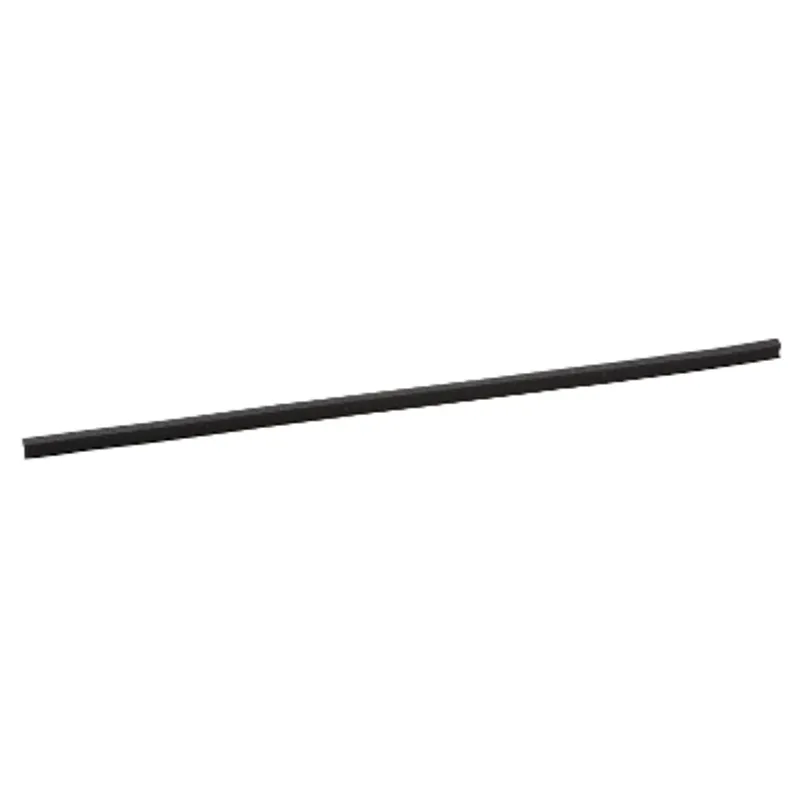

This is a foam cable entry spare gasket for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of self-extinguishing polyurethane. It is designed to be fixed on cable gland plate. The nominal width is 1000mm and the real width is 1010mm. The height and depth are 15mm and 25mm respectively. Its length is 1m. The kit contains 4 gasket strips.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Foam gasket |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT PanelSeT SF SF suitable enclosure, PanelSeT PanelSeT SM SM compact enclosure |
| Device composition | 4 gasket strips |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate |
| Material | Self-extinguishing polyurethane |
| Fixing mode | Adhesive |
| Length | 1 m |
| Height | 15 mm |
| Width | Nominal: 1000 mm, Real: 1010 mm |
| Depth | 25 mm |
Packaging
| Package 1 | 1 PCE, 2.500 cm × 7.000 cm × 101.000 cm (L × W × H), 74.000 g |
| Package 2 | 120 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 35.000 kg |
