Schneider Electric
NSYCAF223OGreasy amb. filter for outlet grille or fan cut-out 223x223mm ext dim 268x248mm

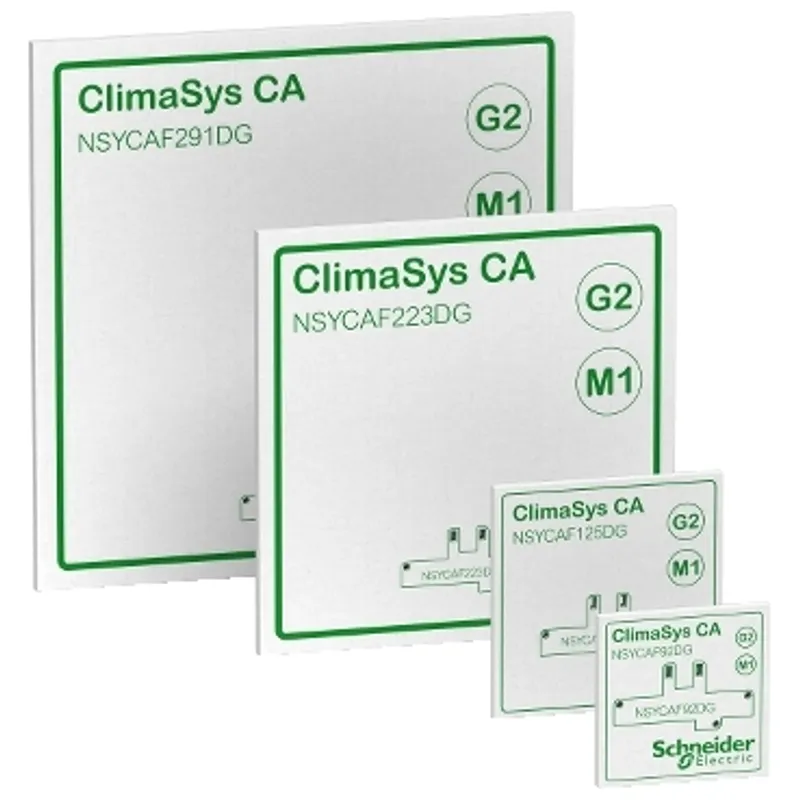

Schneider Electric NSYCAF291DG
ClimaSys - CSVS SmartFilter G3 291x291mm
- MPN
- NSYCAF291DG
- EAN
- 3606489559328
- Category
- ClimaSys CA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYCAF291DG?
"Set of 5 G2 filters for ClimaSys enclosures" "The product is to be mounted between enclosure and outlet grille or fan" "The width is 280mm" The height is 280mm Compatible with dust sensor NSYCCASFSDUST, NSYCVF,M,DG and NSYCAG,DG The filter is 8mm thick Cut-out dimensions is 291 x 291mm Flame retardance M1 conforming to NF P92-507 and K1/F1 conforming to DIN 53 438 "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CA |
| Product or component type | Filter |
| Range compatibility | Spacial, Thalassa |
| Accessory / separate part category | Thermal management accessory |
| Type of ventilation filter | G3 EN 779, G3 ISO 16890-1 |
| Mounting location | Between enclosure and outlet grille or fan |
| Product compatibility | Dust sensor NSYCCASFSDUST, NSYCVF...M...DG, NSYCAG...DG |
| Accessory / separate part destination | Outlet grille 336 x 316 mm |
| Quantity per set | Set of 5 |
| Cut-out dimensions | 291 x 291 mm |
| Width | 280 mm |
| Height | 280 mm |
| thickness | 8 mm |
| Flame retardance | M1 conforming to NF P92-507, K1/F1 conforming to DIN 53 438 |
Packaging
| Package 1 | 1 PCE, 0.620 cm × 31.000 cm × 5.000 cm (L × W × H), 17.000 g |
| Package 2 | 5 BB1, 31.000 cm × 31.000 cm × 5.000 cm (L × W × H), 85.000 g |
| Package 3 | 100 CAR, 61.000 cm × 61.000 cm × 32.500 cm (L × W × H), 1.700 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCAF291DG: frequently asked questions
When can NSYCAF291DG be shipped?
NSYCAF291DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAF291DG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAF291DG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAF291DG, subject to availability and destination.
