Schneider Electric NSYBRF17PLAG
19" fixed chassis 17U forPLA enclosure H1000xW750mm
- MPN
- NSYBRF17PLAG
- EAN
- 3606485405506
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

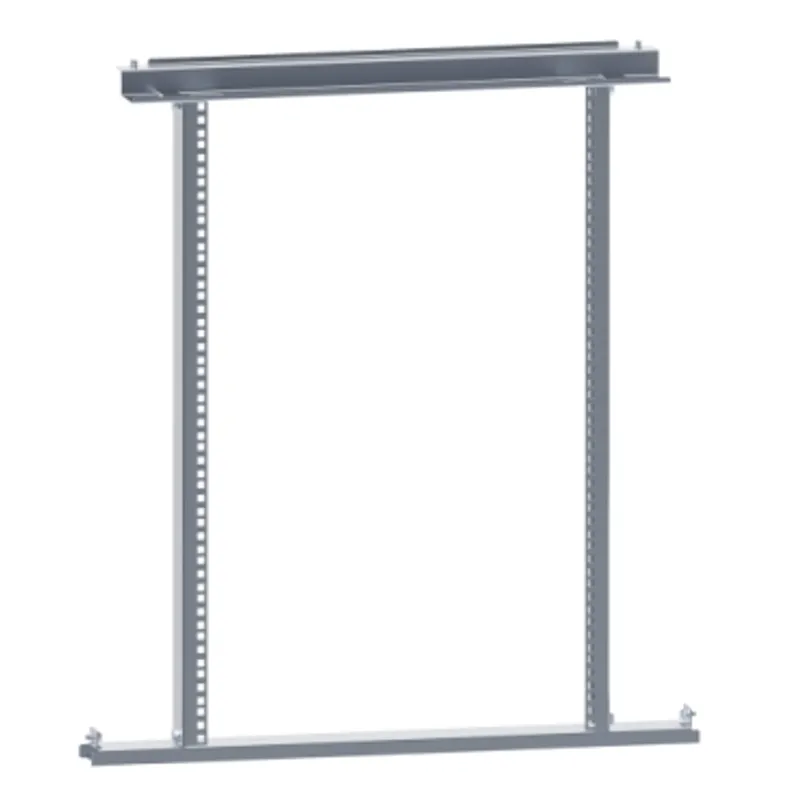

What is the Schneider Electric NSYBRF17PLAG?
Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT PLA and PanelSeT PHD enclosures The nominal height is 1000mm Supports mounting of 17 units The kit supplied with fixing elements and 2 19" uprights The strips are manufactured from 2mm grey sheet steel (RAL 7035) The product is be mounted on front of enclosure Anti-corrosion protection is ensured by epoxy-polyester powder coating The permanent permissible load is 3kg per unit
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Rack type | Fixed |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PLA |
| Device composition | Fixing elements, 2 19" uprights |
| Quantity per set | Set of 1 |
| Number of units 19" | 17 |
| Material | Sheet steel |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| fixing mode | By fixing element |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Height | Nominal: 1000 mm |
| thickness | 2 mm |
Packaging
| Package 1 | 1 PCE, 82.500 cm × 11.500 cm × 10.000 cm (L × W × H), 4.694 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 48.000 cm (L × W × H), 153.000 kg |
