Schneider Electric NSYAEFPFS3DW100

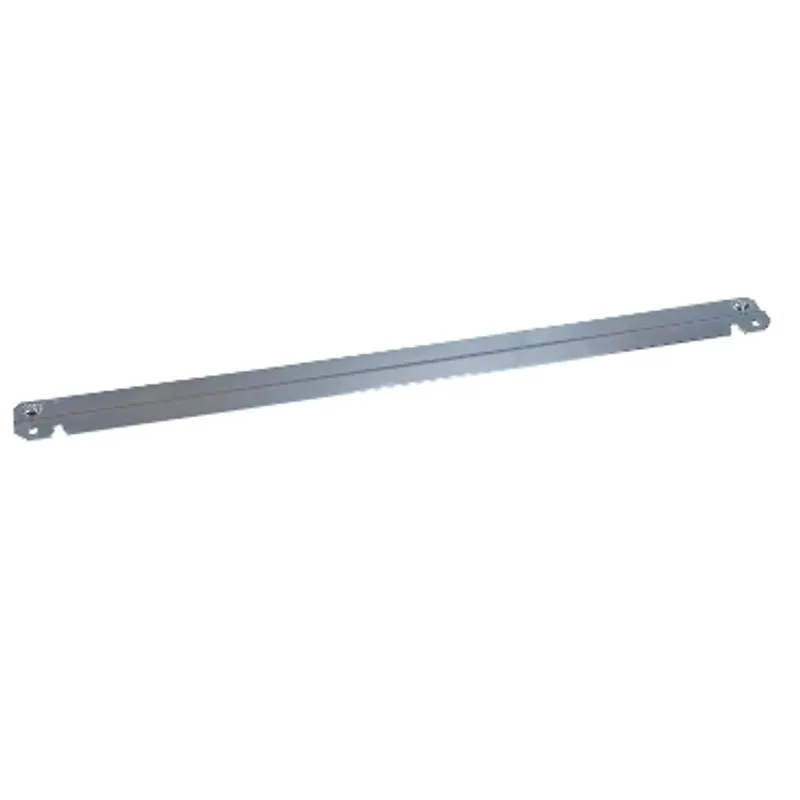

Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg
- MPN
- NSYAEFPFS3DW100
- EAN
- 3606480323041
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYAEFPFS3DW100?
Schneider Electric Kit for heavy load. Kit composed with 2 brackets. Maximum load 400 kg, manufacturer part number NSYAEFPFS3DW100. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 800 mm W: 1000 mm D: 300 mm, - H: 1000 mm W: 1000 mm D: 300 mm, - H: 1200 mm W: 1000 mm D: 300 mm, - H: 1200 mm W: 1000 mm D: 400 mm, - H: 1400 mm W: 1000 mm D: 400 mm |
| Mounting location | Top and bottom, on rear of the enclosure |
| Range compatibility | PanelSeT PanelSeT S3DC |
| Device composition | Fixing screws, 2 lug, 2 pre-mounted sealing gasket |
| Quantity per set | Set of 1 |
| Material | Zinc coated steel |
| Fixing mode | Screwed - screw type M8 - inside location |
| Permanent permissible load | 350 kg |
| Height | Fixing centers: 47 mm |
| Width | 1000 mm |
| Depth | Wall-enclosure separation : 7.5 mm |
| Net weight | 3.262 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 101.000 cm × 8.000 cm × 2.000 cm (L × W × H), 3.120 kg |
| Package 2 | 10 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 31.200 kg |
