Schneider Electric METSECT5MC050

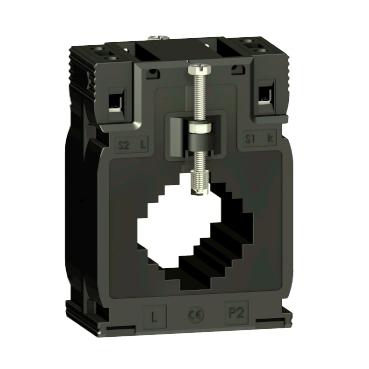

Current transformer tropicalised DIN mount 500 5 for bars 10x40 20x32 25x25
- MPN
- METSECT5MC050
- EAN
- 3606480618840
- Category
- PowerLogic™ Current Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric METSECT5MC050?
This current transformer, tropicalised for busbar and cable, has a line rated current of 500 A and a secondary current rating of 5 A. This current transformer do have a 41 mm x 41 mm opening. Compatible with a triple output for bar: 40.5 mm x 10.5 mm or 32.5 mm x 20.5 mm or 25.5 mm x 25.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 10 VA, Class 1 at 12 VA |
| [In] rated current | 500 A |
| Current transformer type | Tropicalised for busbar and cable, Solid core |
| Current transformer ratio | 500/5 |
| [Ith] conventional free air thermal current | 30 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | By screws, Insulated locking screw, Clip-on |
| Mounting support | Busbar, Mounting plate, DIN rail |
| Width | Outside: 70 mm, Inner: 41 mm |
| Height | Outside: 95 mm, Inner: 41 mm |
| Depth | Frame : 45 mm, Total : 65 mm |
| Diameter | 32 mm |
| Net weight | 0.429 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 32 mm |
| Opening of bars | 40.5 x 10.5, 25.5 x 25.5, 32.5 x 20.5 |
| Sealing | Without |
| Standards | VDE 0414, IEC 61869-2 |
| Product certifications | CE, EAC |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Packaging
| Package 1 | 1 PCE, 11.5 cm × 9 cm × 7 cm (L × W × H), 413 g |
| Package 2 | 25 S03, 40 cm × 30 cm × 30 cm (L × W × H), 10.77 kg |
