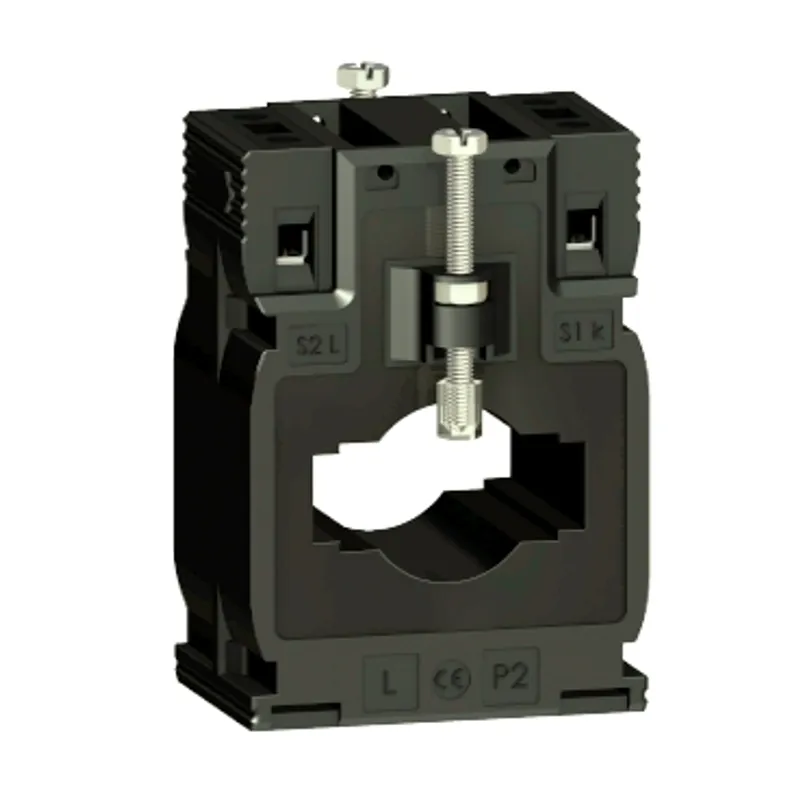

Schneider Electric METSECT5MB025
Current transformer tropicalised DIN mount 250 5 cables d. 26 - bars 12x40 15x32
- MPN
- METSECT5MB025
- EAN
- 3606480618758
- Category
- PowerLogic™ Current Transformers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric METSECT5MB025?
This current transformer, tropicalised for busbar and cable, has a line rated current of 250 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 26 mm. Compatible with a double output for bar: 40.5 mm x 12.5 mm or 32.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 4 VA, class 1 maximum power: 6 VA.
Specifications
Specifications
| Range | PowerLogic |
| Product or component type | Current transformer |
| Product name | CT |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 3 VA, Class 1 at 4 VA |
| [In] rated current | 250 A |
| Current transformer type | Tropicalised for busbar and cable, Solid core |
| Current transformer ratio | 250/5 |
| [Ith] conventional free air thermal current | 15 kA |
| Dynamic withstand current | 2.5 Ith |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV 50 Hz for 1 minute |
| Mounting mode | Insulated locking screw, By screws, Clip-on |
| Mounting support | Mounting plate, DIN rail, Busbar |
| Width | Outside: 60 mm |
| Height | Outside: 85 mm |
| Depth | Frame : 43 mm, Total : 63 mm |
| Diameter | 26 mm |
| Net weight | 0.305 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| Cable outer diameter | 26 mm |
| Opening of bars | 32.5 x 15.5, 40.5 x 12.5 |
| Sealing | Without |
| Standards | IEC 61869-2, VDE 0414 |
| Product certifications | CE |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…60 °C |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 7.000 cm × 7.500 cm (L × W × H), 309.000 g |
| Package 2 | 40 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.760 kg |
