Schneider Electric MCSEAM0100
Memory backup adapter for Modicon switch - USB Type-C connector
- MPN
- MCSEAM0100
- EAN
- 3606481463234
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

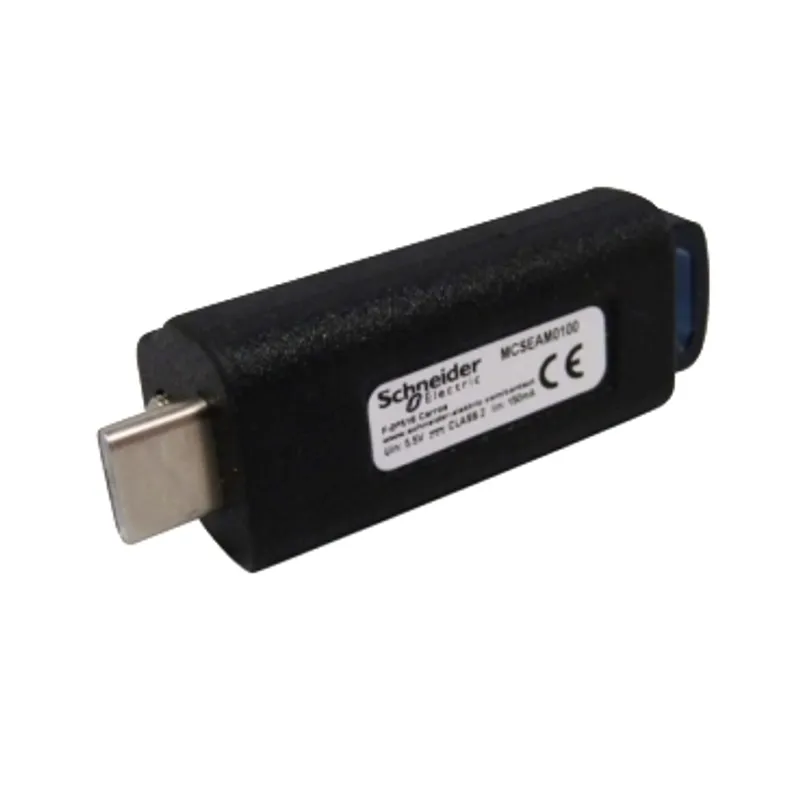

What is the Schneider Electric MCSEAM0100?
This product is part of the Modicon Networking range, an accessory of Modicon Switch. This product is a memory backup adapter for the Modicon switch. It comes with a USB type C connector, which can connect to the USB type C port on the front of the switch. It comes with IP20 Degree of protection. It helps to save and retrieve the switch configuration update the internal software. It is compatible with MCSESM and MCSESP switch. The Modicon Switch range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon |
| Product or component type | Configuration backup key |
| Accessory / separate part category | Separate parts |
| Product specific application | Save and retrieve the switch configuration, Update the internal software |
| Product compatibility | MCSESM switch, MCSESP switch |
| Electrical connection | 1 connector USB type C on the front of the switch |
| Net weight | 0.050 kg |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 17.300 cm × 12.700 cm × 4.000 cm (L × W × H), 68.000 g |
