HMIG5U21Base unit, Harmony GTU, Windows 10, Universal Panel, without HMI software installed
Schneider Electric HMIGK2310
Keypad-touchscreen panel color - 320 x 240 pixels QVGA- 5.7" - TFT LCD
- MPN
- HMIGK2310
- EAN
- 3606480992087
- Category
- HMI & Operator Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric HMIGK2310?

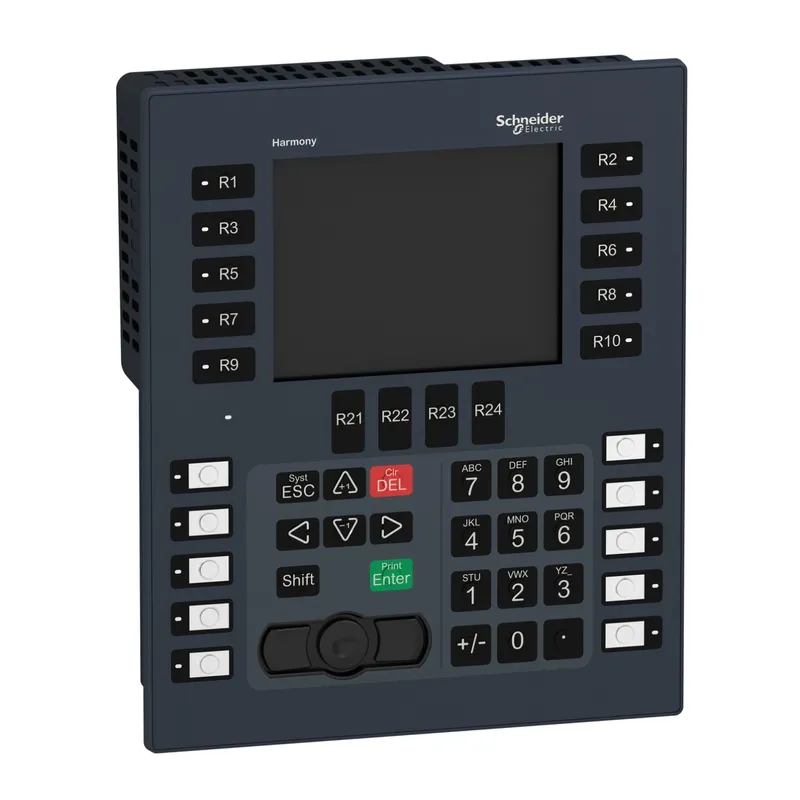

This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 14 dynamic function keys, 10 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony GK |
| Product or component type | Touchscreen panel with keypad |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Supply | External source |
| Software package | Vijeo Designer |
| Processor name | ARM926EJ-S |
Complementary
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours |
| Brightness | 16 levels via touch panel |
| Character font | Korean; Taiwanese (traditional Chinese); ASCII (European characters); Japanese (ANK, Kanji); Chinese (simplified Chinese) |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Power consumption in W | 7.7 W |
| Number of dynamic function keys symb | 14 with LED |
| Number of static function keys | 10 with LED and labels |
| Number of SERVICE keys | 8 |
| Number of alphanumeric keys | 12 |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Number of pages | Limited by internal memory capacity |
| Software type | Configuration software |
| Memory description | 512 KB SRAM back up of data with lithium battery back-up; 128 MB flash EPROM application memory |
| Downloadable protocols | Telemecanique Modicon FIPWAY; Telemecanique Modicon Modbus Plus; Telemecanique Modicon Modbus TCP; Telemecanique Modicon Modbus; Mitsubishi Melsec third party protocols; Omron Sysmac third party protocols; Rockwell Automation Allen-Bradley third party protocols; Siemens Simatic third party protocols; Telemecanique Modicon Uni-TE |
| Realtime clock | Built-in |
| Memory type | Up to 32 GB SD card RAM; Up to 32 GB SDHC card RAM |
| Integrated connection type | <= 187.5 kbit/s RJ45, RS485 COM2 serial link for Siemens MPI (187.5 kbits/s); USB 2.0 type A master port for Modicon M340 terminal port communication; <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link; removable screw terminal block power supply; RJ45 Ethernet TCP/IP; USB 2.0 type mini B |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Mounting mode | Flush mounting |
| fixing mode | By 10 spring clips |
| Front material | Aluminium alloy |
| Enclosure material | PPT |
| Marking | CE |
| Width | 220.3 mm |
| Height | 265 mm |
| Depth | 70 mm |
| Cut-out dimensions | 209 (+/- 0.4) x 243 (+/- 0.4) mm |
| Net weight | 1.8 kg |
Environment
| Immunity to microbreaks | 5 ms |
| Standards | UL 61010-2-201; IEC 61000-6-2; IEC 61131-2; ANSI/ISA 12.12.01; CSA C22.2 No 213; IEC 61000-6-4; UBC 1997 (Seismic Zone 4) |
| Product certifications | UL Class 1 Division 2 T5; KC; CSA Class 1 Division 2 T5; CSA Class 1 Division 2 T4A; EAC; RCM; cULus; UL Class 1 Division 2 T4A; UKCA |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529; IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz); 3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz) |
| Electromagnetic compatibility | Resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2; Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3; Resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4 |
