Schneider Electric DZ5CE040
Cable ends, Linergy TR cable ends, single conductor, 0.5mm², for un-insulated cable, medium size, 10 sets of 100
- MPN
- DZ5CE040
- EAN
- 3389110537031
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric DZ5CE040?

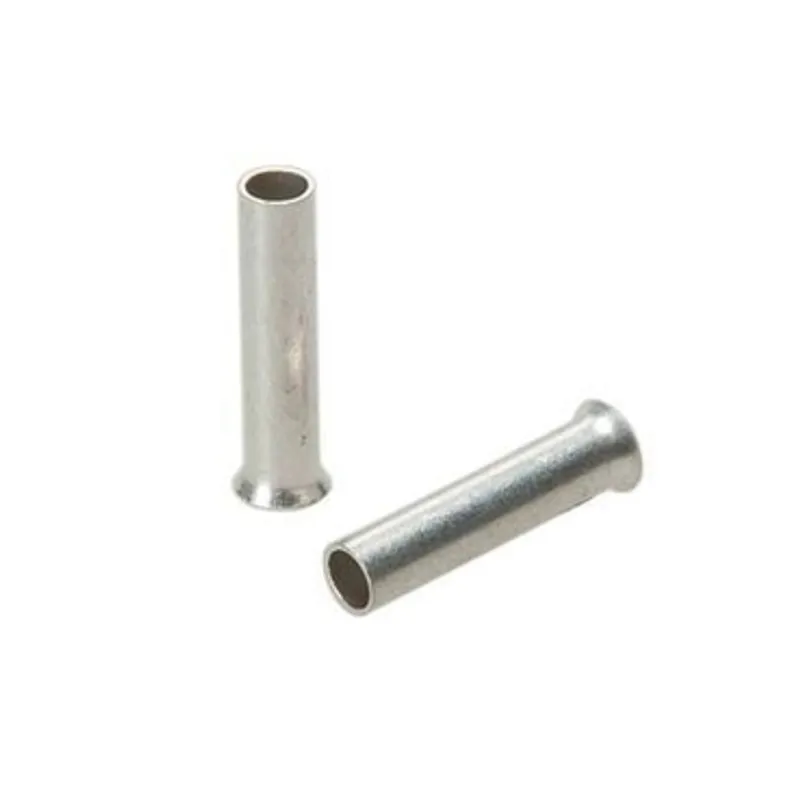

Linergy cable end un-insulated without marker tag holder. It applied to single conductor with 4 mm² cable cross section. Packing by dispenser pack and quantity per 1 set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-1 standard. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-1 |
| Type of packing | String of bags |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 4 mm² |
| Cable end type | Single conductor |
| Additional information | Non-insulated |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 12 |
| Bezel size | Ø 5.4 mm |
| Tube diameter | 3.2 mm |
| Length | 12 mm |
| Tube length | 12 mm |
| Net weight | 0.3 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.200 g |
| Package 2 | 100 BB1, 6.000 cm × 4.000 cm × 1.500 cm (L × W × H), 25.000 g |
| Package 3 | 10000 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 2.625 kg |
