Schneider Electric DZ5CE005L10D

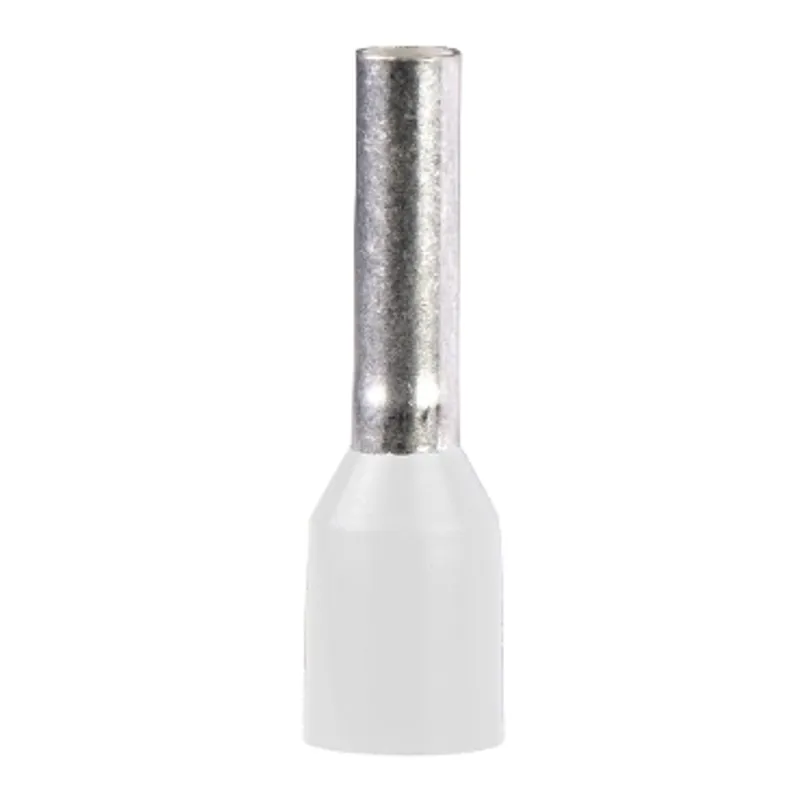

Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², for insulated cable, long size, 10 sets of 100
- MPN
- DZ5CE005L10D
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric DZ5CE005L10D?
Schneider Electric Cable ends, Linergy TR cable ends, single conductor, white, 0.5mm², for insulated cable, long size, 10 sets of 100, manufacturer part number DZ5CE005L10D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Long |
| Standards | DIN 46228-4 |
| Type of packing | String of bags |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 0.5 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | White |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 22 |
| Bezel size | Ø 3 mm |
| Tube diameter | 1.4 mm |
| Length | 16 mm |
| Tube length | 12 mm |
| Net weight | 0.095 kg |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.500 cm × 0.300 cm × 0.300 cm (L × W × H), 0.100 g |
| Package 2 | 100 BB1, 9.000 cm × 8.500 cm × 1.000 cm (L × W × H), 9.000 g |
| Package 3 | 160000 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 26.928 kg |
DZ5CE005L10D: frequently asked questions
When can DZ5CE005L10D be shipped?
DZ5CE005L10D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CE005L10D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CE005L10D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CE005L10D, subject to availability and destination.
