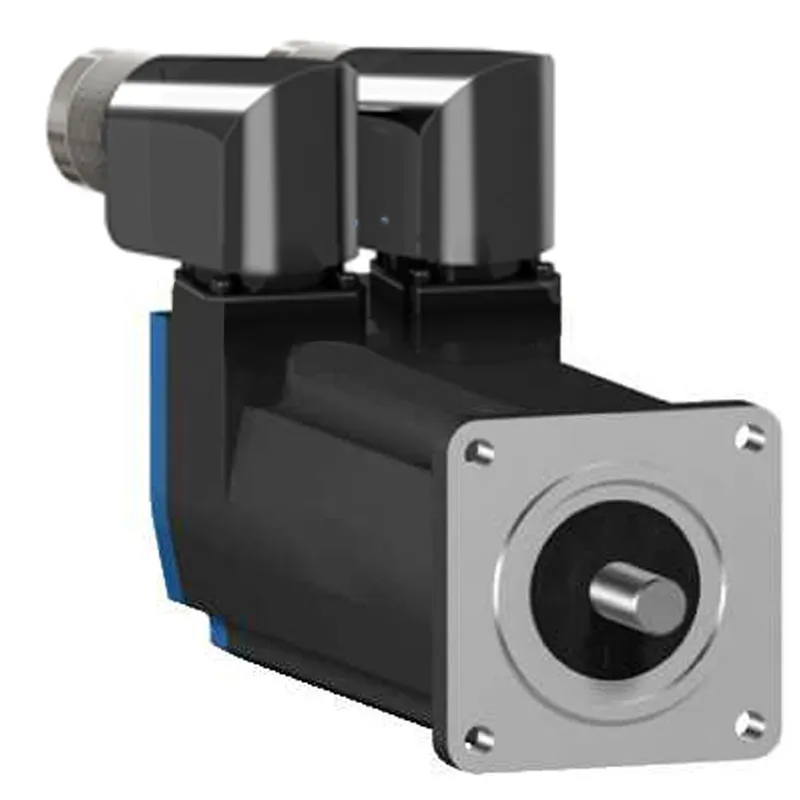

BSH0551T11F2AAC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - with brake - IP50
Schneider Electric BSH0551T12F2A
AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - with brake - IP50
- MPN
- BSH0551T12F2A
- EAN
- 3389118158351
- Category
- Lexium 05
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BSH0551T12F2A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BSH0551T12F2A?
Schneider Electric BSH0551T12F2A — AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - with brake - IP50 (Lexium 05). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BSH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 9000 rpm |
| Continuous stall torque | 0.5 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 0.5 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 0.5 N.m for LXM05CU70M2, 200...240 V, single phase; 0.5 N.m for LXM05AD10F1, 110...120 V, single phase; 0.5 N.m for LXM05AD10M2, 200...240 V, single phase; 0.5 N.m for LXM05BD10F1 at 1.5 A, 110...120 V, single phase; 0.5 N.m for LXM05BD10M2, 200...240 V, single phase; 0.5 N.m for LXM05CD10F1, 110...120 V, single phase; 0.5 N.m for LXM05CD10M2, 200...240 V, single phase; 0.5 N.m for LXM15LD13M3, 230 V, three phase; 0.5 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.5 N.m for LXM05BD10M3X, 200...240 V, three phase; 0.5 N.m for LXM05CD10M3X, 200...240 V, three phase |
| Peak stall torque | 1.5 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 1.4 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 1.08 N.m for LXM05CU70M2, 200...240 V, single phase; 1.4 N.m for LXM05AD10F1, 110...120 V, single phase; 1.4 N.m for LXM05AD10M2, 200...240 V, single phase; 1.4 N.m for LXM05BD10F1 at 1.5 A, 110...120 V, single phase; 1.4 N.m for LXM05BD10M2, 200...240 V, single phase; 1.4 N.m for LXM05CD10F1, 110...120 V, single phase; 1.4 N.m for LXM05CD10M2, 200...240 V, single phase; 1.24 N.m for LXM15LD13M3, 230 V, three phase; 1.4 N.m for LXM05AD10M3X, 200...240 V, three phase; 1.4 N.m for LXM05BD10M3X, 200...240 V, three phase; 1.4 N.m for LXM05CD10M3X, 200...240 V, three phase |
| Nominal output power | 150 W for LXM32.U90M2 at 3 A, 115 V, single phase; 300 W for LXM32.U45M2 at 1.5 A, 230 V, single phase; 150 W for LXM05AD10F1, 110...120 V, single phase; 150 W for LXM05BD10F1, 110...120 V, single phase; 150 W for LXM05CD10F1, 110...120 V, single phase; 150 W for LXM05CU70M2 at 1.5 A, 200...240 V, single phase; 270 W for LXM05AD10M2, 200...240 V, single phase; 270 W for LXM05BD10M2, 200...240 V, single phase; 270 W for LXM05CD10M2, 200...240 V, single phase; 270 W for LXM05AD10M3X, 200...240 V, three phase; 270 W for LXM05BD10M3X, 200...240 V, three phase; 270 W for LXM05CD10M3X, 200...240 V, three phase; 340 W for LXM15LD13M3, 230 V, three phase |
| Nominal torque | 0.49 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 0.45 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 0.43 N.m for LXM05AD10M2, 200...240 V, single phase; 0.43 N.m for LXM05BD10M2, 200...240 V, single phase; 0.43 N.m for LXM05CD10M2, 200...240 V, single phase; 0.46 N.m for LXM05AD10F1 at 1.5 A, 110...120 V, single phase; 0.46 N.m for LXM05BD10F1, 110...120 V, single phase; 0.46 N.m for LXM05CD10F1, 110...120 V, single phase; 0.46 N.m for LXM05CU70M2, 200...240 V, single phase; 0.41 N.m for LXM15LD13M3, 230 V, three phase; 0.43 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.43 N.m for LXM05BD10M3X, 200...240 V, three phase; 0.43 N.m for LXM05CD10M3X, 200...240 V, three phase |
| Nominal speed | 3000 rpm for LXM32.U90M2 at 3 A, 115 V, single phase; 6000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase; 3000 rpm for LXM05AD10F1, 110...120 V, single phase; 3000 rpm for LXM05BD10F1, 110...120 V, single phase; 3000 rpm for LXM05CD10F1, 110...120 V, single phase; 3000 rpm for LXM05CU70M2 at 1.5 A, 200...240 V, single phase; 6000 rpm for LXM05AD10M2, 200...240 V, single phase; 6000 rpm for LXM05BD10M2, 200...240 V, single phase; 6000 rpm for LXM05CD10M2, 200...240 V, single phase; 6000 rpm for LXM05AD10M3X, 200...240 V, three phase; 6000 rpm for LXM05BD10M3X, 200...240 V, three phase; 6000 rpm for LXM05CD10M3X, 200...240 V, three phase; 8000 rpm for LXM15LD13M3, 230 V, three phase |
| Product compatibility | LXM05AD10F1 at 110...120 V single phase; LXM05AD10M2 at 200...240 V single phase; LXM05BD10F1 at 110...120 V single phase; LXM05BD10M2 at 200...240 V single phase; LXM05CD10F1 at 110...120 V single phase; LXM05CD10M2 at 200...240 V single phase; LXM05CU70M2 at 200...240 V single phase; LXM32.U90M2 at 115 V single phase; LXM32.U45M2 at 230 V single phase; LXM05AD10M3X at 200...240 V three phase; LXM05BD10M3X at 200...240 V three phase; LXM05CD10M3X at 200...240 V three phase; LXM15LD13M3 at 230 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 32; Lexium 05; Lexium 15 |
| supply voltage max | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 1.4 A |
| maximum continuous power | 0.45 W |
| Maximum current Irms | 6.2 A for LXM15LD13M3; 5.4 A for LXM05AD10F1; 5.4 A for LXM05CU70M2; 5.4 A for LXM05AD10M2; 5.4 A for LXM05AD10M3X; 5.4 A for LXM05BD10F1; 5.4 A for LXM05BD10M2; 5.4 A for LXM05BD10M3X; 5.4 A for LXM05CD10F1; 5.4 A for LXM05CD10M2; 5.4 A for LXM05CD10M3X; 5.4 A for LXM32.U90M2; 4.5 A for LXM32.U45M2 |
| Maximum permanent current | 5.4 A |
| Switching frequency | 8 kHz |
| Second shaft | Without second shaft end |
| Shaft diameter | 9 mm |
| Shaft length | 20 mm |
| Key width | 12 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 0.8 N.m holding brake |
| Motor flange size | 55 mm |
| Number of motor stacks | 1 |
| Torque constant | 0.36 N.m/A at 120 °C |
| Back emf constant | 22 V/krpm at 120 °C |
| Number of motor poles | 3.0 |
| Rotor inertia | 0.0803 kg.cm² |
| Stator resistance | 12.2 Ohm at 20 °C |
| Stator inductance | 10.85 mH at 20 °C |
| Stator electrical time constant | 1.7 ms at 20 °C |
| Maximum radial force Fr | 170 N at 8000 rpm; 180 N at 7000 rpm; 190 N at 6000 rpm; 200 N at 5000 rpm; 220 N at 4000 rpm; 240 N at 3000 rpm; 270 N at 2000 rpm; 340 N at 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 10 W |
| Type of cooling | Natural convection |
| Length | 159 mm |
| Centring collar diameter | 40 mm |
| Centring collar depth | 2 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 63 mm |
| Net weight | 1.3 kg |
| Sizing reference | BSH0551T |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 5.4 A |
| Inertia | 0.021 kg.cm² of brake; 0.059 kg.cm² of motor |
