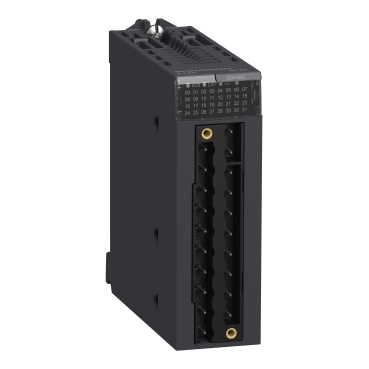

discrete mixed IO module, Modicon X80, 8 inputs, 8 outputs, 24V DC positive
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon X80 modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.12 kg |
Shipping & availability
When can BMXDDM16022 be shipped?
BMXDDM16022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXDDM16022 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXDDM16022 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXDDM16022, subject to availability and destination.
This discrete mixed I/O module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels and 8 output channels and it is supplied with 24V DC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It offers 447581 hours of MTBF. This product is IP20 rated and offers 444196 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Specifications
| Range of product | Modicon X80 |
| Product or component type | Discrete I/O module |
| Discrete input number | 8 |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 3.5 mA |
| Discrete output number | 8 |
| Discrete output type | Solid state |
| Discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2, With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 3 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Current per channel | 0.625 A |
| Maximum current per module | 5 A |
| Maximum leakage current | 0.5 mA at state 0 |
| Maximum voltage drop | <1.2 V at state 1 |
| Input impedance | 6800 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3.7 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| Typical current consumption | 79 mA at 3.3 V DC, 59 mA at 24 V DC |
| Current consumption | <= 111 mA at 3.3 V DC, <= 67 mA at 24 V DC |
| MTBF reliability | 450000 H |
| Protection type | 1 external fuse per group of input channel0.5 A fast blow, overvoltage protection on output, reverse polarity protection on input, reverse polarity protection on output |
| Output overload protection | With current limiter, With electronic circuit breaker 1.5 In < Id < 2 In |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | < 14 V DC preactuator fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC sensor OK |
| Maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | >= 48 Ohm |
| Status LED | 1 LED (green) module operating (RUN), 1 LED per channel (green) channel diagnostic, 1 LED (red) module error (ERR), 1 LED (red) module I/O |
| Net weight | 0.115 kg |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground, 1500 V AC at 50/60 Hz 1 minute, output/internal logic, 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of inputs and outputs |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | Standard version |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 11.000 cm |
| Package 1 Length | 11.700 cm |
| Package 1 Weight | 142.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.490 kg |
| Warranty (in months) | 18 |
