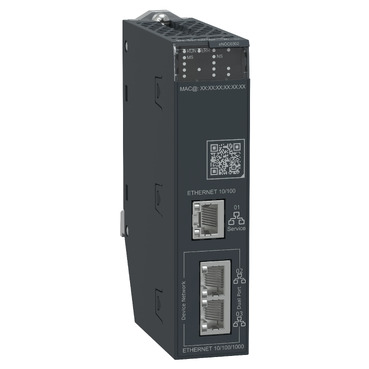

Schneider Electric BMENOC0302
Communication module, Modicon M580, performance, Ethernet IP/Modbus TCP
- MPN
- BMENOC0302
- EAN
- 3606485871417
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMENOC0302?
This communication module is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC). This module acts as an interface between the M580 PLC and other Ethernet network devices via the Modbus/TCP and EtherNet/IP communication protocols. This module provides large IO Scan data sizes and high-performance data exchange efficiency. It also has the best cybersecurity features and can extend to more modules in the rack. The Modicon M580 automation platform complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. It comes with 3x RJ45 Ethernet ports and 1Gbps speed for device network ports. It offers communication services such as bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator and embedded multiport switch services etc. Its dimensions are 32mm (width) 131mm (height) 86mm (depth) and weighs 0.393Kg. It complies with ODVA-certified EtherNet/IP protocol. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energy and Chemicals, and Data centers. This product complies with CE, UL, RCM, EAC, and UKCA standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications. This connection sub-base is compatible with the entire range of M580 CPUs (standalone and HSBY) and must be installed on a BMEXBPxxx - Ethernet + X-bus rack. The module is delivered in 1 packing unit. It can be installed in any X80 Ethernet backplane dual-port slot in the head rack of a Modicon M580 ePAC system. This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data.
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Device application | Process and control communication module |
| Product compatibility | Modicon M580 standalone CPU (BMEP58…..), Modicon M580 Redundant CPU (BMEH58…..) |
| Mounting location | Main rack |
| Backplane slot location | Ethernet + X-bus Slot |
| Maximum number of modules per rack | 6 |
| Supply | Internal power supply via rack |
| Integrated connection type | 2 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbit/s, transmission mode: double shielded twisted pair, 1 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair |
| Exchange mode | Half duplex and full duplex |
| Transmission support medium | Ethernet backplane |
| Communication service | Bandwidth management, FDR server, SNMP network administrator, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, Port mirroring, Embedded multiport switch |
| Cybersecurity | Secure communication (HTTPS), Certificate based authentication, System hardening, Role-based access control, Syslog protocol support, IPSec (initiator and responder role), Achilles level 2 tested, SNMP logging |
| Function available | Hot swappable module, Advanced diagnostic information (DDT, web pages, Modbus TCP and EIP Objects), SCADA connection through Modbus TCP |
| Web server | Advanced |
| Current consumption | 155 mA at 24 V DC |
| Local signalling | 1 LED (green) for processor running (RUN), 1 LED (red) for processor or system fault (ERR), 1 LED (green/red) for ETH MS (Ethernet port configuration status), 1 LED (green/red) for Eth NS (Ethernet network status) |
| Width | 32 mm |
| Height | 131 mm |
| Length | 86.05 mm |
| Net weight | 0.4 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m, 2000 m...5000 m with derating factor |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| Marking | CE |
| Product certifications | CE, RCM, CULus, UKCA |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G, EN 50121-3-2, EN 50121-4, EN 50121-5, EN 50155 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 554.000 g |
| Package 2 | 8 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.901 kg |
