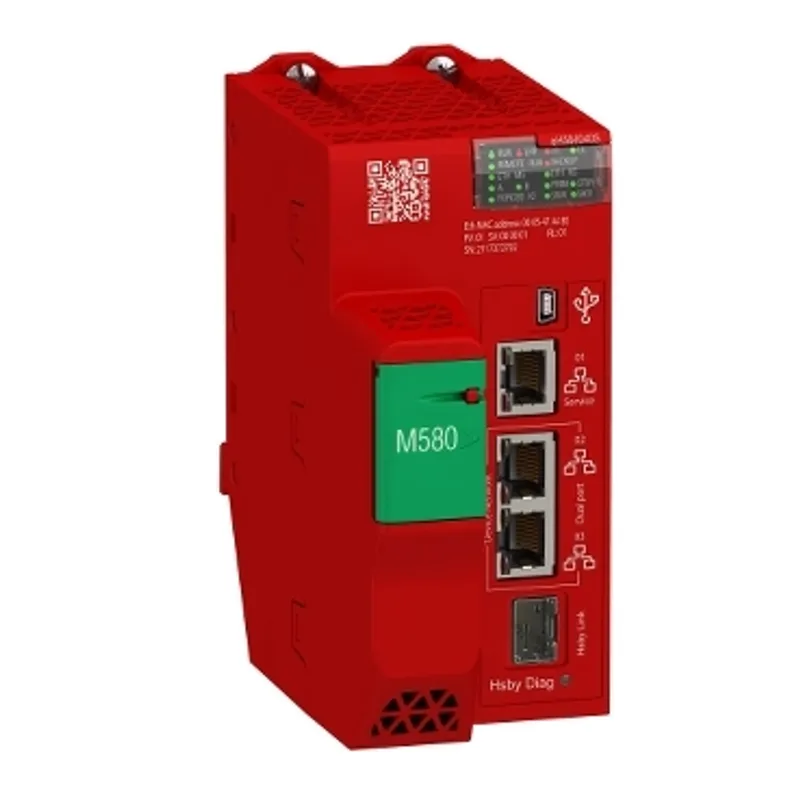

Schneider Electric BMEH584040S
Redundant safety processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 & Quantum IO
- MPN
- BMEH584040S
- EAN
- 3606489562526
- Category
- Modicon M580
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMEH584040S?

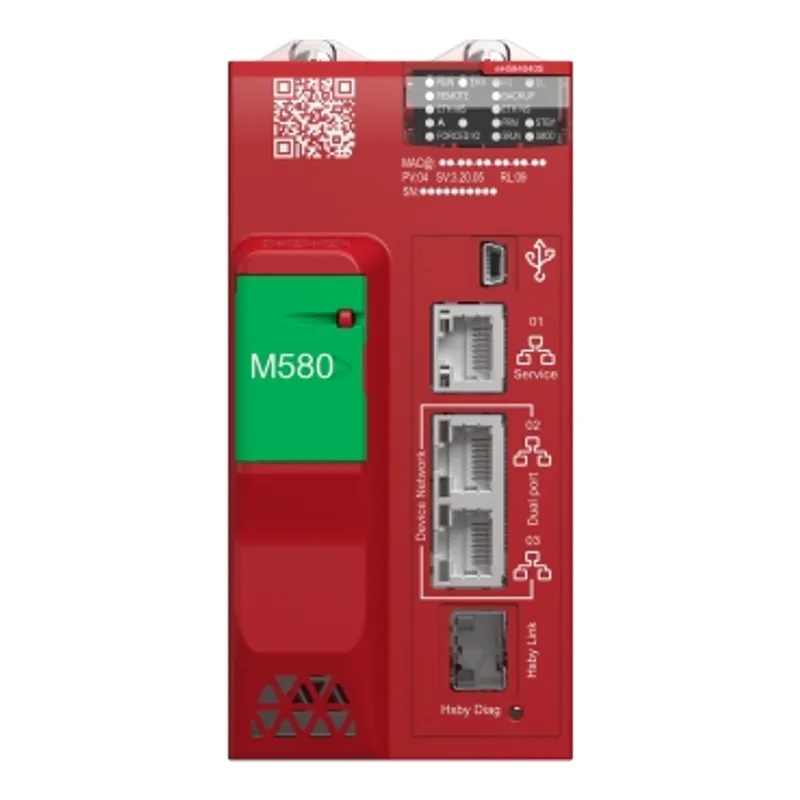

"This redundant Safety processor is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet." "This product offers a maximum of 16 remote rack configuration with up to 16384 discrete I/O channels and 4096 analog I/O channels." "This Safety product is coated and is compatible with a temperature range from -25°C to +60°C/-13°F to 140°F." "This controller can help hybrid manufacturers to achieve better, measurable, earlier ROI and Up to 100% returns on their project investments in less than three months." "It is equipped with 1 Ethernet port for service, 2 Ethernet ports for ring remote I/O network (Remote IO racks only) and 1 USB type mini B for programming console." "It has an integrated RAM of 16MB for program, 10kb for system memory, expandable flash of 4GB for data storage and 16MB for program Safety and 1024kb for data Safety. This product is IP20 rated and offers 638044 hours of MTBF." "The new grey design is applied for this module with a weight of 0.849kg and its new dimensions 64x130x135mm." "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product complies with CE, UL, CSA, RCM, EAC, UKCA, ATEX/IECEx zone 2/22, and TUV/IEC61508/SIL3 standards and is certified for Power Generation, Merchant Navy, Railway and Hazardous areas applications." "This processor is compatible with Modicon X80 and Quantum Modules and with RJ45 (490NAC0100) and FO singlemode (490NAC0201) connectors." "The CPU must be installed in the rack slots marked 00 and 01, with 2 screws on top of the CPU to maintain the module on the rack." "This product can be used in combination with Modicon X80 (I/O, backplane, cable) and works with the EcoStruxure Control Expert programming software." "Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data."
Specifications
Specifications
| Range of product | Modicon M580 |
| Product or component type | Redundant processor module |
| Impregnation material | Conformal coated |
| Number of racks | 1 |
| Application specific I/O | Counter, Motion control, SSI encoder, Accurate time stamping, Serial link, HART |
| Checks | Process control, Safety control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B, 1 Ethernet for HSBY port |
| Number of remote I/O station | 16.0 - 2 rack(s) per X80 and Quantum drops |
| Number of distributed equipment | 61.0 |
| Communication module processor capacity | 4.0 Ethernet communication module, 16 AS-Interface module |
| Communication service | DIO scanner, RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage, Integrated RAM, 10 kB for system memory, Integrated RAM, 16 MB for program process, Integrated RAM, 2048 kB for data process, Integrated RAM, 4 MB for program safety, Integrated RAM, 1024 kB for data safety |
| Application structure | 1 master task, 1 periodic fast task, 1 periodic safe task |
| Cybersecurity | Achilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, Audit trail, Embedded firewall, Firmware signature, Password protection, Port hardening, Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic, 40 Kinst/ms 100 % Boolean |
| Current consumption | 360 mA at 24 V DC |
| MTBF reliability | 650000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 15 gn |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m, 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive |
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22, TÜV |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G, IEC 60079-0, EN 50155, EN 50121-3-2, EN 50121-4, EN 50121-5, EN 45545-2, IEC 60571, IEC 62236-3-2, IEC 62234-4, IEC 62234-5 |
| Environmental characteristic | Hazardous location class I division 2, Gas resistant class Gx conforming to ISA S71.04, Gas resistant class 3C4 conforming to IEC 60721-3-3, Dust resistant class 3S4 conforming to IEC 60721-3-3, Sand resistant class 3S4 conforming to IEC 60721-3-3, Salt resistant level 2 conforming to IEC 68252, Mold growth resistant class 3B2 conforming to IEC 60721-3-3, Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Protective treatment | Conformal coating |
| Safety level | SIL 3 conforming to IEC 61508, SIL 3 conforming to IEC 61511, SILCL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1 category 4, SIL 4 conforming to EN 50126, SIL 4 conforming to EN 50128, SIL 4 conforming to EN 50129 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN), 1 LED (red) processor or system fault (ERR), 1 LED (red) I/O module fault (I/O), 1 LED (green) download in progress (DL), 1 LED (red) memory card or CPU flash fault (BACKUP), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green) peer processor running (REMOTE RUN), 1 LED (green) processor ID set to A (A), 1 LED (green) processor ID set to B (B), 1 LED (green) processor acting as Primary (PRIM), 1 LED (green) processor acting as Standby (STBY), 1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) processor in safety mode (SRUN), 1 LED (green) processor in maintenance mode (SMOD), 1 LED (green) Hot standby link status (Hsby Diag) |
| Net weight | 0.849 kg |
Packaging
| Package 1 | 1 PCE, 25.100 cm × 18.000 cm × 8.800 cm (L × W × H), 894.000 g |
| Package 2 | 6 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.846 kg |
