ATV9A0C20Q6Variable speed drive, Altivar Process ATV900, APM, single 690 V, 200 kW
Schneider Electric ATVCBL
Altivar Drive Systems Enclosure standard/CTO/ETO
- MPN
- ATVCBL
- EAN
- 3606481743190
- Category
- Altivar 71 Plus
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ATVCBL (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ATVCBL?
Schneider Electric ATVCBL — Altivar Drive Systems Enclosure standard/CTO/ETO (Altivar 71 Plus). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Altivar |
| Product or component type | Variable speed drive |
| Product specific application | Fan, pump, compressor, conveyor |
| Assembly style | In floor-standing enclosure with separate air flows |
| Provided equipment | Enclosure |
| IP degree of protection | IP54; IP21; IP31; IP41; IP42; IP55 |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Uc] control circuit voltage | 6...250 V |
| Network number of phases | 3 phases |
| Asynchronous motor control profile | Vector control with sensor; Closed-loop control with encoder; Sensorless flux vector control; Voltage/frequency ratio (V/f) |
| Synchronous motor control profile | Closed-loop control with encoder; Voltage/frequency ratio (V/f) |
| Display type | LCD display for operation function, status and configuration |
| Output voltage | 0...100 % power voltage |
| Nominal switching frequency | 2.4...16 kHz |
| Speed drive output frequency | 0.5…399 Hz closed-loop control with encoder |
| Overload withstand | 1.2...1.6 In, 2...60 s |
| Continuous output current | 116…2916 A (standard overload) |
| Efficiency | 96 % (advanced) |
| Communication port protocol | Human machine interface: Modbus with 2-wire RS485 - RJ45; Profibus with - SUB-D 9; DeviceNet with - SUB-D 9 |
Complementary
| Product destination | asynchronous motors |
| Electrical connection | Bar entry from the bottom or from the top (L1/R, L2/S, L3/T) |
| Input type | Rectifier bridge |
| Output type | Transistor IGBT |
| Acceleration and deceleration ramps | Linear from 0...3200 s |
| Protection type | Drive: overcurrent; Drive: overvoltage; Drive: undervoltage; Drive: controller shutdown; Drive: cooling fan stop; Drive: overload; Drive: over temperature protection; Drive: communication failure; Drive: phase loss |
| Frequency resolution | Output: 0.01 Hz |
| Supply | External supply; Internal supply |
| Analogue input type | software-configurable current: 0...20 mA/4...20 mA 24 V max |
| Analogue output type | Software-configurable voltage: 0...10 V DC; Software-configurable current: 0...20 mA/4...20 mA DC |
| Discrete output number | 20; 6 |
| Isolation | Electrical between power and control |
| Operating position | Vertical +/- 10 degree |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ATVCBL: frequently asked questions
Can I still buy the ATVCBL now that it is discontinued?
Yes. Schneider Electric has discontinued the ATVCBL, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can ATVCBL be shipped?
ATVCBL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ATVCBL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ATVCBL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ATVCBL, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

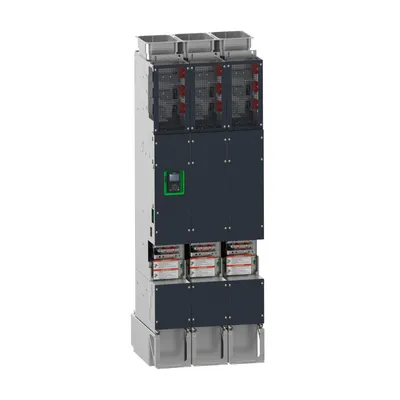

ATV9A0C50Q6Variable speed drive, Altivar Process ATV900, APM, single 690 V, 500 kW
