connection sub-base ABE7 - for distribution of 4 analog channels protected
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon ABE7 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.18 kg |
Shipping & availability
When can ABE7CPA410 be shipped?
ABE7CPA410 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7CPA410 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7CPA410 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7CPA410, subject to availability and destination.

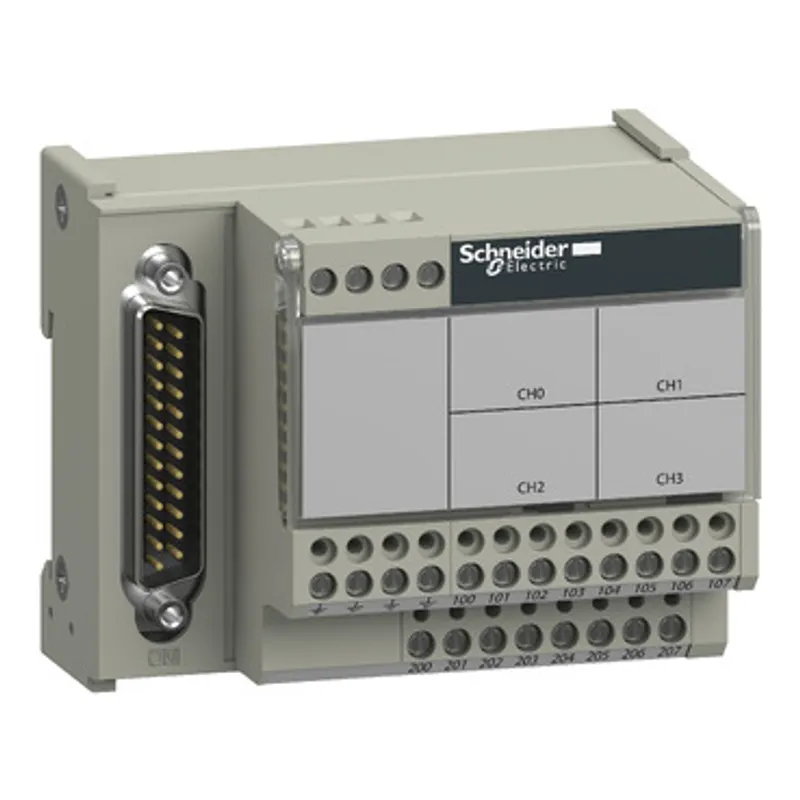

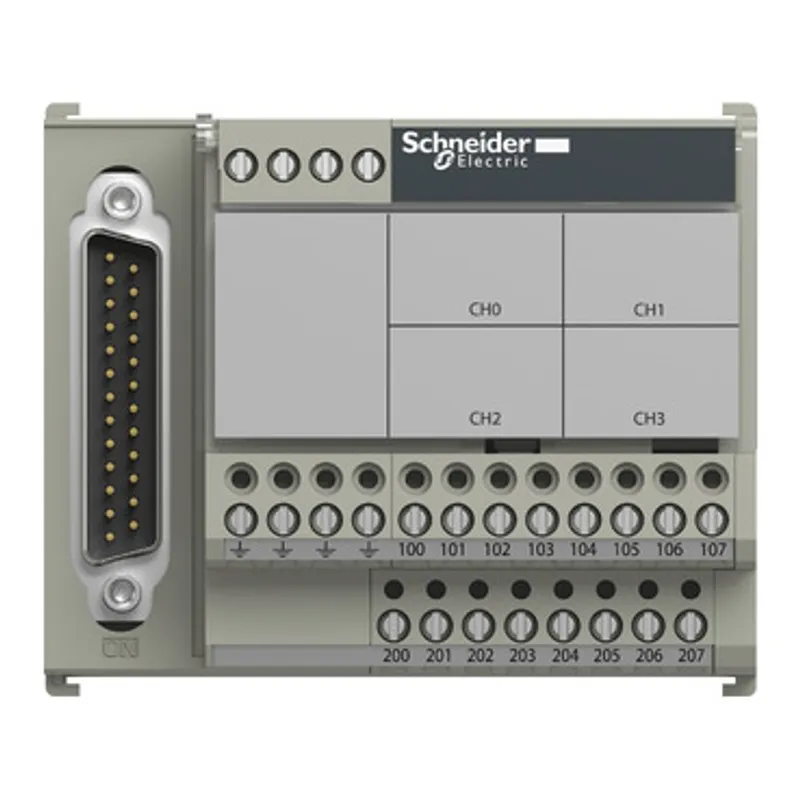

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. It is an analog input sub-base. This connection sub-base allows connection of 4 current/voltage inputs, with provision and distribution of 4 isolated protected power supplies for the current loop inputs. This product is designed to simplify I/O connection to a PLC within a control panel, and connects to channels with HE 10 and SUB-D connectors. It is equipped with 25-way SUB-D connector. It is an IP2x rated product. It measures 83mm wide, 67mm deep, 70mm high, and weighs 0.180kg. It is suitable for all types of industrial applications managed with Modicon M340 controllers. This sub-base is certified by GL, CSA, DNV, BV, LROS, UL. This kit is compatible with Modicon X80 I/O modules or Modicon M340 controllers. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Product or component type | Connection sub-base for analogue channels |
| Number of channels | 4 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, Screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, Screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, Screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Function of module | Distribution of supply and 4 analogue channels protected isolated, compatible with Modicon M340 |
| Product compatibility | Modicon M340 BMXAMI0410 |
| Connection to PLC | SUB-D 25 |
| Fixing mode | By clips (35 mm symmetrical DIN rail), By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage | 2000 V terminals/mounting rails |
| Installation category | II conforming to IEC 60664-1 |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight | 0.18 kg |
| Product certifications | DNV, UL, GL, CSA |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation | 0…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -40…80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 222.000 g |
| Warranty (in months) | 18 |
