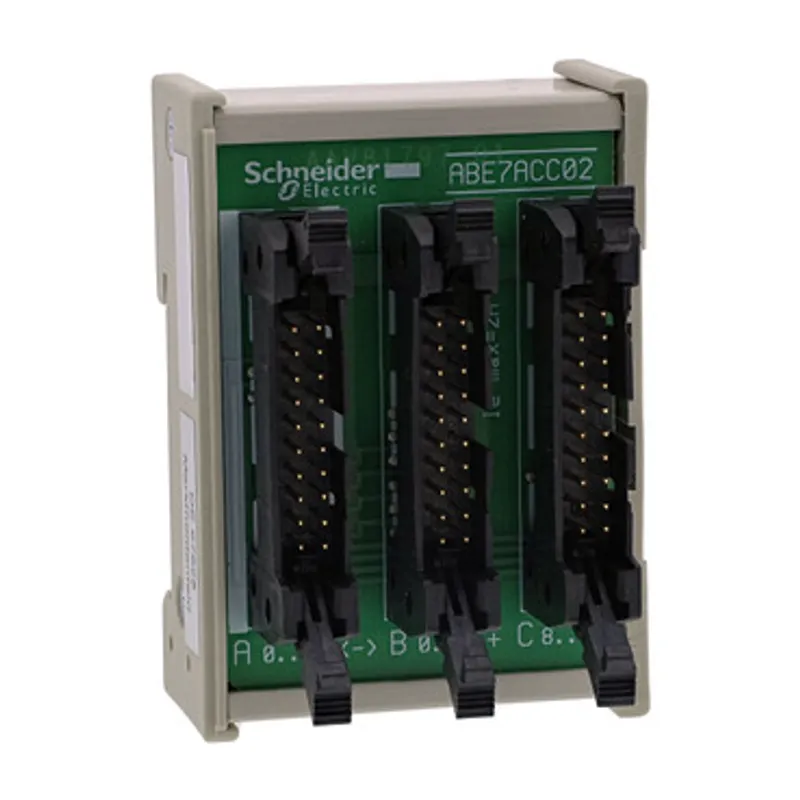

Schneider Electric ABE7ACC02
Connection sub-base accessory - splitter sub-base - 16 channels
- MPN
- ABE7ACC02
- EAN
- 3389110544824
- Category
- Modicon ABE7
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric ABE7ACC02?
"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a sub-base for splitting 16 into 2x 8 channels." "It is a connection accessory between PLC I/O module and ABE7 I/O sub-bases." "This sub-base enables to split 16 channels in 2X 8 channels." "It is furnished with 3x HE10 connectors, 16 channels." "It weighs 0.075kg." "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "It is suitable for use with ABE7 sub-bases." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."
Specifications
Specifications
| Range of product | Modicon ABE7 |
| Accessory / separate part designation | Splitter sub-base |
| Accessory / separate part type | Splitter sub-base |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Connection sub-base |
| Number of channels | 16 |
| Quantity per set | Set of 1 |
| Channel splitting | 2 x 8 |
| Net weight | 0.075 kg |
Packaging
| Package 1 | 1 PCE, 5.500 cm × 7.800 cm × 5.800 cm (L × W × H), 77.000 g |
| Package 2 | 30 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.801 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ABE7ACC02: frequently asked questions
When can ABE7ACC02 be shipped?
ABE7ACC02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ABE7ACC02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ABE7ACC02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ABE7ACC02, subject to availability and destination.
