Schneider Electric 31074

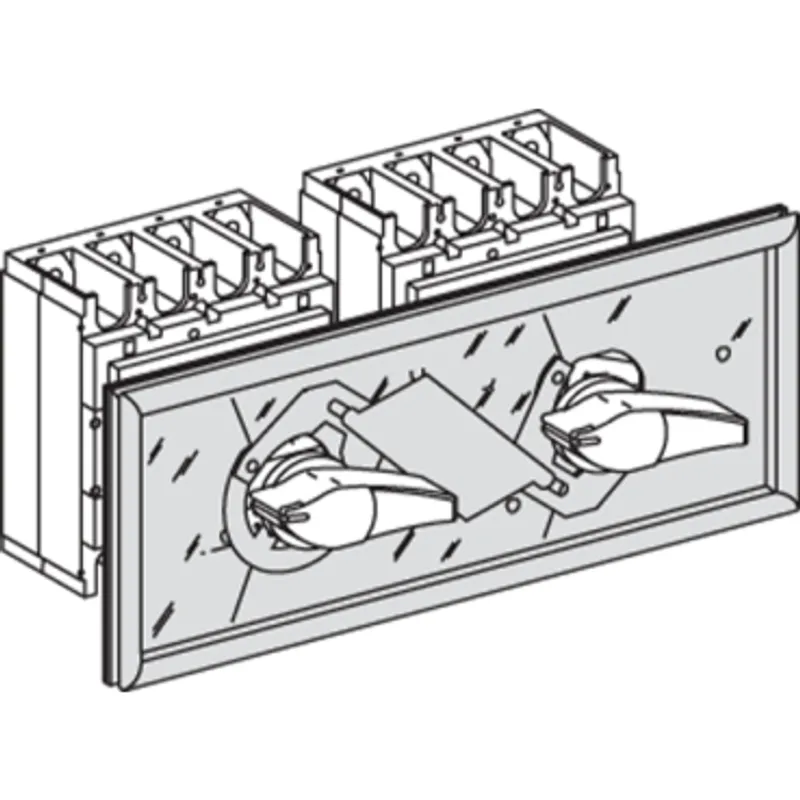

Interlocking for devices with direct/extended rotary handle, 320 to 630 A
- MPN
- 31074
- EAN
- 3303430310747
- Category
- ComPact INS/INV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric 31074?
It is an extended red rotary handle for Compact INS320 to 630 and Compact INV320 to 630 switch disconnectors. It is suitable for isolation and it is used for emergency-off applications. This rotary handle is a front control accessory. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The degrees of protection are IP55 and IK08.
Specifications
Specifications
| Range of product | INV320...630, INSJ400, INS320...630 |
| Range | ComPact |
| Product or component type | Interlock |
| Accessory / separate part category | Interlocking accessory |
| Range compatibility | ComPact ComPacT INS switch disconnector, ComPact Compact INV switch disconnector |
| Poles description | 4P, 3P |
| Source-changeover interlock | Manual |
| Interlocked device | INS320...630, INV320...630 |
| Control type | Direct rotary handle, Extended rotary handle |
| Mounting mode | Fixed |
| Product compatibility | Compact INV320...630, Compact INS320...630 |
Packaging
| Package 1 | 1 PCE, 45.0 cm × 21.5 cm × 3.0 cm (L × W × H), 770.0 g |
| Package 2 | 10 S04, 60.0 cm × 40.0 cm × 30.0 cm (L × W × H), 8.466 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
31074: frequently asked questions
When can 31074 be shipped?
31074 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 31074 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 31074 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 31074, subject to availability and destination.
