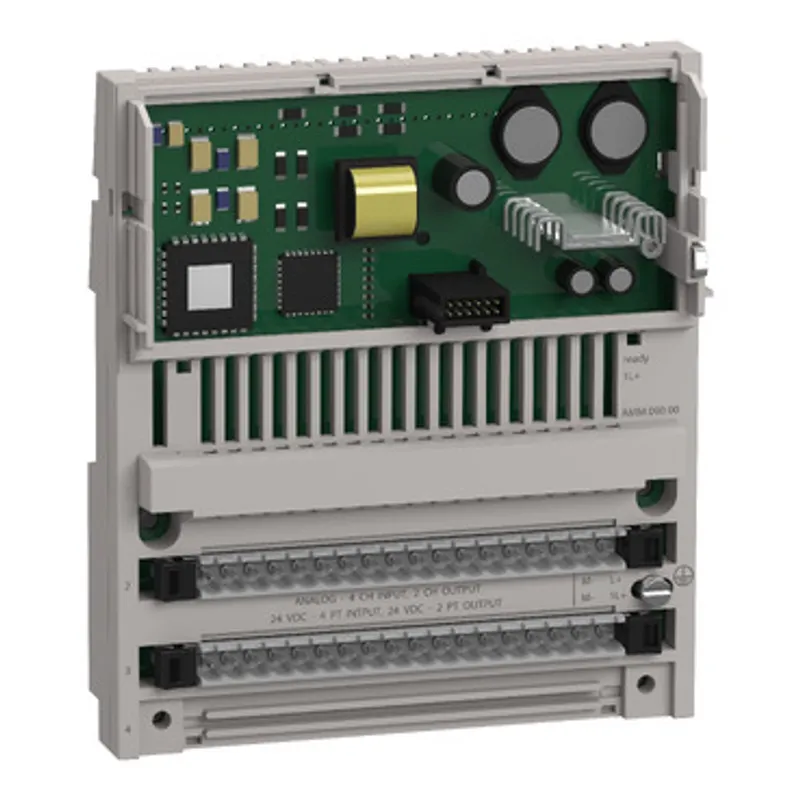

distributed analog/discrete I/O Modicon Momentum — photo 1 of 7

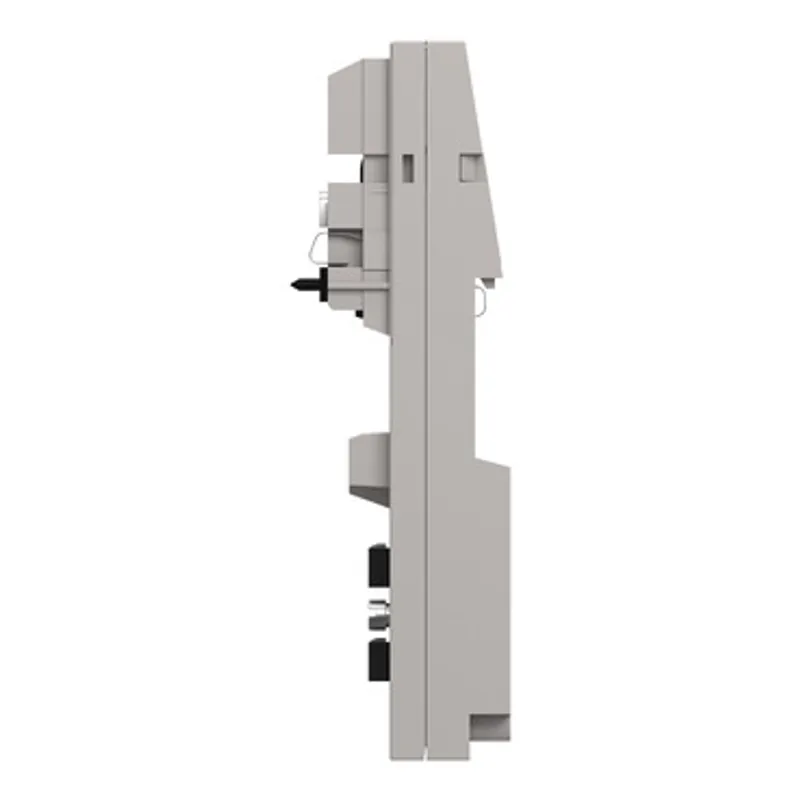

distributed analog/discrete I/O Modicon Momentum — photo 2 of 7

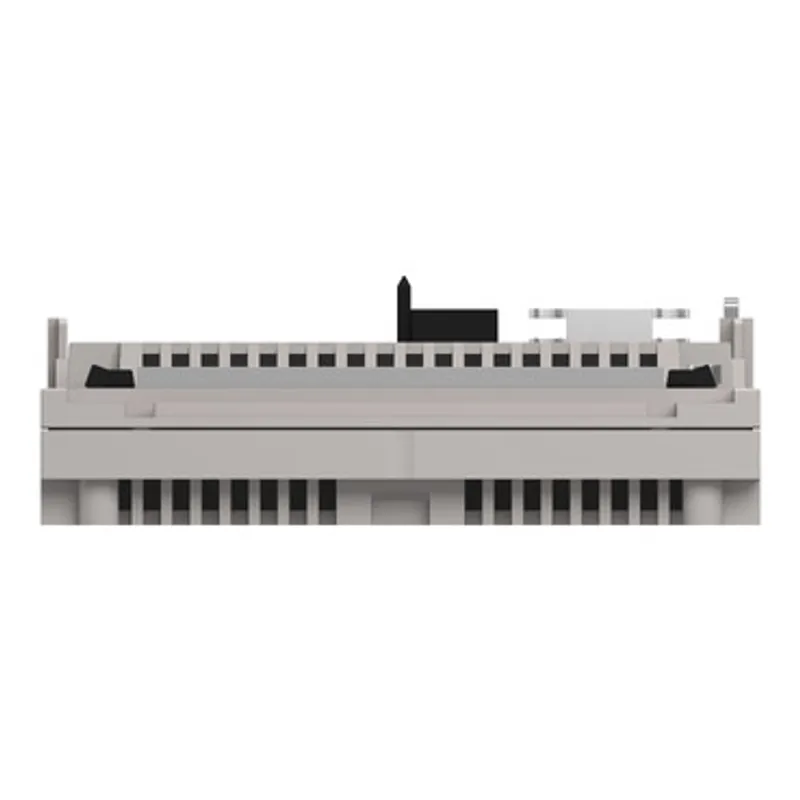

distributed analog/discrete I/O Modicon Momentum — photo 3 of 7

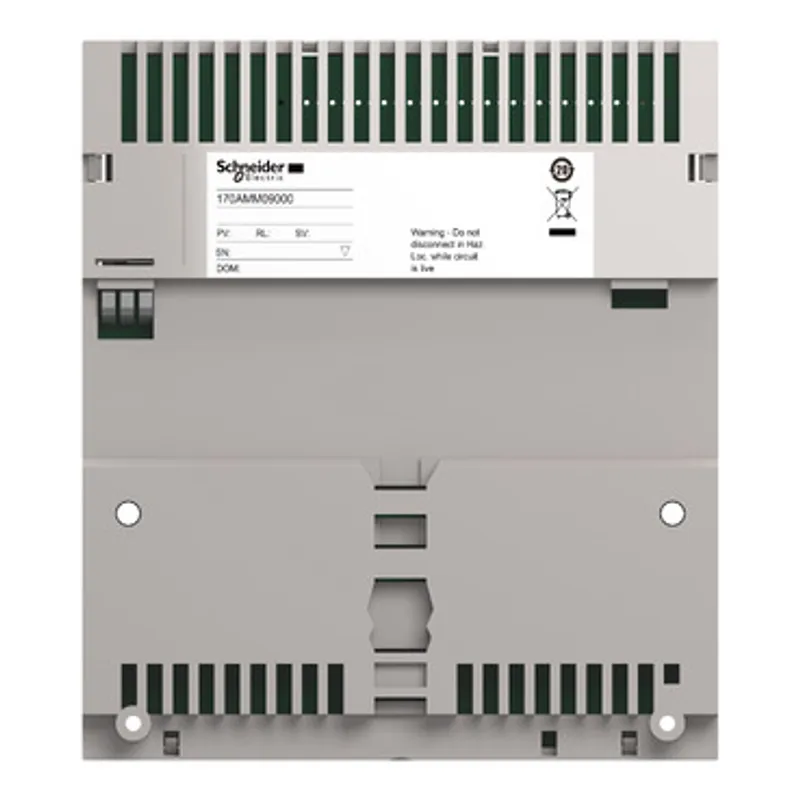

distributed analog/discrete I/O Modicon Momentum — photo 4 of 7

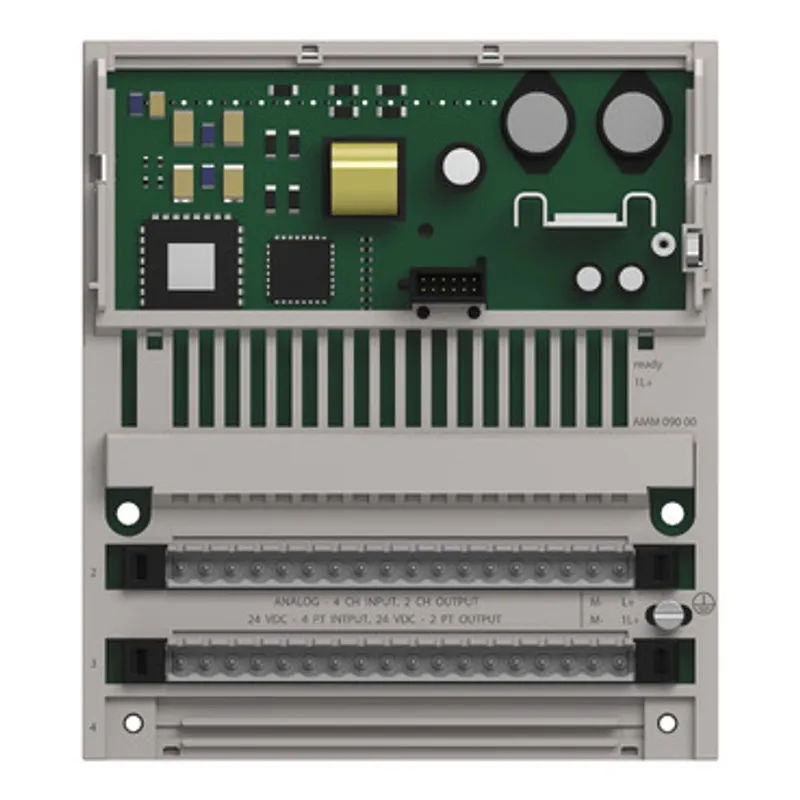

distributed analog/discrete I/O Modicon Momentum — photo 5 of 7

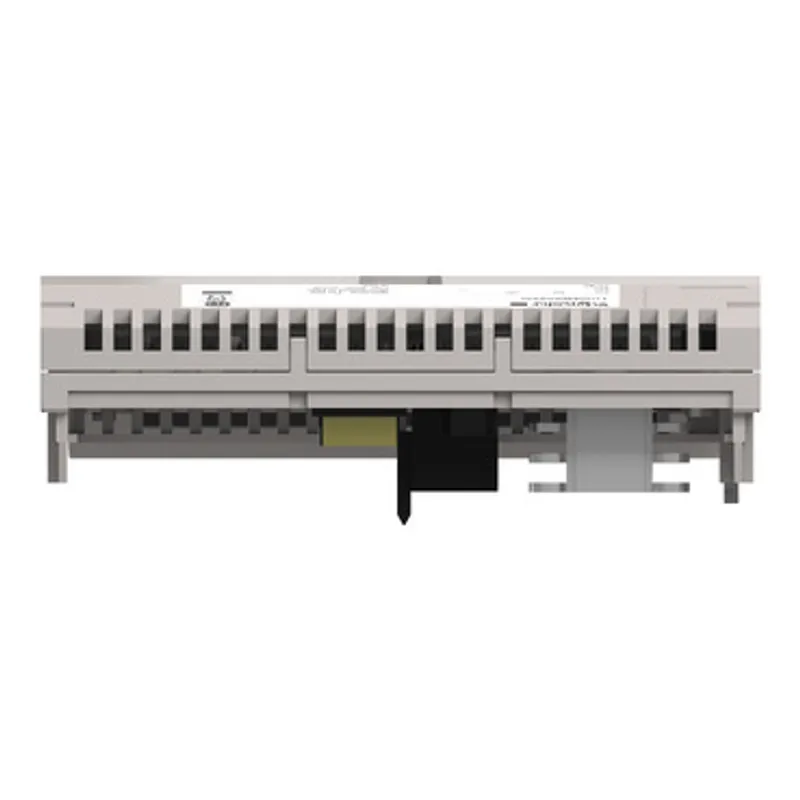

distributed analog/discrete I/O Modicon Momentum — photo 6 of 7

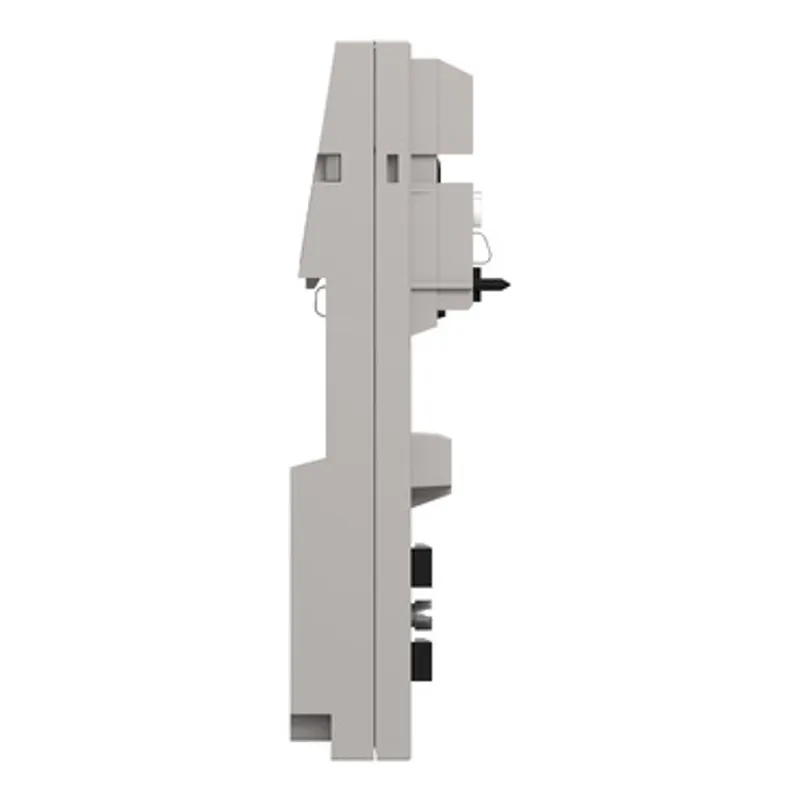

distributed analog/discrete I/O Modicon Momentum — photo 7 of 7

Available on request

Schneider Electric 170AMM09000 – distributed analog/discrete I/O Modicon Momentum

MPN: 170AMM09000 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Momentum
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.24 kg
UPC / EAN	3595861000292
Recommended replacement	NTSAMI0420K, NTSAMO0210K, NTSDDO0212HK
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 170AMM09000 be shipped?

170AMM09000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170AMM09000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170AMM09000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170AMM09000, subject to availability and destination.

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Range of product	Modicon Momentum automation platform
Product or component type	Analogue,discrete I/O base
Group of channels	1 group of 2 discrete outputs, 1 group of 4 discrete inputs, 1 group of 4 analog differential inputs, 1 group of 2 analog outputs
Analogue input range	+/- 10 V, +/- 20 mA, +/- 5 V, 1...5 V, 4...20 mA
Analogue input type	Differential
Analogue input resolution	12 bits 1...5 V, 12 bits 4...20 mA, 13 bits +/- 20 mA, 13 bits +/- 5 V, 14 bits +/- 10 V
Discrete input voltage	24 V DC
Analogue output range	+/- 10 V 12 bits, 0...20 mA 12 bits
Discrete output voltage	<= 30 V
Output short-circuit protection	With discrete output
Output overload protection	With discrete output
Discrete input number	4 conforming to IEC 1131-2 Type 1
[Us] rated supply voltage	24 VDC
Conversion consistency	+/- 0.02 % +/- 10 V analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % 4...20 mA analogue input circuit
Common mode rejection	> 54 dB analogue input circuit
Input voltage limits	< 30 V
Discrete input logic	Positive
Voltage state 0 guaranteed	-3...5 V for discrete input
Voltage state 1 guaranteed	11...30 V for discrete input
Current state 0 guaranteed	<= 1.2 mA (discrete input)
Current state 1 guaranteed	>= 2.5 mA (discrete input)
Input overvoltage protection	-50…50 V <= 100 s analogue input circuit, -30…30 V 24 V analogue input circuit
Input resistance	1 MOhm analogue input circuit, 4 kOhm discrete input
Output load	<= 600 Ohm 0...20 mA analogue output, >= 3 kOhm +/- 10 V analogue output
Conversion time	1 ms analogue output, 10 ms analogue input circuit
Conversion error	+/- 0.35 % +/- 10 V 25 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.70 % 0...20 mA 60 °C analogue output, 0,0008 +/- 10 V 25 °C analogue input circuit, 0,0015 +/- 10 V 60 °C analogue input circuit, 0,0016 +/- 20 mA 25 °C analogue input circuit, 0,0016 +/- 5 V 25 °C analogue input circuit, 0,0016 1...5 V 25 °C analogue input circuit, 0,0016 4...20 mA 25 °C analogue input circuit, 0,003 +/- 20 mA 60 °C analogue input circuit, 0,003 +/- 5 V 60 °C analogue input circuit, 0,003 1...5 V 60 °C analogue input circuit, 0,003 4...20 mA 60 °C analogue input circuit
Fail state	For analogue input circuit: hold, For analogue input circuit: reset to zero
Discrete output type	Transistor
Discrete output logic	Positive
Discrete output current	1 A per point, 2 A per group, 2 A per module
Maximum leakage current	1 mA DC 24 V discrete output
Maximum voltage drop	<0.5 V 1 A at state on discrete output
Operating rate	100 cyc/s resistive 1 A discrete output, 1000 cyc/h inductive 1 A discrete output, 8 cyc/s tungsten <2.4 W discrete output
Response time	< 0.1 ms from state 0 to state 1 for discrete output, < 0.1 ms from state 1 to state 0 for discrete output, 2.2 ms from state 0 to state 1 for discrete input, 3.3 ms from state 1 to state 0 for discrete input
Isolation voltage	500 V (duration = 1 min) between analogue I/O and operating voltage, 500 V (duration = 1 min) between operating voltage and I/O from ground
Maximum power dissipation in W	6 W
Marking	CE
Local signalling	8 LEDs for channel status
Electrical connection	2 connectors for removable terminal blocks
Current consumption	<= 350 mA at 24 V DC, 200 mA at 24 V DC
Depth	47.5 mm
Height	125 mm
Width	141.5 mm
Net weight	0.24 kg
Product certifications	UL, CSA, FM Class 1 Division 2
Protective treatment	TC
Resistance to electrostatic discharge	4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields	10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-40…85 °C
Relative humidity	95 % without condensation
Operating altitude	<= 5000 m

Packaging

Package 1	1 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 412.000 g
Package 2	10 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.780 kg
