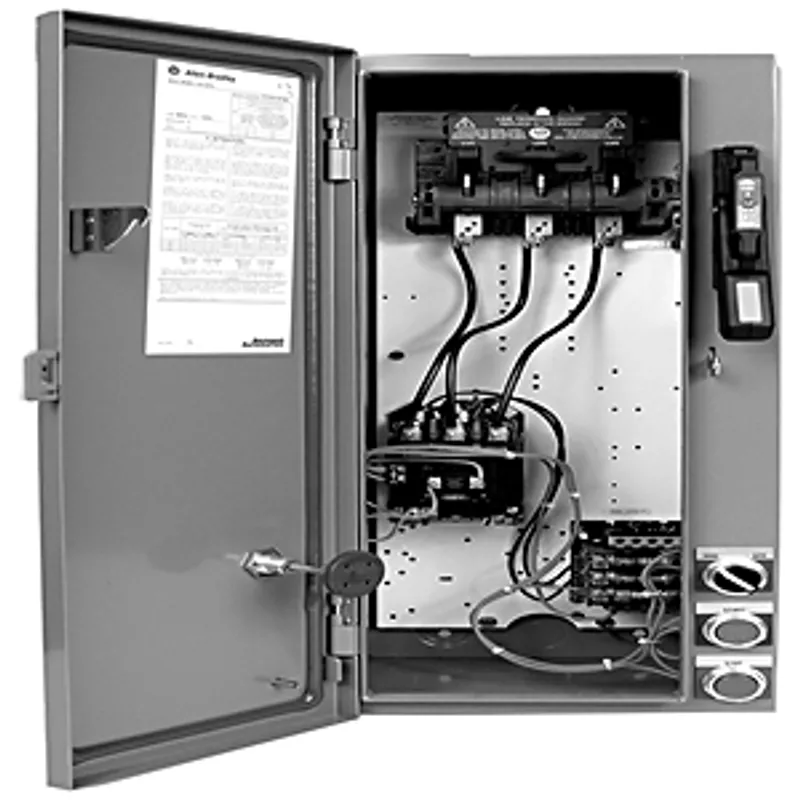

Allen-Bradley 502-BAB-1-4GR-6P-24R

NEMA Size 1 Combo Contact Disconnect

MPN
502-BAB-1-4GR-6P-24R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 502-BAB-1-4GR-6P-24R?

Allen-Bradley 502-BAB-1-4GR-6P-24R — NEMA Size 1 Combo Contact Disconnect. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Altitude10000 ft before derating
Auxiliary contact materialSilver
Available short circuit amperes RMS symmetrical100000 A
Capacitor switching kVAR13.5 kVAR @ 460V load voltage, 3-phase
Circuit closing inrush current peak including offset, max288 A
Coil operating limits85...110%
Continuous current27 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)1
Depth8.25 mm
Enclosure typeNEMA 1 general purpose
External reset possibletrue
Factory installed modelsTransformer with 2 primary & 1 sary fuse
Fuse clips30 A Class R
Heat dissipation5.9 W
Height27.5 mm
Load voltage460V
Mechanical life operations1.0E7
NEMA sizeSize 1
Number of auxiliary contacts, max8
Number of indicator lights2
Operating positionVertical
Operating time, drop-out14 ms
Operating time, pick-up22 ms
Operating volt amperes burdenSealed: 29VA, 60 Hz coils
Power contact materialSilver Alloy
Rated control supply voltage at AC 50 Hz110 V
Rated control supply voltage at AC 60 Hz120 V
Required torque on power terminal wire clamps and pressure connectors or lugs20 in-lb
Service limit current rating32 A
Suitable for emergency stoptrue
Transformer primary switching kVA rating8.5 kVA @ 460V load voltage, 3-phase (inrush current ≤20 times continuous current)
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of power terminalSaddle or wire clA
Voltage type for actuatingAC
Weight40 lb
Width10.5 mm
Wire sizeFor power terminals: 14...8 AWG
With fusetrue
With short-circuit releasetrue
With transformertrue

502-BAB-1-4GR-6P-24R: frequently asked questions

When can 502-BAB-1-4GR-6P-24R be shipped?

502-BAB-1-4GR-6P-24R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 502-BAB-1-4GR-6P-24R in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 502-BAB-1-4GR-6P-24R and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 502-BAB-1-4GR-6P-24R, subject to availability and destination.
