Pilz G1000044
PITgb VMCE
- MPN
- G1000044
- EAN
- 4046548106817
- Category
- Pushbutton unit PITgatebox
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz G1000044?

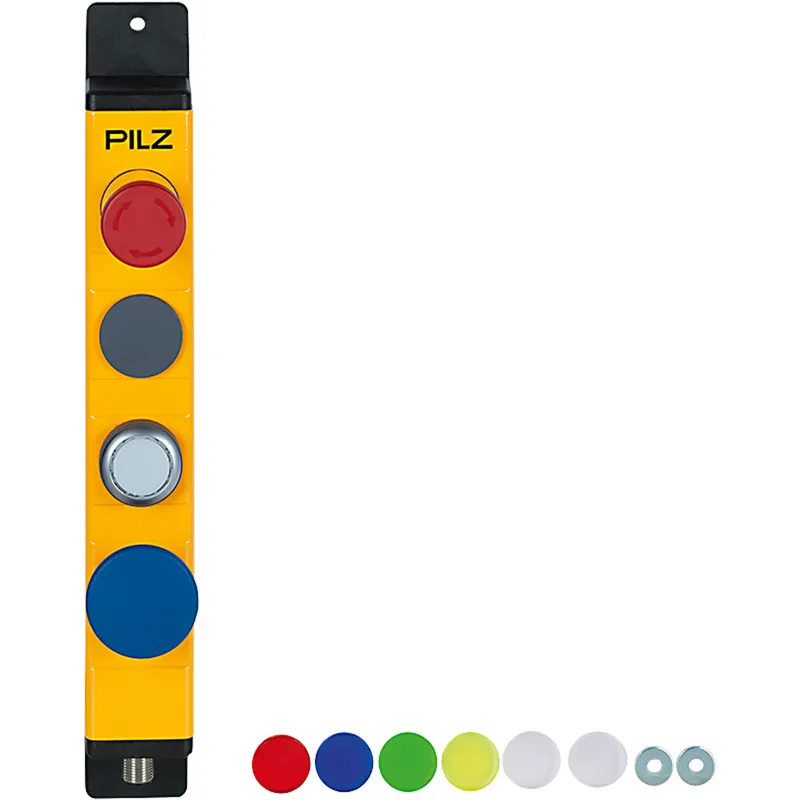

PITgatebox (pushbutton unit), housing with E-STOP (2 NC), 1 blue pushbutton, 1 indicator lamp, 1 blind plug, 12‑pin M12 male connector,incl. colour cap set
Specifications
General data
| Product ID (Pilz order number) | G1000044 |
| Approval | CE, UKCA, UL/cUL, EAC (Eurasian) |
| Self-monitored | no |
| Lamp | LED |
| Lamp colour | white |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 12 |
| Min. contact current | 1 |
Emergency stop
| Number, E-STOP N/C | 2 |
| Release type emergency stop | Turn release |
| Switch cap. E-STOP to standard | EN 60947-5-1 |
| Contact material E-STOP | Au |
Push button
| Contact material pushbutton | Ag |
PILZ push button
| Switch cap. p/b to standard | EN 60947-5-1 |
Environmental data
| Ambient temperature | -20 °C |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Clearance & creepage dist. to | EN 60947-1 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP65 |
| UL enclosure type | type 1 |
Mechanical data
| Mounting position | any |
| Connection type | M12, 12-pin male |
| Housing material | Zn |
| Height dimension | 293 mm |
| Width dimension | 40 mm |
| Depth dimension | 40 mm |
| Net weight | 800 g |
| Gross weight | 1200 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371290 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002034 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548106817 |
| Volume | 5.920 dm3 |
| Harmonized System Code | 85365019 |
| Quantity per packaging unit | 1 |
