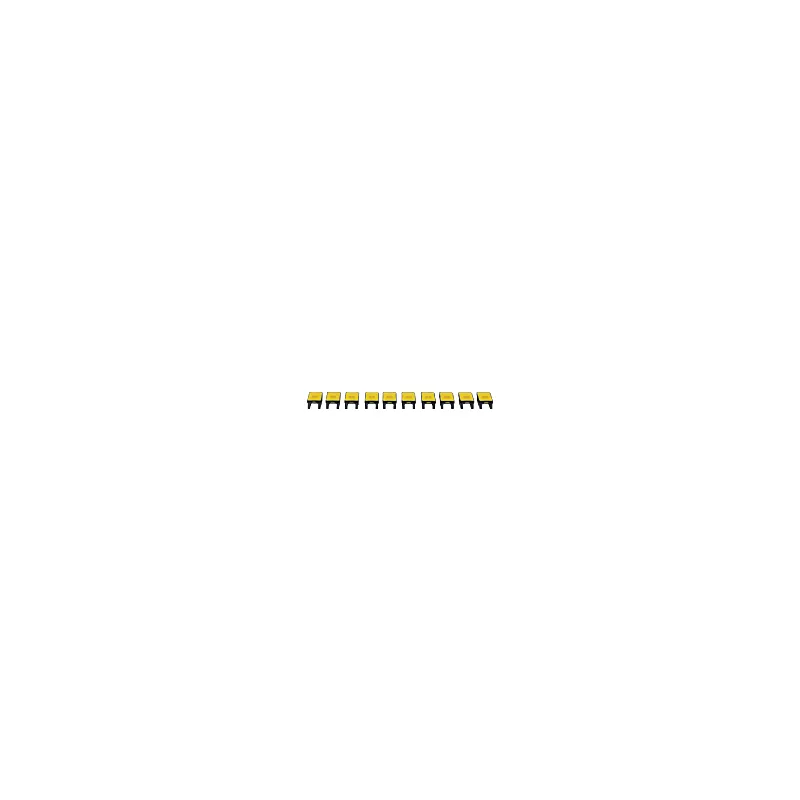

Pilz 779260 – PNOZ mm0.xp connector left (10 pcs)
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PNOZmulti Mini – compact controllers |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.03 kg |
| UPC / EAN | 4046548067538 |
Shipping & availability
When can 779260 be shipped?
779260 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 779260 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 779260 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 779260, subject to availability and destination.
Connector for connecting the modules on the left-hand side of the base unit PNOZmulti, yellow/black (10 pieces).
Specifications
General data
| Product ID (Pilz order number) | 779260 |
| Approval | - |
| Lifecycle | Active (current Pilz product) |
Mechanical data
| Shape of connector type 1 | straight |
| Net weight | 30 g |
| Gross weight | 35 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242292 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002584 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548067538 |
| Volume | 0.108 dm3 |
| Harmonized System Code | 85366990 |
| Quantity per packaging unit | 10 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
CAD & dimension drawings
| Electrical CAD Data: EPLAN P8 Macro | EDZ |
Certificates (1)
| Self Declaration (CQC) CCC_Declaration-of-exemption | PDF · 0.5 MB |
