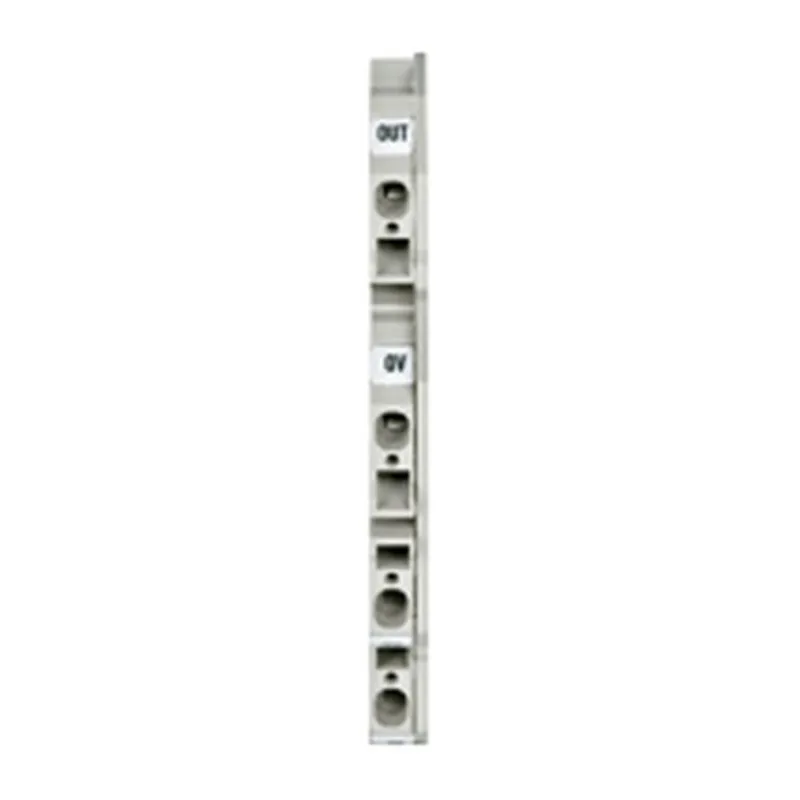

Pilz 774196
Terminal block filter 2
- MPN
- 774196
- Category
- Accessories PNOZmulti 2
Price and lead time confirmed within 1 business day
Discontinued by Pilz — we can still source the original 774196 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 774196?
Accessories for PNOZ, PNOZmulti and PSS, terminal block with filter for10 - 30 kOhm load range. NOTE: The product is discontinued. Follow-upproduct: 772291 terminal block filter 10 - 30 kOhm.
Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.
Specifications
General data
| Product ID (Pilz order number) | 774196 |
| Approval | CE, cULus Listed |
| Lifecycle | Discontinued (no longer manufactured by Pilz) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 0.2 |
Environmental data
| Ambient temperature | -10 … 55 °C |
Mechanical data
| Net weight | 15 g |
| Gross weight | 21 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-9.1 |
| ECLASS Reference Feature | 27379290 |
| ETIM Version | ETIM-7.0 |
| ETIM Reference Group | EG000019 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (8)
- Certificate (UL) NRNT7.E153882
- Type examination certificate (TÜV) M6A-020132-0225-R02
- Type examination certificate (TÜV) EU-ESD-050-2
- Type examination certificate (UKCA) UK-MAC000098-i01
- Type examination certificate (TÜV) M6A-020132-0284-R01
- Certificate (UL) NRNT.E153882
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
774196: frequently asked questions
Can I still buy the 774196 now that it is discontinued?
Yes. Pilz has discontinued the 774196, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 774196 be shipped?
774196 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 774196 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 774196 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 774196, subject to availability and destination.
