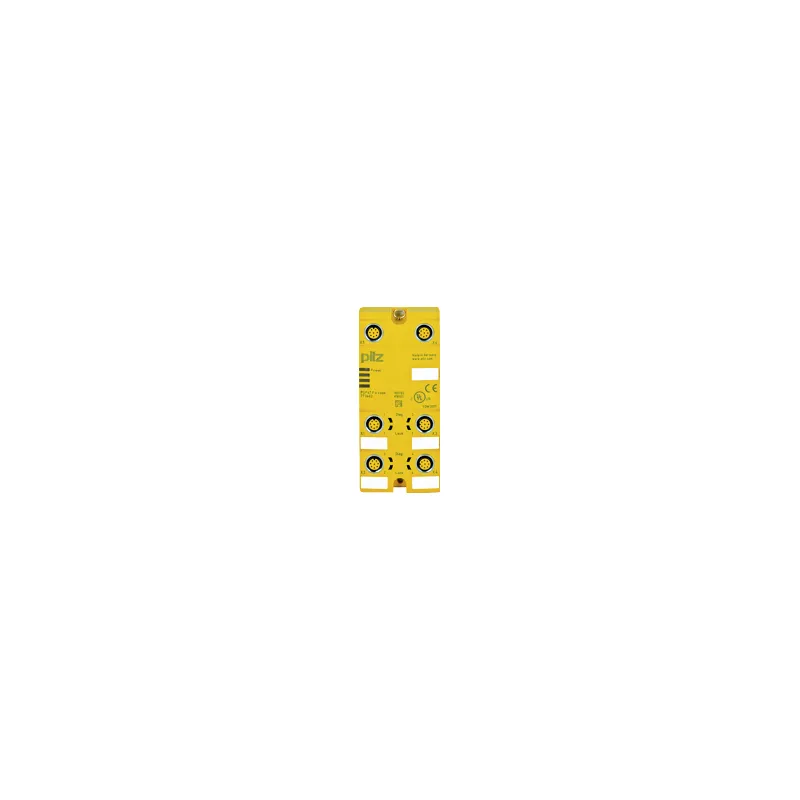

Pilz 773613 – PDP67 F 4 code VA
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Passive junction |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.24 kg |
| UPC / EAN | 4046548070873 |
Shipping & availability
When can 773613 be shipped?
773613 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773613 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773613 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773613, subject to availability and destination.
Decentralised passive distributor for connection of PSENcode, PSENslockand PSENini to a Pilz control system, max. 4 sensors, protection type IP67, stainless steel connections.
Specifications
General data
| Product ID (Pilz order number) | 773613 |
| Approval | CE, UKCA, cULus Listed, KOSHA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
Environmental data
| Climatic suitability to ... | EN 60068-2-2, EN 60068-2-1, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -40 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Briefly |
| Vibration to standard ... | EN 60068-2-6 |
| Clearance & creepage dist. to | EN 60664-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP67 |
Mechanical data
| Housing material upper part | PBT |
| Connection terminal | M12 1.4305 stainless steel |
| Terminal style | screw interlocked |
| Height dimension | 120 mm |
| Width dimension | 60 mm |
| Depth dimension | 20 mm |
| Net weight | 240 g |
| Gross weight | 295 g |
Environment
| REACh compliance | contains min. 1 SVHC-substance |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440108 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002585 |
| UNSPSC 25 | 39122214 |
| GTIN | 4046548070873 |
| Volume | 0.402 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet PDP67 F 4 code (VA) | PDF · 0.3 MB |
| Operat.Manual PDP67 F 4 code (VA) | PDF · 1.5 MB |
Certificates (3)
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| Type examination certificate (KOSHA) 2014-244 | PDF · 1.6 MB |
