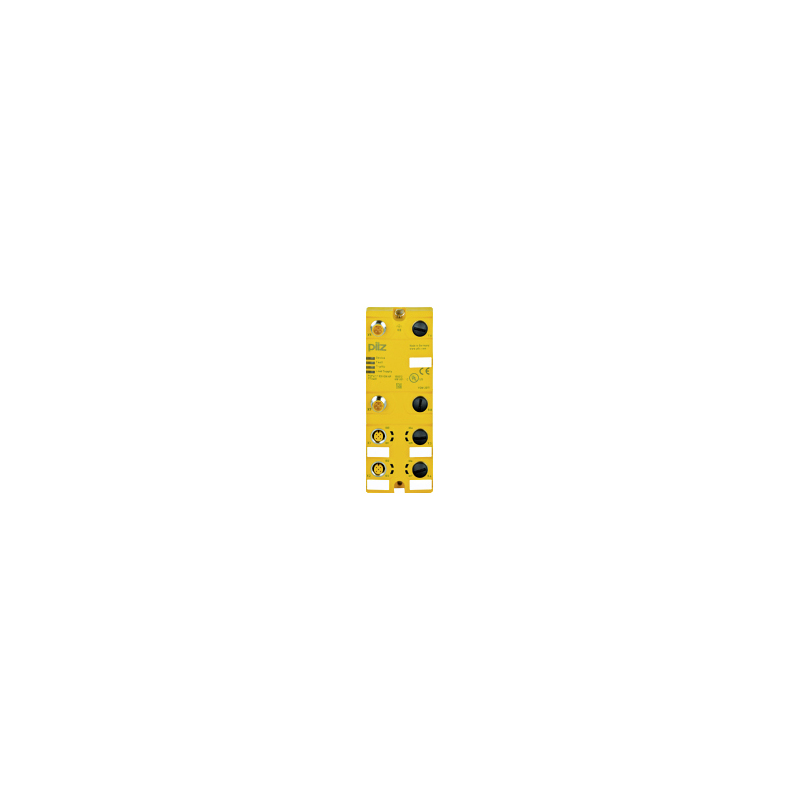

Pilz 773601 – PDP67 F 8DI ION HP
MPN: 773601 · Brand: Pilz
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | I/O Net p - I/O modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.32 kg |
| UPC / EAN | 4046548058918 |
Shipping & availability
When can 773601 be shipped?
773601 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 773601 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 773601 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 773601, subject to availability and destination.
Decentralised input module for PNOZmulti, protection type IP67,connection via connection module, 8 safe digital inputs, 8 outputs configurable as a standard, test pulse or 24 V, separate supply of outputs.
Specifications
General data
| Product ID (Pilz order number) | 773601 |
| Approval | CE, UKCA, cULus Listed, KOSHA, TÜV |
| Application range | Standard/Fail-safe |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | DC |
| Power consumption DC | 1.2 |
| Purpose of U2 | Load Supply |
| Supply voltage U2 | 24 |
| Type of supply voltage U2 | DC |
| Tolerance of U2 | -30 %/+25 % |
| Max. device circuit breaker | 4 A |
| Terminal V ind. loads off | -45 V |
| Permitted loads | ohmsch, induktiv, kapazitiv |
Inputs
| Number of inputs | 8 |
| Signal level at input at 0 | -3 - +5 VDC |
| DC voltage at input | 24 V |
| U input to EN 61131-2 Type 1 | 24 V DC |
| Input type to EN 61131-2 | 1, 3 |
| Potential isolation input | ja |
Semiconductor outputs
| Function of S/C output | Testtaktausgang, 24 V DC-Ausgang, Standardausgang |
| DC voltage at output | 24 V DC |
| Potential isolation of S/C O | ja |
| S/C output short circuit proof | ja |
Environmental data
| Climatic suitability to ... | EN 60068-2-78 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -30 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | P_FEUCHTE_WERT_93 % r. F. bei 40 °C |
| Condensation permitted? | Briefly |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61000-4-8, EN IEC 61000-6-4, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Acc. shock to standard2 | 10g |
| Clearance & creepage dist. to | IEC 60664-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP67 |
| Terminal protection type | IP67 |
Potential separation
| Potential isolation 1 between | Eingang und int. Busspannung |
| Type of potential isolation 1 | Basisisolierung |
| Potential isolation 2 between | HL-Ausgang und int. Busspann. |
| Type of potential isolation 2 | Basisisolierung |
Mechanical data
| Housing material | PBT, Valox 855, PET |
| Housing material upper part | Valox 855 |
| Housing material label holder | PC |
| Connection terminal | M12 |
| Terminal style | schraubverriegelt |
| Height dimension | 162 mm |
| Width dimension | 60 mm |
| Depth dimension | 30 mm |
| Net weight | 320 g |
| Gross weight | 335 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242604 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001599 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548058918 |
| Volume | 0.363 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
| 3rd-party lic.inf. PDP67 F 8DI ION | PDF · 1.1 MB |
| Application Notes: Application Note Content | PDF · 1.0 MB |
| Application Note Decentr periphery PNOZm | PDF · 1.0 MB |
| Operat.Manual PDP67 F 8DI ION HP (VA) | PDF · 2.0 MB |
CAD & dimension drawings
Certificates (6)
| Certificate (UL) NRAQ.E183931 | PDF · 0.1 MB |
| Type examination certificate (KOSHA) 2014-244 | PDF · 1.6 MB |
| Type examination certificate (TÜV) M6R-020132-0315-R00 | PDF · 1.0 MB |
| Certificate (UL) NRAQ7.E183931 | PDF · 0.1 MB |
| EU/EC-Declaration of Conformity (Konformitätserklärung) | PDF · 0.3 MB |
| UK Declaration of Conformity (UKCA) | PDF · 0.2 MB |
