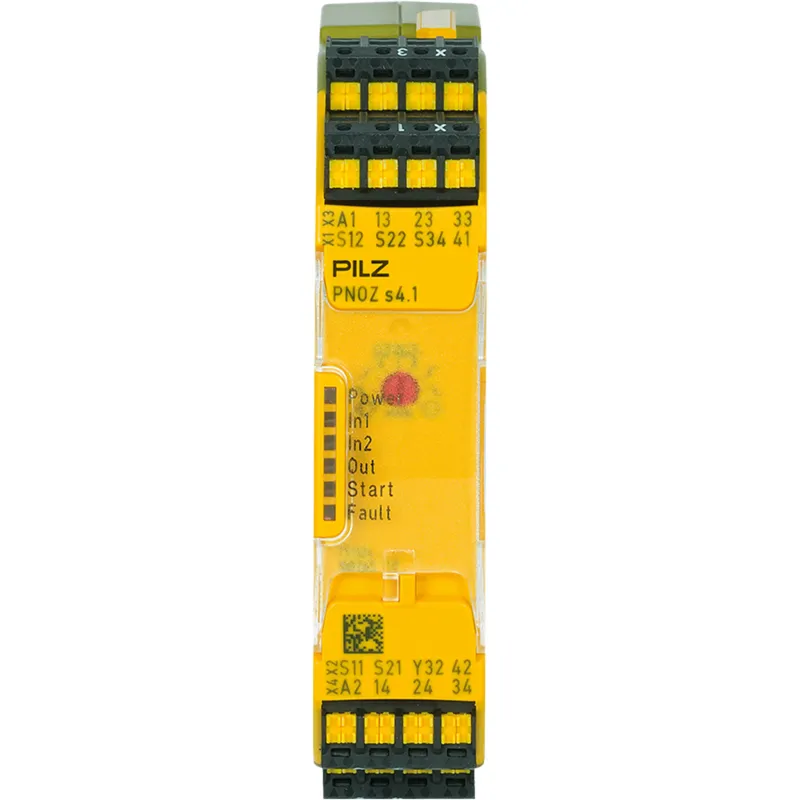

Pilz 751124

Q: When can 751124 be shipped?

751124 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 751124 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 751124 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 751124, subject to availability and destination.

PNOZ s4.1 C 24VDC 3 n/o 1 n/c

MPN: 751124
EAN: 4046548054231
Category: Monitoring of E-STOP, safety gates, light barriers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 751124?

PNOZsigma safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O,1 N/C,, UB = 24 V DC, width: 22.5 mm, plug-in spring-loaded terminals, monitoringof E-STOP, safety gates, furnaces in accordance with EN 50156-1.

Specifications

General data

Product ID (Pilz order number)	751124
Approval	CCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Power consumption DC	2.5 W

Inputs

Number of inputs

Semiconductor outputs

Number of semicond. outputs	1
Utilisation cat. to EN 60947-1	DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	1.5 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	4 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	0.6 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G.U. (same polarity)
Relay contact material	AgCuNi
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material lower section	PC
Housing material front plate	PC
Housing material upper part	PC
Connection terminal	Spring-loaded terminal
Terminal style	plug-in
Height dimension	100 mm
Width dimension	22.5 mm
Depth dimension	120 mm
Net weight	185 g
Gross weight	195 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	34, 7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	> 0,1
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371819
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001449
UNSPSC 25	39122331
GTIN	4046548054231
Volume	0.324 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1
