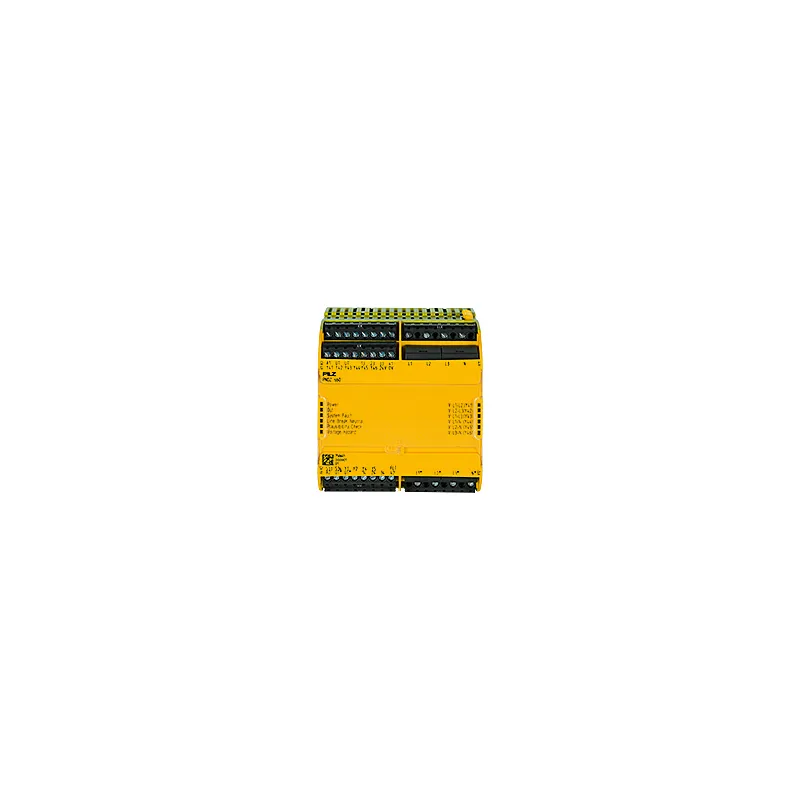

Pilz 750600
PNOZ s60 24-48VACDC 3n/o 1n/c 6so
- MPN
- 750600
- EAN
- 4046548086119
- Category
- Safe monitoring device
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 750600?
PNOZsigma voltage monitoring relay up to PL e and SIL CL 3, UB = 24 - 48 V AC/DC, outputs: 3 N/O, 1 N/C, 6 auxiliary outputs, width: 90 mm, plug-in screw terminals, expansion with PNOZsigma contact expansions.
Specifications
General data
| Product ID (Pilz order number) | 750600 |
| Approval | CE, CCC, UKCA, cULus Listed, EAC (Eurasian), TÜV |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Purpose of U1 | Device Supply |
| Supply voltage (V) | 24 |
| Type of supply voltage U1 | AC/DC |
| Power consumption AC | 10.2 |
| Power consumption DC | 7.5 |
Measuring circuit
| Meas. circ. frequ. range (Hz) | 50 |
Inputs
| Number of inputs | 6 |
Semiconductor outputs
| Number of semicond. outputs | 6 |
| Tolerance ext. volt. DC S/C | -20 %/+20 % |
Semiconductor outputs (standard)
| Galv. isol. n/safe SC O | ja |
| Short circ. prot. n/safe S/C O | ja |
| Signal level at 1 n/safe S/C O | UB - 2,5 V DC bei 0,05 A |
Relay outputs
| Utilisation cat. AC/DC1 stand. | EN 60947-4-1 |
| Voltage AC1 safety cont. | 250 |
| Max. current AC1 safety cont. | 6 |
| Voltage DC1 safety cont. | 24 |
| Max. current DC1 safety cont. | 6 |
| Utilisation cat. AC15/DC13sta. | EN 60947-5-1 |
| Voltage AC15 safety cont. | 230 |
| Max. current AC15 safety cont. | 3 |
| Voltage DC13 safety cont. | 24 |
| Safety contacts: AC at UL | 250 V AC G.U. (same polarity) |
| Safety contacts: pilot duty | R300, B300 for NO contact only |
| Relay contact material | AgCuNi |
| Addit. contact details relay | + 0,2 µm Au |
Environmental data
| Climatic suitability to ... | EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature | -10 °C |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | unzulässig |
| EMC to standard ... | EN 60255-26, EN 61326-3-1 |
| Vibration to standard ... | EN 60255-21-1 |
| Test severity class vibration | Klasse 1 |
| Test severity class shock | Klasse 1 |
| Earthquake to standard 1 | EN 60255-21-3 |
| Test severity class earthquake | Klasse 0 |
| Test severity class cont.shock | Klasse 1 |
| Clearance & creepage dist. to | EN 60255-27 |
| Overvoltage category | III |
| Pollution degree clear.&creep. | 2 |
| Protection type, mounting | IP54 |
| Protection type, housing | IP20 |
| Terminal protection type | IP20 |
Mechanical data
| Mounting position | beliebig |
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material upper part | PC |
| Connection terminal | Schraubklemme |
| Terminal style | steckbar |
| Flex. cond. c/s AWG info | 24 - 12 AWG |
| Height dimension | 98 mm |
| Width dimension | 90 mm |
| Depth dimension | 120 mm |
| Net weight | 670 g |
| Gross weight | 680 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371801 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000019 |
| ETIM Reference Feature | EC001438 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548086119 |
| Volume | 0.884 dm3 |
| Harmonized System Code | 85364900 |
| Quantity per packaging unit | 1 |
