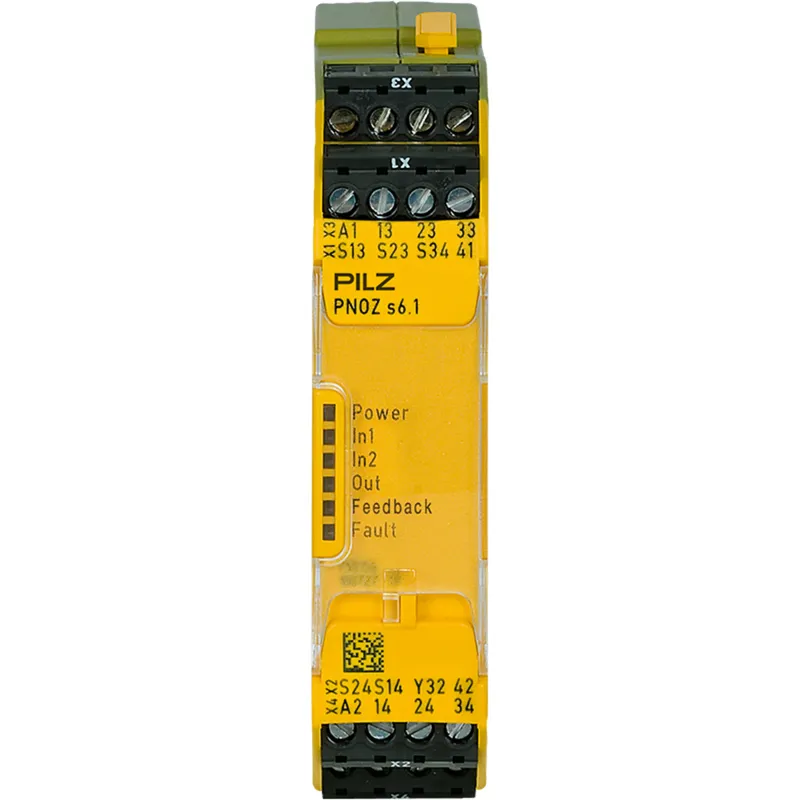

Pilz 750156

Q: When can 750156 be shipped?

750156 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 750156 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 750156 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750156, subject to availability and destination.

PNOZ s6.1 48-240VACDC 3 n/o 1 n/c

MPN: 750156
EAN: 4046548045918
Category: Two-hand monitoring

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pilz 750156?

PNOZsigma safety relay (standalone), two-hand control relay, inputs: Per pushbutton 1 N/O, 1 N/C, outputs: 3 N/O, 1 N/C, 1 SC, UB =48 - 240 V AC/DC, width: 22.5 mm, plug-in screw terminals, simultaneity monitoring with two-hand pushbutton.

Specifications

General data

Product ID (Pilz order number)	750156
Approval	CCC, CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Lifecycle	Active (current Pilz product)

Electrical data

Supply voltage (V)	48 … 240 V
Type of supply voltage U1	AC/DC
Power consumption AC	7 VA
Power consumption DC	3.5 W
Max. device circuit breaker	Max. conductor cross section
Type of two-hand device	III A

Inputs

Number of inputs

Semiconductor outputs

Number of semicond. outputs	1
Utilisation cat. to EN 60947-1	DC-12

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	6 A
Voltage DC1 safety cont.	24 V
Max. current DC1 safety cont.	6 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	3 A
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G.U. (same polarity)
Relay contact material	AgCuNi
Addit. contact details relay	+ 0.2 µm Au

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature	-10 … 55 °C
Humidity rating	93 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...	EN 60068-2-6
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III / II
Pollution degree clear.&creep.	2
Protection type, housing	IP40

Mechanical data

Mounting position	any
Housing material lower section	PC
Housing material front plate	PC
Housing material upper part	PC
Connection terminal	Screw terminal
Terminal style	plug-in
Flex. cond. c/s AWG info	24 - 12 AWG
Height dimension	98 mm
Width dimension	22.5 mm
Depth dimension	120 mm
Net weight	205 g
Gross weight	215 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a, 7c I
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead, Lead oxide
%-part of the pollutant	>
CAS No.	7439-92-1, 1317-36-8
SCIP entry available	yes
WEEE classification (08/2018)	5 devices (feed size < 50cm)

Commercial data

ECLASS version	ECLASS-13
ECLASS Reference Feature	27371821
ETIM Version	ETIM-9.0
ETIM Reference Group	EG000019
ETIM Reference Feature	EC001452
UNSPSC 25	39122205
GTIN	4046548045918
Volume	0.324 dm3
Harmonized System Code	85364900
Quantity per packaging unit	1

Downloads & documentation

Official documents from Pilz, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (11)
