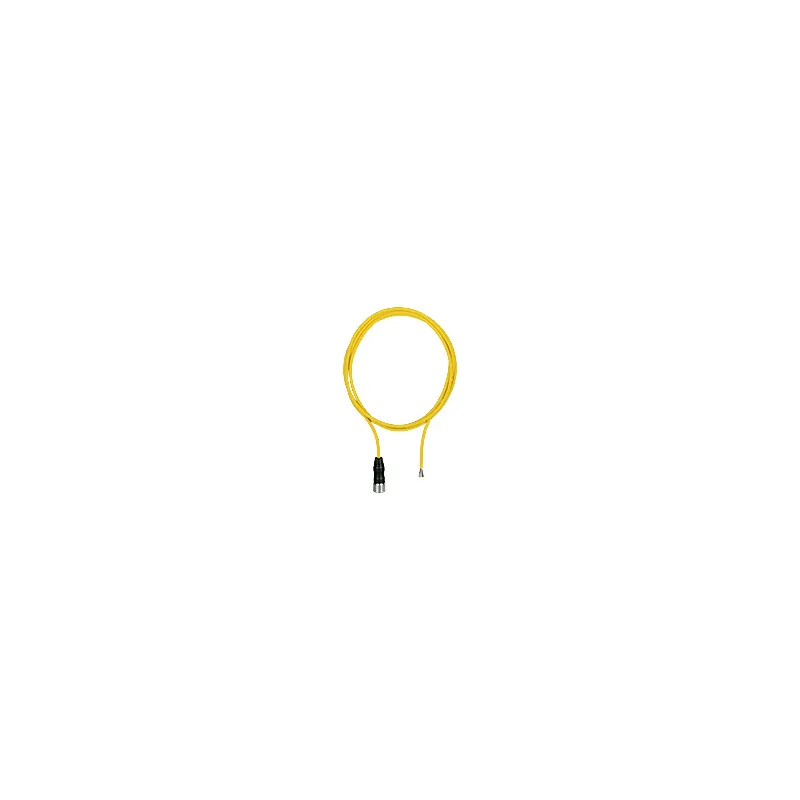

Pilz 6Z000006
PSEN cable M23-12sf, 10m
- MPN
- 6Z000006
- EAN
- 4046548096569
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 6Z000006?
Connection cable, PUR, yellow RAL1003, twisted pair (1x2x20AWG +3x2x24AWG), shielded, suitable for drag chains, 12-pin, socket straight M23, on open line end, 8-pin configured, connection cable for PSEN enc sincos and PSEN enc HTL, cable length 10m
Specifications
General data
| Product ID (Pilz order number) | 6Z000006 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 8 |
| Typ. cond.resist. data cab. K1 | 94.2 Ohm/km at 20 °C |
| Insulation resistance cable K1 | 100 MOhm/km at 20 °C |
Environmental data
| Ambient temperature | -50 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 12-pin M23 female connector |
| Shape of connector type 1 | straight |
| Matl threaded ring conn 1 | CuZn nickel-plated |
| Material of sockets | CuZn, gold-plated |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Length cable | 10 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Black |
| Material of cable insulation 1 | TPU / TPE-U |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 7.5 x Ø |
| Max. outside diameter cable K1 | 8.05 |
| Diameter data line AWG K1 | 24 |
| Stranding K1 | 4x twisted pair |
| Shielding K1 | yes |
| Type of shielding K1 | Wire mesh |
| Number of conductors | 8 |
| Approvals for cable K1 | UL AWM-Style 20233 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | UL FT2 |
| Torque interlocking screw | 2.0 Nm |
| Net weight | 814 g |
| Gross weight | 816 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060311 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548096569 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6Z000006: frequently asked questions
When can 6Z000006 be shipped?
6Z000006 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6Z000006 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6Z000006 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6Z000006, subject to availability and destination.
