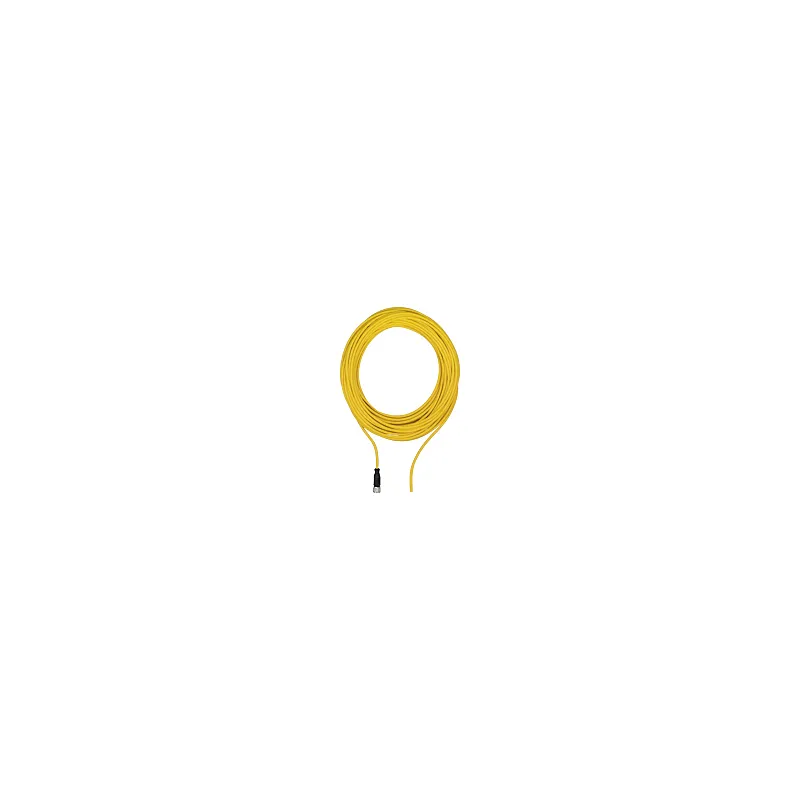

Pilz 6D000033
PSEN sc cable M12-17sf, 50m
- MPN
- 6D000033
- EAN
- 4046548097023
- Category
- Pre-assembled cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 6D000033?
Special connection cable Advanced PSENscan, PUR, yellow RAL1003, 17- pin, socket straight M12, on open line end, cable length: 50m
Specifications
General data
| Product ID (Pilz order number) | 6D000033 |
| Approval | CE, UKCA, cULus Listed |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 1.5 |
Environmental data
| Ambient temperature | -40 … 80 °C |
| Pollution degree clear.&creep. | 3 |
Mechanical data
| Connector type 1 | 17-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Matl threaded ring conn 1 | CuZn nickel-plated |
| Contact surfaces material 1 | CuZn, Ni b/Au 0.2 gal. |
| Seal material | FPM |
| Material of sockets | CuSn |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Length cable | 50 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Housing colour | Black |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 8 x Ø |
| Max. outside diameter cable K1 | 7.3 |
| Conductor cross section | 0.08, 0.14 |
| Cable cross section AWG K1 | 26, 28 |
| Shielding K1 | no |
| Number of conductors | 17 |
| Approvals for cable K1 | UL AWM-Style 20233 |
| Approvals for connector 1 | UL94 V-0 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | CSA FT-2, UL AWM 20233 |
| Net weight | 3045 g |
| Gross weight | 3075 g |
Environment
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060311 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001855 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548097023 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
