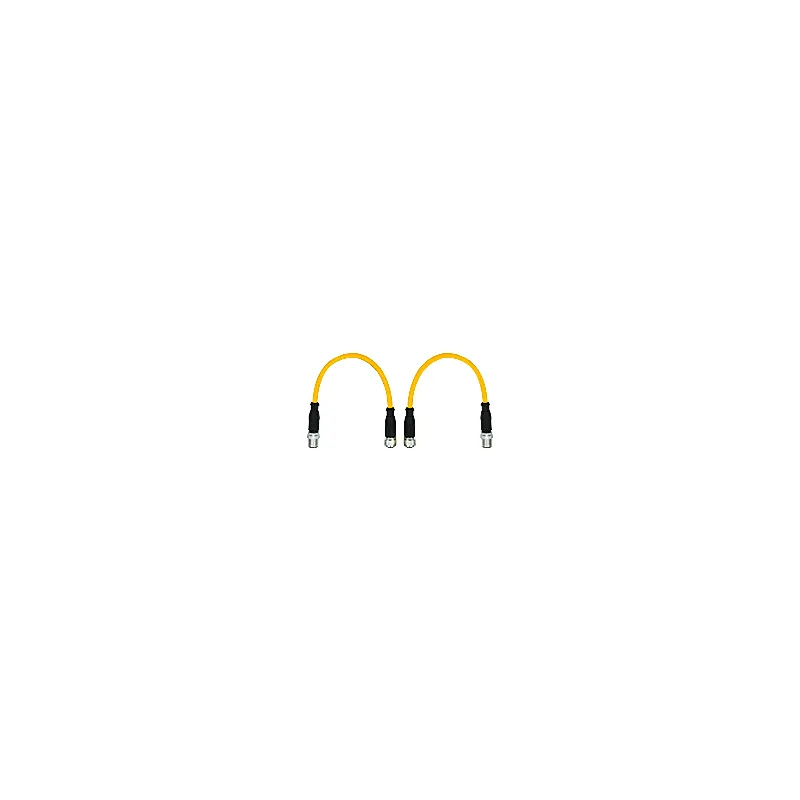

What is the Pilz 632013?
Cable, adapter, IP67, M12 female connector black, straight, 5-pin, A- coded on M12 male connector, back, straight, 4-pin (transmitter) / 8- pin (receiver), A-coded, PUR, 0.15 m, 8× 0.25 mm², yellow, upgrade support to connect light curtains of PSENopt/1 to PSENopt II, set of 2 for transmitter and receiver, PU 2 pieces.
Specifications
General data
| Product ID (Pilz order number) | 632013 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 2 |
| Typ. conductor resistance K1 | 78 Ohm/km |
| Typ. conductor resistance K1 | 78 Ohm/km |
Environmental data
| Ambient temperature | -30 … 80 °C |
| Pollution degree clear.&creep. | 2 |
| Protection type, housing | IP67 when screwed in place |
Mechanical data
| Connector type 1 | 5-pin M12 female connector |
| Shape of connector type 1 | straight |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 4-pin M12 male connector |
| Shape of connector type 2 | straight |
| Coding of M12 connector 2 | A coded |
| Connector type 3 | 5-pin M12 female connector |
| Shape of connector type 3 | straight |
| Coding of M12 connector 3 | A coded |
| Matl threaded ring conn 1 | GD-Zn, Ni |
| Matl threaded ring conn 2 | GD-Zn, Ni |
| Material threaded ring conn 3 | GD-Zn, Ni |
| Material threaded ring conn. 4 | GD-Zn, Ni |
| Housing material connector 3 | TPU, UL 94 HB |
| Housing material connector 4 | TPU, UL 94 HB |
| Contact surfaces material 1 | Ni b / Au 0.2 gal. |
| Contact surfaces material 2 | Ni b / Au 0.2 gal. |
| Contact surfaces material 3 | Ni b / Au 0.2 gal. |
| Contact surfaces material 4 | Ni b / Au 0.2 gal. |
| Seal material | FPM |
| Material of pins | CuZn |
| Material of sockets | CuZn |
| Cable material K1 | Cu |
| Cable material K2 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Insulation material cable K2 | PP (9Y) |
| Cable type K1 | Li9Y11Y |
| Length cable | 0.15 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Colour cable insulation 2 | Signal yellow RAL1003 |
| Housing colour | Black |
| Material of cable insulation 1 | TPU / TPE-U |
| Material of cable insulation 2 | TPU / TPE-U |
| Trailing capability of cable 1 | no |
| Trailing capability of cable 2 | No |
| Bend radius (when laying) K1 | 3 x Ø |
| Bend radius (when laying) K2 | 3 x Ø |
| Bend radius constant motion K2 | 10 x Ø |
| Max. outside diameter cable K1 | 6.2 |
| Conductor cross section | 0.25 |
| Stranding K1 | 8 cores round filler |
| Stranding K2 | 8 cores round filler |
| Shielding K1 | no |
| Shielding K2 | No |
| Number of conductors | 8 |
| Approvals for cable K1 | UL AWM-Style 20549 |
| Approvals for cable K2 | UL AWM-Style 20549 |
| Approvals for connector 1 | UL 94 HB |
| Approvals for connector 2 | UL 94 HB |
| Approvals for connector 3 | UL 94 HB |
| Approvals for connector 4 | UL 94 HB |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | cULus 20549 |
| Torque interlocking screw | 0.6 Nm |
| Net weight | 53 g |
| Gross weight | 59 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 6c |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548096590 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
