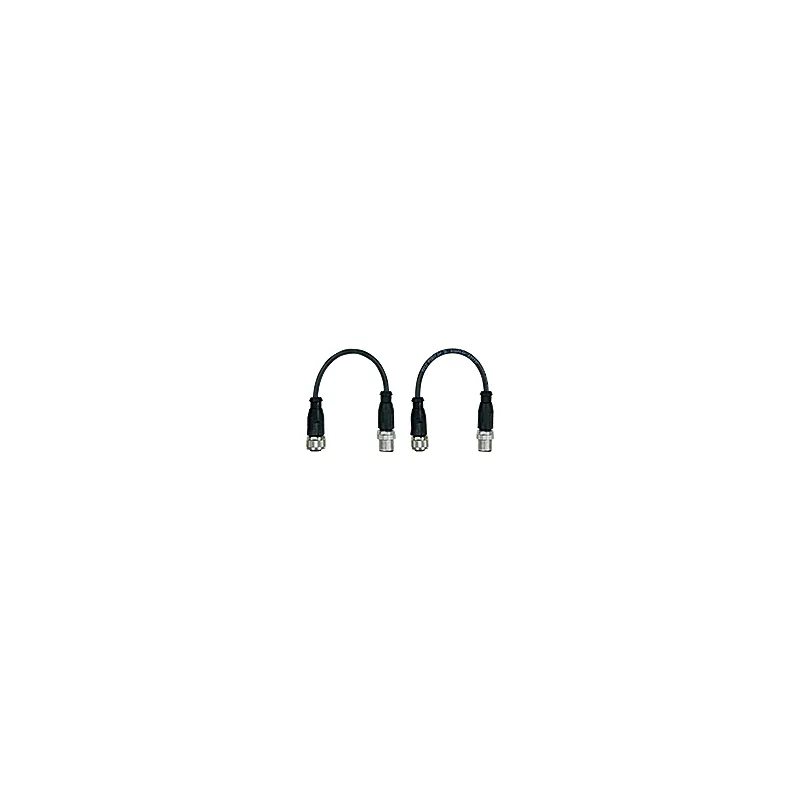

What is the Pilz 631187?
Cable, adapter, IP68, M12 female connector, black, straight, 4-pin, A- coded on M12 female connector, black, straight, 5-pin, A-coded, PUR, 0.1 m, 4× 0.25 mm², black, to connect a PSENopt slim, set of 2 for transmitter and receiver, PU 2 pieces.
Specifications
General data
| Product ID (Pilz order number) | 631187 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 4 |
| Typ. conductor resistance K1 | 58 Ohm/km |
| Specific contact resistance K1 | >= 1E+16 Ohm*cm |
Environmental data
| Ambient temperature | -20 … 80 °C |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP67 |
Mechanical data
| Connector type 1 | 5-pin M12 male connector |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 5-pin M12 female connector |
| Coding of M12 connector 2 | A coded |
| Matl threaded ring conn 1 | Zn, nickel-plated |
| Matl threaded ring conn 2 | Zn, nickel-plated |
| Contact surfaces material 1 | Au |
| Contact surfaces material 2 | Au |
| Seal material | FPM |
| Material of pins | CuZn, gold-plated |
| Material of sockets | CuZn, gold-plated |
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Length cable | 0.1 |
| Colour cable insulation 1 | Black |
| Housing colour | Black |
| Material of cable insulation 1 | TPU / TPE-U |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 6 x Ø |
| Max. outside diameter cable K1 | 4.55 |
| Conductor cross section | 0.25 |
| Number of conductors | 4 |
| Approvals for cable K1 | UL AWM-Style 20549 |
| Halogen-free | yes |
| Flame resistance | cULus 20549 |
| Housing material | TPU, UL94 HB |
| Net weight | 56 g |
| Gross weight | 66 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272791 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC003015 |
| UNSPSC 25 | 39121528 |
| GTIN | 4046548088571 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
