Pilz 570793
PSEN cable 200m-8x0.25mm²
- MPN
- 570793
- EAN
- 4046548069853
- Category
- Cable by the metre
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

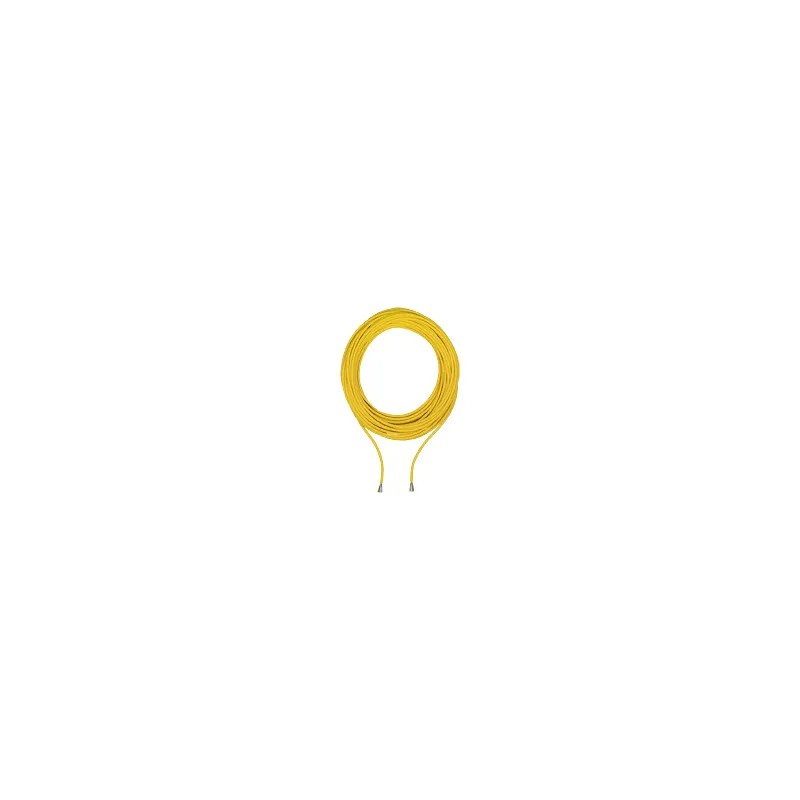

What is the Pilz 570793?
Cable reel, TPU/TPE-U, yellow RAL1003, 8x0.25, suitable for drag chains,colour of the single wires: White, brown, green, yellow, grey, pink, blue, red, cable length: 200m
Specifications
General data
| Product ID (Pilz order number) | 570793 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Supply voltage (V) | 300 |
| Typ. conductor resistance K1 | 78 Ohm/km |
| Specific contact resistance K1 | >= 1E+16 Ohm*cm |
| Specific conductor capacity K1 | 60pF/m |
Environmental data
| Ambient temperature | -25 … 80 °C |
Mechanical data
| Cable material K1 | Cu |
| Insulation material cable K1 | PP (9Y) |
| Cable type K1 | Li9Y11Y |
| Length cable | 200 |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Material of cable insulation 1 | TPU / TPE-U |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 6 x Ø |
| Max. outside diameter cable K1 | 6.2 |
| Conductor cross section | 0.25 |
| Cable cross section AWG K1 | 24 |
| Stranding K1 | 8 cores round filler |
| Shielding K1 | no |
| Number of conductors | 8 |
| Approvals for cable K1 | UL AWM-Style 20549 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | cULus 20549 |
| Net weight | 10800 g |
| Gross weight | 11280 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000001 |
| ETIM Reference Feature | EC003250 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548069853 |
| Volume | 51.200 dm3 |
| Harmonized System Code | 85444290 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
570793: frequently asked questions
When can 570793 be shipped?
570793 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 570793 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 570793 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 570793, subject to availability and destination.
