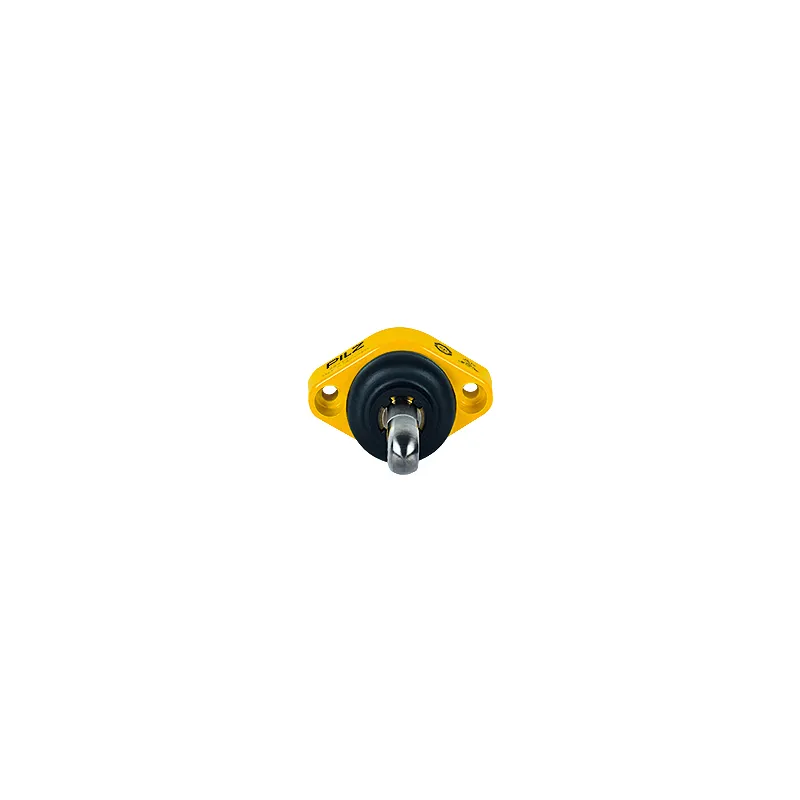

Pilz 570483
PSEN ml 2.1 round actuator
- MPN
- 570483
- EAN
- 4046548094961
- Category
- PSENmlock
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Pilz 570483?
Actuator with rounded head, fully coded, for safety guard locking device PSENmlock
Specifications
General data
| Product ID (Pilz order number) | 570483 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | hoch |
| Transponder coding | vollcodiert |
| unit type | Betätiger |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. F. bei 40 °C |
| EMC to standard ... | EN 55011: class A, EN 60947-5-3, EN 61326-3-1 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 50g |
| Protection type, housing | IP67 |
| UL enclosure type | type 1 |
Mechanical data
| Max. vertical offset | +/-3,0 mm |
| Max. ang. offset round X axis | +/-2,0 deg |
| Max. ang. offset round Y axis | +/-2,5 deg |
| Max. ang. offset round Z axis | +/-7,5 deg |
| Max. offset closing direction | +/-2 mm |
| Product material | Zn, Stahl verzinkt, Kunststoff, Edelstahl, Polycarbonat |
| Net weight | 145 g |
| Gross weight | 190 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272606 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548094961 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
No matching specifications
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (7)
- Type examination certificate (TÜV) M6A-020132-266-R02
- Certificate (EAC) RU-C-DE-HB-B-03003-23
- Self Declaration (CQC) CCC_Declaration-of-exemption
- Type examination certificate (TÜV) M6A-020132-0313-R00
- Certificate (UL) E300872
- EU/EC-Declaration of Conformity (Konformitätserklärung)
- UK Declaration of Conformity (UKCA)
