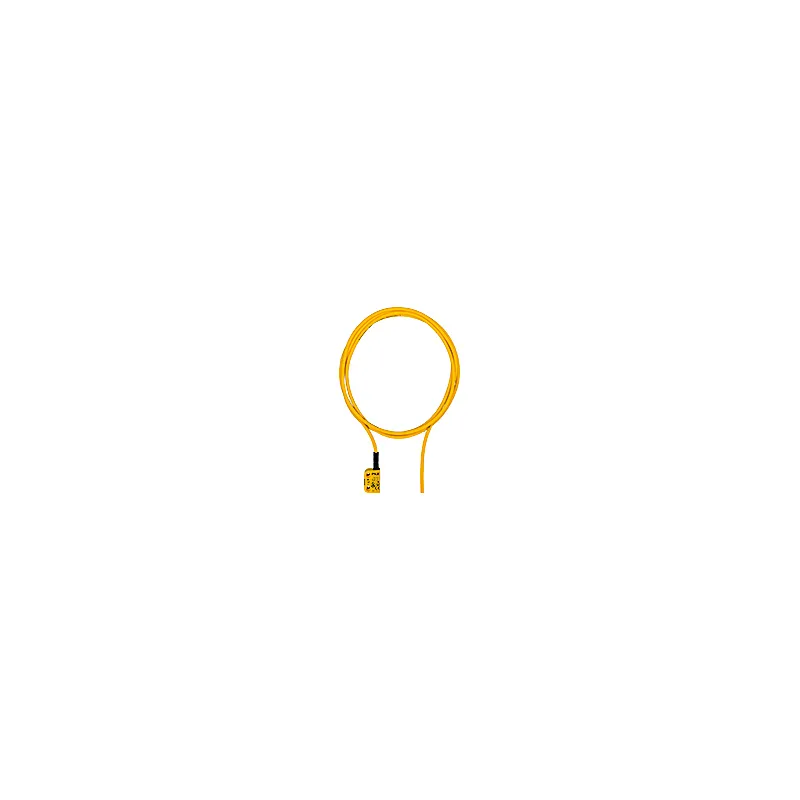

Pilz 541261

PSEN cs4.2a 1switch

MPN
541261
EAN
4046548068269
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 541261?

RFiD safety switch, 2 safe SC outputs, connection cable 5 m, one actuation direction, IP69K, typ. operating distance 11 mm, Sao = 8mm, Sar = 20 mm, PU = 1 piece uniquely fully coded switch.

Specifications

General data

Product ID (Pilz order number)541261
ApprovalCE, UKCA, cULus Listed, FCC, IC, TÜV, EAC (Eurasian)
Sensor principleTransponder
Coding level to ISO 14119hoch
Classification to EN 60947-5-3PDDB
Transponder codingunicat
Suitable for series connectionja
unit typeSensor
LifecycleActive (current Pilz product)

Electrical data

Supply voltage (V)24
Type of supply voltage U1DC
Power consumption DC1

Inputs

Number of inputs2
DC voltage at input24 V DC

Semiconductor outputs

Number of OSSD outputs2
Number of sig. outputs1
Potential isolation S/C Onein
S/C output short circuit proofja
Utilisation cat. to EN 60947-1DC-12

Environmental data

Ambient temperature standardEN 60068-2-14
Ambient temperature-25 °C
Max. ambient temp. at Hmax+60 °C
Max. ambient temp. at 2000 m+70 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating93 % r. F. bei 40 °C
Perm. operating height ASL4000 m
EMC to standard ...EN 60947-5-3
Vibration to standard ...EN 60947-5-2
Acc. shock to standard130g
Overvoltage categoryIII
Pollution degree clear.&creep.3
Protection type, housingIP6K9K

Switching distances

Change op. distance temp.act.1+-0,01mm/°C
Change op. distance temp.act.2+-0,1mm/°C
Change op. distance temp.act.3+-0,01mm/°C
Change op. distance temp.act.4+-0,01mm/°C

Mechanical data

Bend radius (when laying) K15 x Ø
Sensor can be flush-mountedJa, Montagehinweis beachten
Connection type5m Kabel
Cable linesLi9Y11Y 8 x 0,14 mm2
Housing material upper partPBT
Height dimension37 mm
Width dimension26 mm
Depth dimension18 mm
Gross weight245 g

Transponder

Operating frequency122 kHz - 128 kHz

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1%
CAS No.7439-92-1, 1317-36-8
SCIP entry availableyes
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27274601
ETIM VersionETIM-9.0
ETIM Reference GroupEG000026
ETIM Reference FeatureEC002592
UNSPSC 2539122205
GTIN4046548068269
Volume0 dm3
Harmonized System Code85365019
Quantity per packaging unit1
