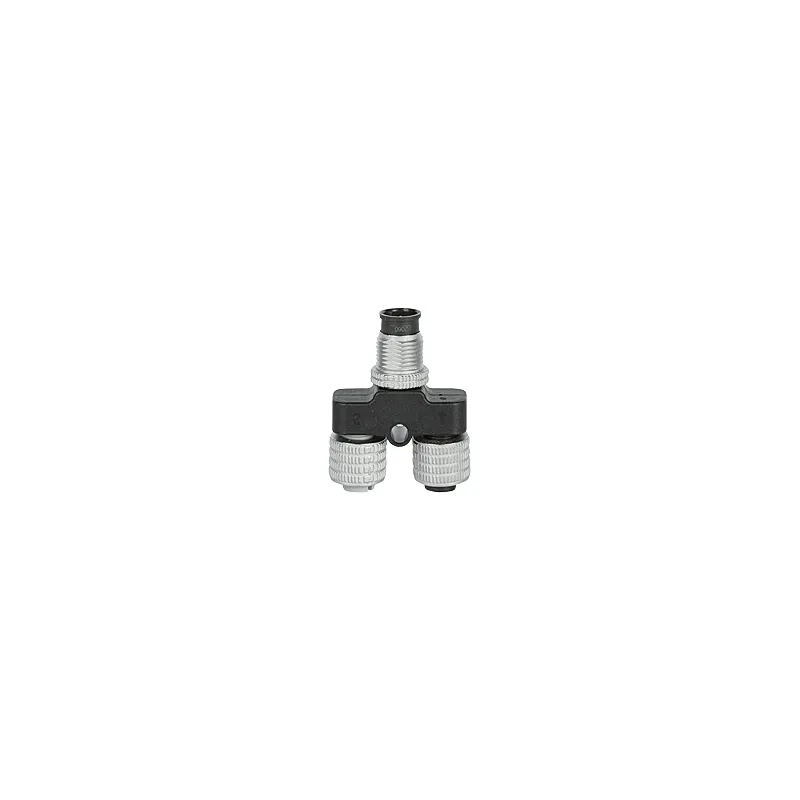

Pilz 380350
PSEN T M12
- MPN
- 380350
- EAN
- 4046548054019
- Category
- Plug-in connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 380350?
Plug-in connector, T-adapter, IP67, 2x M12 female connector, 5-pin, A- coded on M12 male connector, 5-pin, A-coded, internal wiring 1:1 for all 5 signals, to connect two PSEN to PSS67.
Specifications
General data
| Product ID (Pilz order number) | 380350 |
| Approval | - |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Rated current | 4 |
Environmental data
| Ambient temperature | -25 … 85 °C |
| Pollution degree clear.&creep. | 3 |
| Protection type, housing | IP67 |
Mechanical data
| Connector type 1 | 5-pin M12 female connector |
| Coding of M12 connector 1 | A coded |
| Connector type 2 | 5-pin M12 female connector |
| Coding of M12 connector 2 | A coded |
| Connector type 3 | 5-pin M12 male connector |
| Coding of M12 connector 3 | A coded |
| Housing material connector 3 | PBT GF20 |
| Contact surfaces material 1 | Ni, Au gal. |
| Contact surfaces material 2 | Ni, Au gal. |
| Contact surfaces material 3 | Ni, Au gal. |
| Seal material | FPM |
| Material of pins | CuZn |
| Material of sockets | CuSn |
| Approvals for connector 1 | UL 94 |
| Approvals for connector 2 | UL 94 |
| Approvals for connector 3 | UL 94 |
| Housing material | PBT |
| Net weight | 23 g |
| Gross weight | 24 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27440106 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC002925 |
| UNSPSC 25 | 26121603 |
| GTIN | 4046548054019 |
| Volume | 0 dm3 |
| Harmonized System Code | 85366990 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
380350: frequently asked questions
When can 380350 be shipped?
380350 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 380350 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 380350 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 380350, subject to availability and destination.
