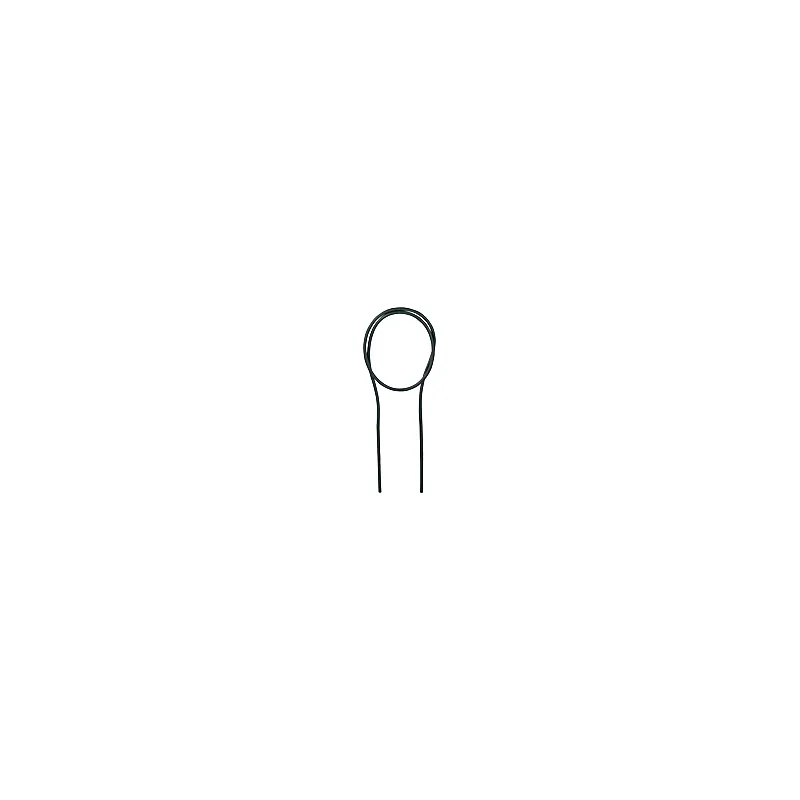

Pilz 380321
PSS67 Supply cable
- MPN
- 380321
- EAN
- 4046548055313
- Category
- Cable by the metre
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 380321?
By the metre, PUR, black RAL9005, 5x0.5, suitable for drag chains,colour of the single wires: Brown, white, blue, black, grey
Specifications
General data
| Product ID (Pilz order number) | 380321 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Typ. conductor resistance K1 | 39 Ohm/km |
| Insulation resistance cable K1 | 1000 MOhm x km |
| Specific contact resistance K1 | >= 1E+17 Ohm*cm |
| Specific conductor capacity K1 | 105pF/m |
Environmental data
| Ambient temperature | -25 … 80 °C |
Mechanical data
| Cable material K1 | Cu |
| Insulation material cable K1 | PP9P |
| Cable type K1 | Li9YH-11YH |
| Colour cable insulation 1 | Black, similar to RAL9005 |
| Material of cable insulation 1 | TPU / TPE-U, PUR |
| Trailing capability of cable 1 | yes |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 6.2 |
| Conductor cross section | 0.5 |
| Cable cross section AWG K1 | 20 |
| Stranding K1 | 5 cores round PP splice yarn |
| Shielding K1 | no |
| Number of conductors | 5 |
| Approvals for cable K1 | UL AWM-Style 20549 |
| Halogen-free | yes |
| Oil resistance | resistant |
| Flame resistance | UL 1581, CSA 22.2 FT2 |
| Net weight | 50 g |
| Gross weight | 50 g |
Environment
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060411 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000037 |
| ETIM Reference Feature | EC002599 |
| UNSPSC 25 | 26121636 |
| GTIN | 4046548055313 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444995 |
| Quantity per packaging unit | 1 |
