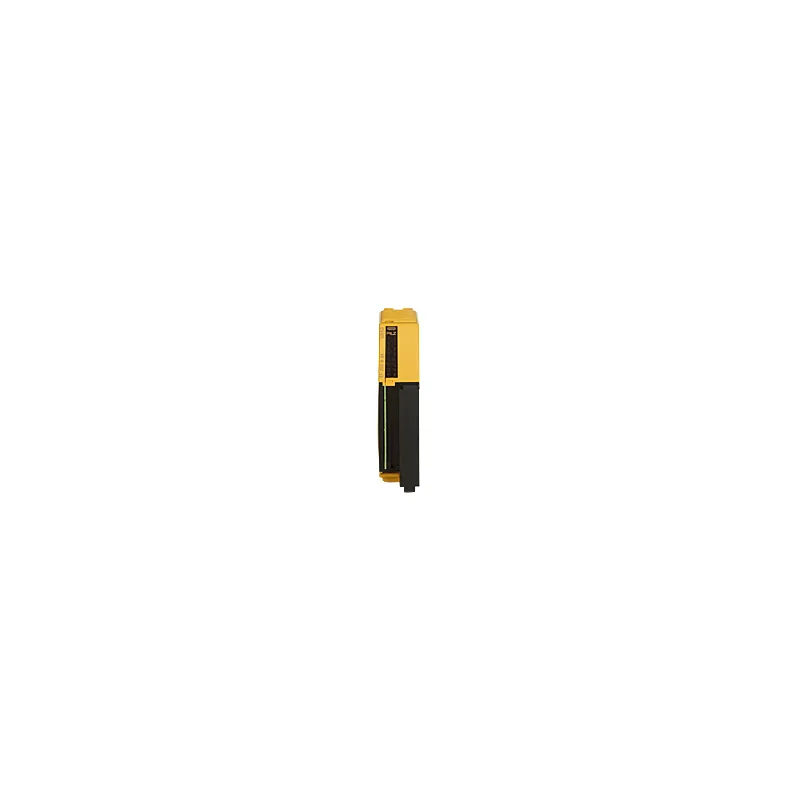

Pilz 328150

PSS u2 EF 2DO R 8A

MPN
328150
EAN
4046548072129
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Pilz parts? We buy surplus →

What is the Pilz 328150?

PSS u2, electronic module, failsafe, 2 outputs, relay contacts, N/O, to switch resistive and inductive loads, max. 250 V AC 10 A (AC1), volt- free, switch-off delay configurable, protective coding PSS u2 A CE T availablefor terminal block, 2-row, terminal block PSS u2 T 8 required (not supplied with the system).

Specifications

General data

Product ID (Pilz order number)328150
ApprovalCE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Application rangeFail-safe
LifecycleActive (current Pilz product)

Electrical data

Potential isolation U2ja
Permitted loadsohmsch, induktiv

Relay outputs

Number of relay outputs2
Utilisation cat. AC/DC1 stand.EN 60947-4-1
Voltage AC1 safety cont.250
Max. current AC1 safety cont.10
Voltage DC1 safety cont.24
Max. current DC1 safety cont.10
Utilisation cat. AC15/DC13sta.EN 60947-5-1
Voltage AC15 safety cont.230
Max. current AC15 safety cont.3
Voltage DC13 safety cont.24
Safety contacts: AC at UL250 V AC G.U. (same polarity)
Safety contacts: pilot dutyB300, R300
Relay contact materialAgCuNi
Addit. contact details relay+ 0,2 µm Au
Pot. isolation relay outputsja

Environmental data

Climatic suitability to ...EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN IEC 60068-2-14, EN 60068-2-78
Ambient temperature standardEN 60068-2-14
Ambient temperature-25 °C
UL spec. ambient temperatureUL 61010
Ambient temp. with UL-25 - 60 °C
Storage temperature standardEN 60068-2-1/-2
Climatic suitability standardEN 60068-2-78
Humidity rating95 % r. F. bei 40 °C
Condensation permitted?unzulässig
Perm. operating height ASL5000 m
EMC to standard ...EN 12015, EN 12016, EN IEC 61000-6-2, EN 298, EN 61000-6-7, EN IEC 61000-6-4, EN 61131-2 (Zone B), EN 50156-1
Vibration to standard ...EN 60068-2-6
Acc. shock to standard1150 m/s²
Acc. shock to standard2100 m/s²
Clearance & creepage dist.to 2EN 81-20, EN 50156-1
Overvoltage category 2III
Clearance & creepage dist. toEN 61131-2
Overvoltage categoryII
Pollution degree clear.&creep.2
Protection type standardEN 60529
Protection type, housingIP20
Terminal protection typeIP20

Potential separation

Potential isolation 1 betweenRL-Ausgang und RL-Ausgang
Type of potential isolation 1sichere Trennung
Potential isolation 2 betweenRL-Ausgang u. Periphery Supply
Type of potential isolation 2sichere Trennung
Potential isolation 3 betweenRL-Ausgang und Module Supply
Type of potential isolation 3sichere Trennung
Potential isolation 4 betweenPeriphery und Module Supply
Type of potential isolation 4Funktionisolierung

Mechanical data

Housing materialPC
Terminal stylesteckbar
Height dimension110.8 mm
Width dimension25 mm
Depth dimension72.5 mm
Net weight93 g
Gross weight110 g

Environment

RoHS directive2011/65/EU, 2015/863/EU
RoHS conformityyes
RoHS exceptionsyes
RoHS except.s acc. to direct.34, 7a, 7c I
REACh compliancecontains min. 1 SVHC-substance
REACh included substancesLead, Lead oxide
%-part of the pollutant> 0,1%
CAS No.7439-92-1, 1317-36-8
WEEE classification (08/2018)5 devices (feed size < 50cm)

Commercial data

ECLASS versionECLASS-13
ECLASS Reference Feature27242604
ETIM VersionETIM-9.0
ETIM Reference GroupEG000024
ETIM Reference FeatureEC001599
UNSPSC 2539122331
GTIN4046548072129
Volume0.378 dm3
Harmonized System Code85389091
Quantity per packaging unit1
