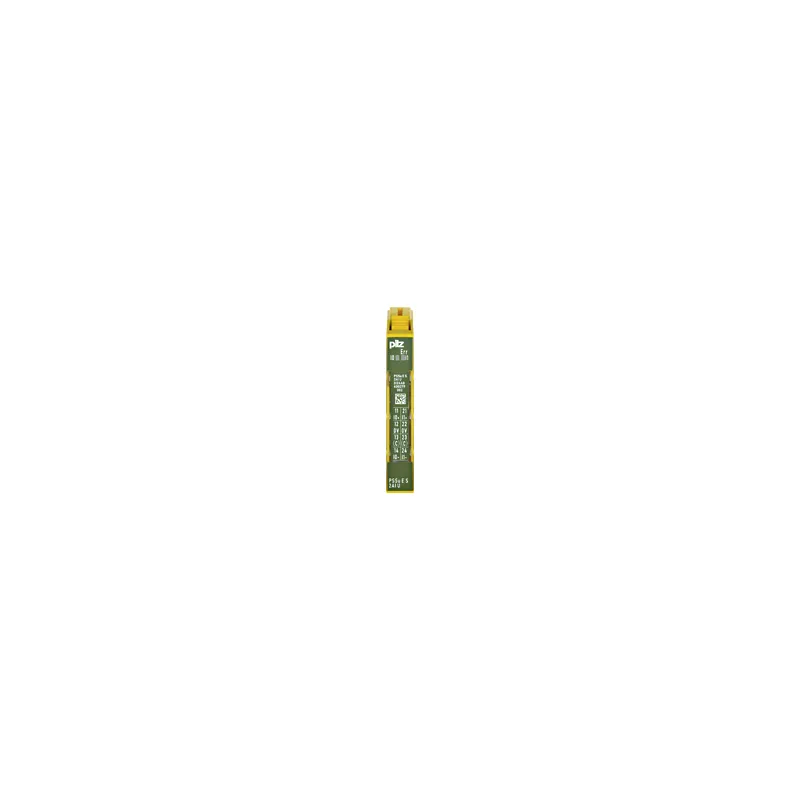

Pilz 312440
PSSu E S 2AI U
- MPN
- 312440
- EAN
- 4046548027112
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 312440?
PSSu, electronic module, standard, analogue inputs and outputs, 2inputs, 3 configurable voltage ranges, 0 - 10 V, single-pole, referenced toearth, - 10/0 - 10 V, dual-pole, differential input, resolution 12 Bit.
Specifications
General data
| Product ID (Pilz order number) | 312440 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Application range | Standard |
| Lifecycle | Active (current Pilz product) |
Analog inputs
| Number of analogue inputs | 2 |
| Type of analogue inputs | Voltage |
| Signal range analog input | 0 .. 10V (differential input), 0 .. 10V (single-ended), -10.. 10V (differential input) |
| Analog input signal type 1 | Single-ended |
| Analog input Signal range 1 | 0 - 10 V |
| Analog input signal type 2 | Differential input |
| Analog input Signal range 2 | 0 - 10 V |
| Analog input signal type 3 | Differential input |
| Analog input Signal range 3 | -10 - 10 V |
| Type of input filter | RC filter |
| Resolution of analogue inputs | 12 |
| Conversion method analog i/p | Successive approximation |
| Pot. isolation analog inp./ | Yes |
Inputs
| Potential isolation inputs | yes |
Environmental data
| Climatic suitability to ... | EN 60068-2-30, EN 60068-2-2, EN 60068-2-1, EN 60068-2-78, EN 60068-2-14 |
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | 0 … 60 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-30, EN 60068-2-78 |
| Humidity rating | 93 % r. h. at 40 °C |
| Condensation permitted? | Not permitted |
| Perm. operating height ASL | 2000 m |
| EMC to standard ... | EN 61000-4-4, EN 61000-6-2, EN 61000-4-5, EN 61000-6-4, EN 61000-4-6, EN 61000-4-2, EN 61000-4-3 |
| Vibration to standard ... | EN 60068-2-6 |
| Acc. shock to standard1 | 15g |
| Clearance & creepage dist. to | EN 60664-1 |
| Overvoltage category | II |
| Pollution degree clear.&creep. | 2 |
| Protection type standard | EN 60529 |
| Protection type, housing | IP20 |
Mechanical data
| Housing material lower section | PC |
| Housing material front plate | PC |
| Housing material code | PA |
| Terminal style | plug-in |
| Height dimension | 76 mm |
| Width dimension | 12.6 mm |
| Depth dimension | 60.2 mm |
| Net weight | 34 g |
| Gross weight | 39 g |
| Name of coding element | D |
| Colour of coding element | Dark grey |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | yes |
| RoHS except.s acc. to direct. | 7a, 7c I |
| REACh compliance | contains min. 1 SVHC-substance |
| REACh included substances | Lead, Lead oxide |
| %-part of the pollutant | > 0,1 |
| CAS No. | 7439-92-1, 1317-36-8 |
| SCIP entry available | yes |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27242601 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC001596 |
| UNSPSC 25 | 39122331 |
| GTIN | 4046548027112 |
| Volume | 0.049 dm3 |
| Harmonized System Code | 85389091 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
312440: frequently asked questions
When can 312440 be shipped?
312440 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 312440 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 312440 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 312440, subject to availability and destination.
