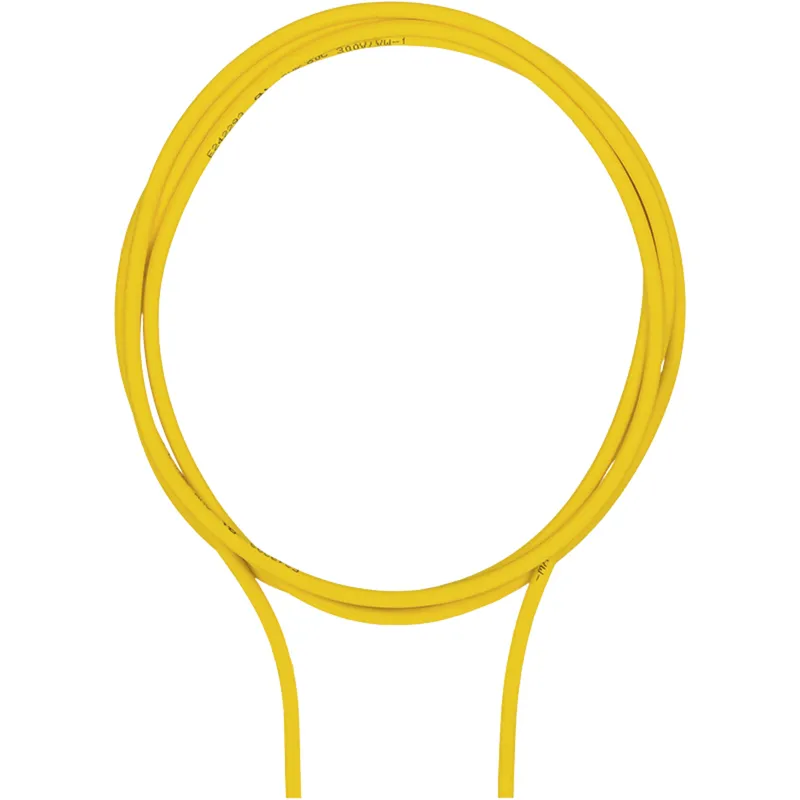

Pilz 311074
PSS SB BUSCABLE LC
- MPN
- 311074
- EAN
- 4046548006568
- Category
- Cable by the metre
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 311074?
By the metre, bus/power hybrid line, PUR, yellow RAL1003, 2x0.38+2x0.24+ 1x0.38, colour of the single wires: Red, white, green brown
Specifications
General data
| Product ID (Pilz order number) | 311074 |
| Approval | CE, UKCA |
| Lifecycle | Active (current Pilz product) |
Electrical data
| Typ. cond.resist. data cab. K1 | 86.1 Ohm/km |
| Insulation resistance cable K1 | 200 MOhm x km |
| Typ. characteristic imped. K1 | 100 - 120 Ohm |
Environmental data
| Ambient temperature | -20 … 80 °C |
Mechanical data
| Cable type K1 | TP-(ST)-C-PUR-H |
| Material shield surface K1 | Sn |
| Colour cable insulation 1 | Signal yellow RAL1003 |
| Material of cable insulation 1 | PUR |
| Trailing capability of cable 1 | no |
| Bend radius (when laying) K1 | 5 x Ø |
| Max. outside diameter cable K1 | 6.35 |
| Insulation mat. data cable K1 | TPE-E |
| Insul. mat. supply cable K1 | PP |
| Diameter data line AWG K1 | 24 |
| Cross section data cable K1 | 2 x 0.24 mm² |
| Cross section UB cable K1 | 2 x 0.37 mm² |
| Cross section shield cable K1 | 1 x 0.37 mm² |
| Stranding K1 | 2x twisted pair |
| Shielding K1 | yes |
| Type of shielding K1 | Wire mesh |
| Number of conductors | 5 |
| Approvals for cable K1 | UL AWM-Style 20236 |
| Net weight | 65 g |
| Gross weight | 65 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 0 not relevant |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27060307 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000024 |
| ETIM Reference Feature | EC002584 |
| UNSPSC 25 | 32131023 |
| GTIN | 4046548006568 |
| Volume | 0 dm3 |
| Harmonized System Code | 85444995 |
