Pilz 264639

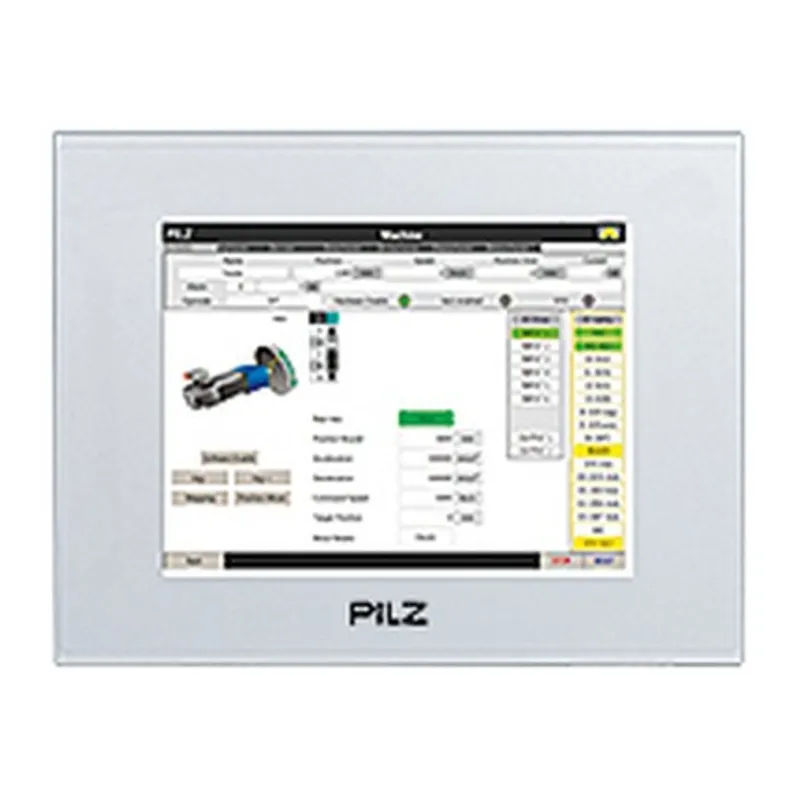

PMI 638 primo

MPN: 264639
Category: PMI operator terminals

Price and lead time confirmed within 1 business day

Discontinued by Pilz — we can still source the original 264639 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Pilz parts? We buy surplus →

What is the Pilz 264639?

PMIprimo - Motion Control control panel with 15" touchscreen, CODESYS Runtime and TargetVisu installed/licensed, Master systems: CANopen, ModbusTCP, EtherCAT, Motion Control: Dynamic Curve Calculation, CNC.

Lifecycle: Pilz has discontinued this product and no longer manufactures it. PartnerPLC sources discontinued Pilz parts — request a quote for availability, or ask us about the current Pilz successor.

Specifications

General data

Product ID (Pilz order number)	264639
Approval	CE, cULus Listed, EAC (Eurasian)
Operating system	Windows Embedded Compact 7
Lifecycle	Discontinued (no longer manufactured by Pilz)

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Power consumption DC	17.4 W

Display

Display type	TFT
Display diagonal	15 Zoll
Display resolution	1024 x 768
Display colour depth	16.2 M
Type of touchscreen	resistive

CPU

Processor type	X86
Processor clock speed	1.3 GHz
RAM	512 MB
Size of program memory (Flash)	512 MB
Real-time clock present	Yes

Removable storage media

Plug-in memory

SD Card

USB interface

Number of USB host interfaces

PROFIBUS-DP interface

Perm. PROFIB. statn. addresses	0 ... 126d
Setting PROFIBUS station addr.	Software
Connector type Profibus inter.	9-pin D-Sub female connector
Name PROFIBUS protocol	DPV0
PROFIBUS operating modes	AutoBaud
Name description file profib	Pilz0DCC.gsd
PROFIBUS manufacturer ID	0DCCh

Ethernet interface

Ethernet IP address	192.168.0.11
Connector type ETHERNET int.	RJ45
Ethernet transmission rate	1 Gbit/s
Number of Ethernet interfaces	1

CANopen interface

Number of CANopen interfaces	1
CANopen type	Master, Slave
Canopen cycle time	1 ms, 2 ms, 4 ms
Canopen transmission times	500 kBit/s, 250 kBit/s, 1000 kBit/s

Ethercat interface

Connector type Ethercat int.	RJ45
Ethercat transmission rate	100 MBit/s

Serial interface

Number of RS 232 interfaces

Environmental data

Ambient temperature	0 … 50 °C
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	90 % r. h. at 40 °C
Condensation permitted?	Not permitted
EMC to standard ...	EN 61000-6-2, EN 61000-6-4
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Protection type standard	EN 60529
Protection type, housing	IP20

Mechanical data

Height dimension	332 mm
Width dimension	412 mm
Depth dimension	81.9 mm
Net weight	4510 g
Gross weight	6860 g

Environment

RoHS directive	2011/65/EU, 2015/863/EU
RoHS conformity	yes
RoHS exceptions	yes
RoHS except.s acc. to direct.	7a
REACh compliance	contains min. 1 SVHC-substance
REACh included substances	Lead
%-part of the pollutant	> 0,1
CAS No.	7439-92-1
SCIP entry available	yes
WEEE classification (08/2018)	2 device/monitor > 100 cm²

Commercial data

ECLASS version	ECLASS-9.1
ECLASS Reference Feature	27330201
ETIM Version	ETIM-7.0
ETIM Reference Group	EG000024
ETIM Reference Feature	EC001412
