Pepperl Fuchs VAZ-2E1A-PM-S

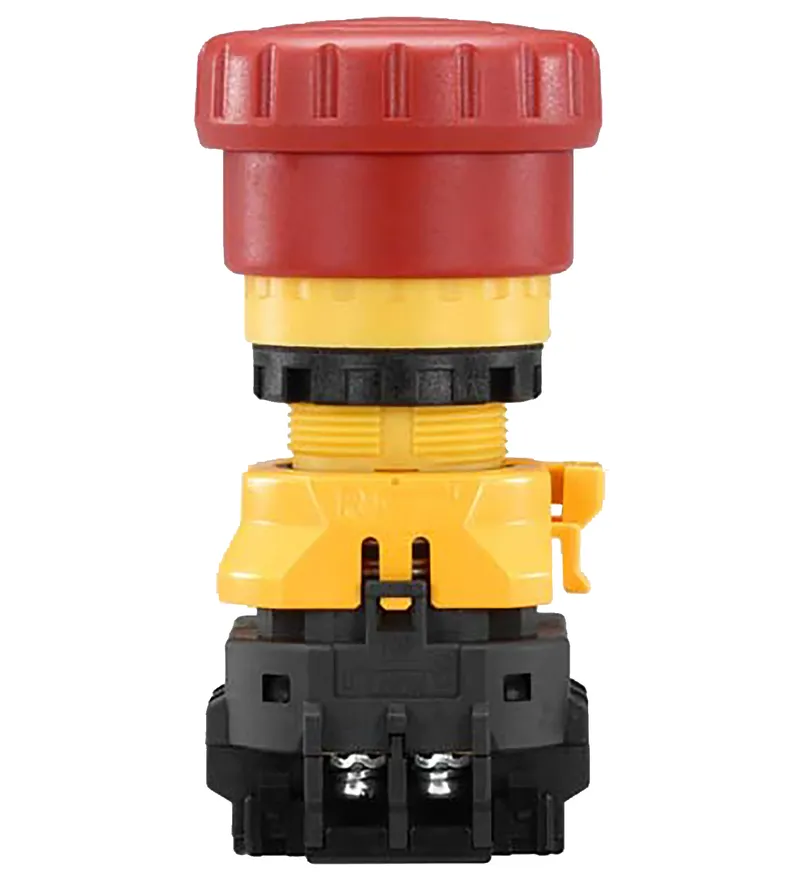

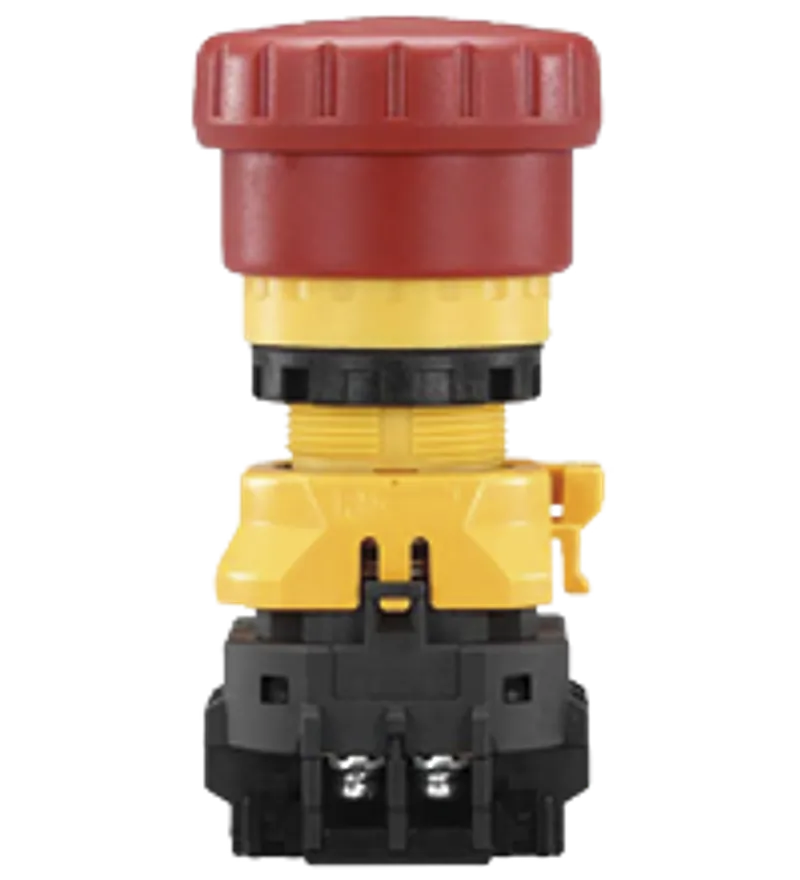

Emergency stop button
- MPN
- VAZ-2E1A-PM-S
- Category
- Safety at Work
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs VAZ-2E1A-PM-S?
2-channel, compelled connected
Overload-protected in accordance with IEC 60947-5-5
Integrated illumination in the actuator
TÜV-approval for system components is available
Biased actuator for self-monitoring
EMERGENCY STOP unlocking by turning or pulling
Illuminated emergency stop button, 2-channel, force-guided
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70146633 |
| UL File Number | E198304 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 284 a |
| B10d | 2 E+5 |
Electrical specifications
| Rated operating voltage | 24 V AC/DC Ue |
| Rated operating current | 5 A Ie |
| Surge protection | Category II |
| Insulation resistance | min. 100 MΩ |
| Bulb | 15 mA |
Input
| Number/Type | 2 NC Safety function by positive openingin accordance with IEC/EN 60947-5-1Reset by pulling |
Output
| Number/Type | LED red |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | IEC 60947-5-5 |
Standard conformity
| Degree of protection | IEC 60529 |
| Electrical safety | EN/IEC 60947-5-5 |
| Functional safety | IEC 60947-5-1 IEC 60947-5-5 |
Ambient conditions
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) (no freezing) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |
| Relative humidity | 45 ... 85 % , non-condensing |
| Pollution degree | 3 |
Mechanical specifications
| Operating force | Push: 32 N Pull: 21 N Turn: 0.27 Nm Minimum for positive opening: 80 Nm |
| Operating distance | for positive opening operation: min. 4 mm maximal: 4.5 mm |
| Degree of protection | IP65 depends on mounting point |
| Connection | Cable cross section 0.75 mm2 to 1.25 mm2 (AWG 18 to 16) , screw terminals |

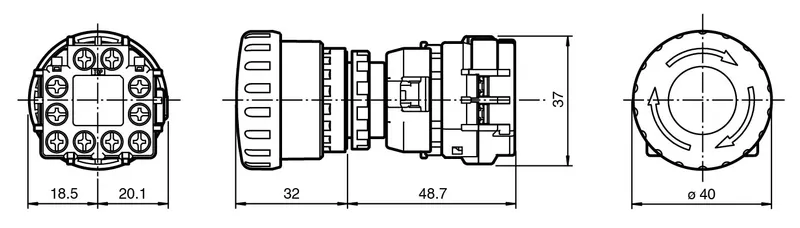

| Installation | Installation in 22 mm hole |
| Mass | 72 g |
| Tightening torque, fastening screws | 2 Nm |
| Tightening torque of clamping screws | 0.6 to 1 Nm |
| Life span | > 250,000 switching operations |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
VAZ-2E1A-PM-S: frequently asked questions
When can VAZ-2E1A-PM-S be shipped?
VAZ-2E1A-PM-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAZ-2E1A-PM-S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAZ-2E1A-PM-S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAZ-2E1A-PM-S, subject to availability and destination.
