Pepperl Fuchs V31-GM-5M-PUR-V11-G
Connection cable
- MPN
- V31-GM-5M-PUR-V11-G
- Category
- Sensor-Actuator Cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V31-GM-5M-PUR-V11-G?
Degree of protection IP66 / IP68
Resistant to microbes and hydrolysis
Halogen-free
Specific design protects against loosening and inaccurate installation

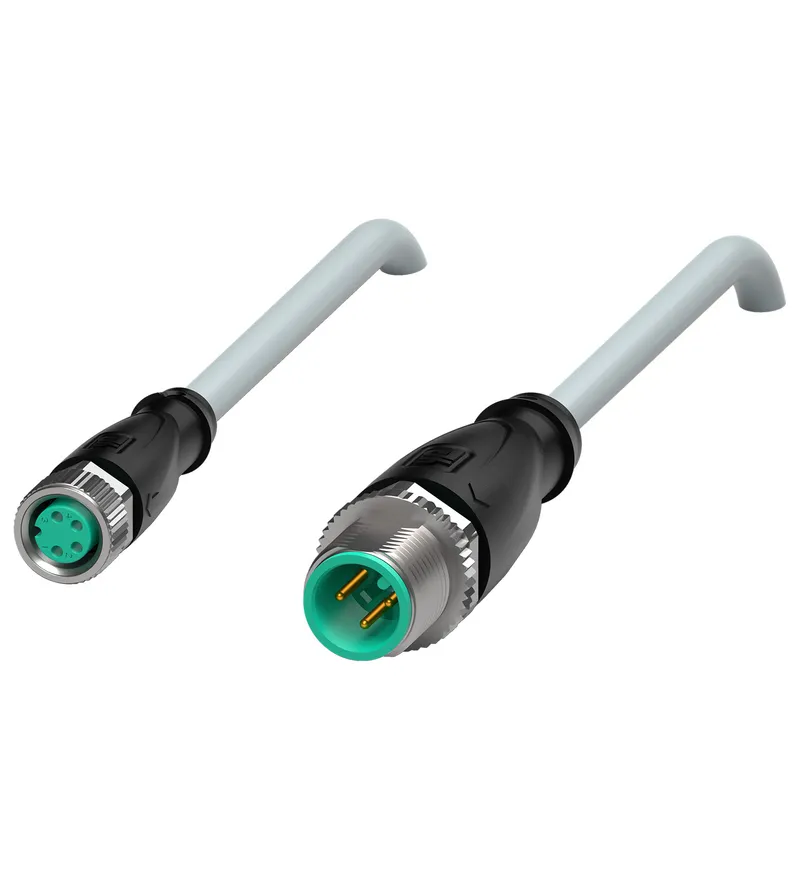

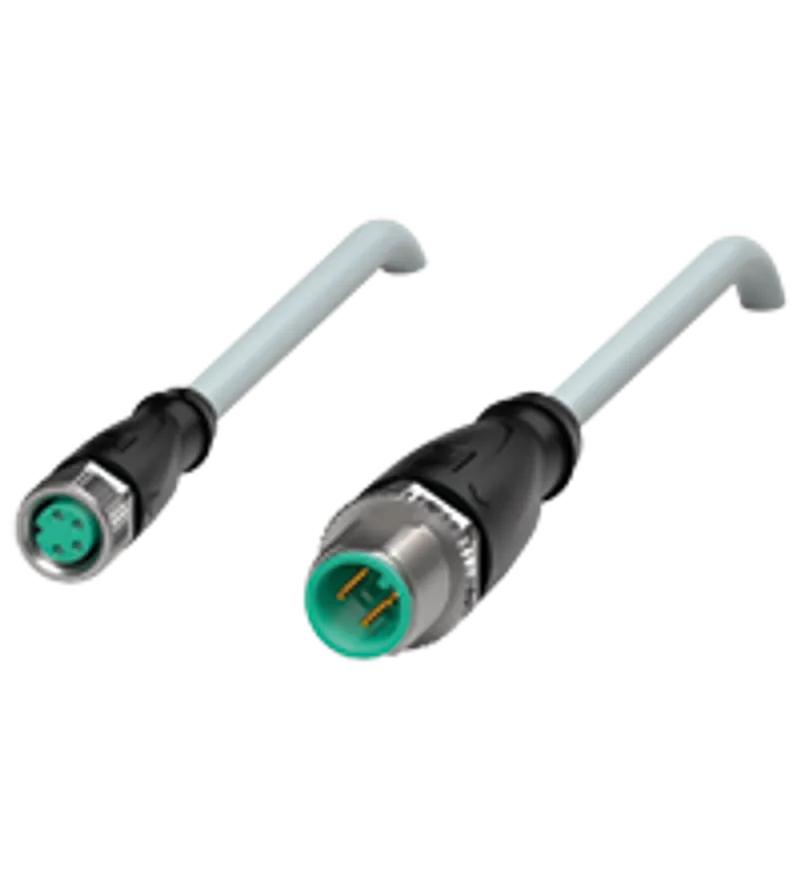

Cordset M8 socket straight A-coded 4-pin to M12 plug straight A-coded 3-pin, PUR cable grey
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 193621 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 3 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | IEC 60754-1 |
| Lead-free | RoHS directive 2011/65/EU |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connector 1: Tightening torque | 0.4 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Degree of protection | IP66 / IP68 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Loosening protection | integrated |
| Connector 2: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.3 mm |
| Bending radius | > 15 x cable diameter, movable installation > 8 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 500 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 3 |
| Core cross section | 0.25 mm2 |

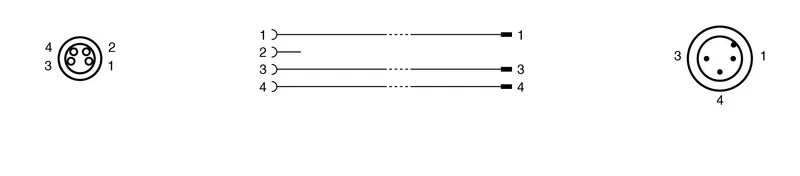

| Cores color | Core 1: brown Core 3: blue Core 4: black |
| Core construction | 14 x 0.15 mm ∅ |
| Length | 5 m L |
| Cable code | Li 9Y 11Y 3 x 0,25 |
| Drag chain suitability: Drag chain cycles | max. 50 / day |
| Drag chain suitability: Motion velocity | max. 0.3 m/s |
| Mass | 119.79 g |
Material
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
