Pepperl Fuchs V3-GM-BK5M-PUR-U/ABG
Cable socket, shielded
- MPN
- V3-GM-BK5M-PUR-U/ABG
- Category
- Sensor-Actuator Cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V3-GM-BK5M-PUR-U/ABG?
Degree of protection IP66 / IP68
Halogen-free
Shield connected to screw connection
Specific design protects against loosening and inaccurate installation
UL approval

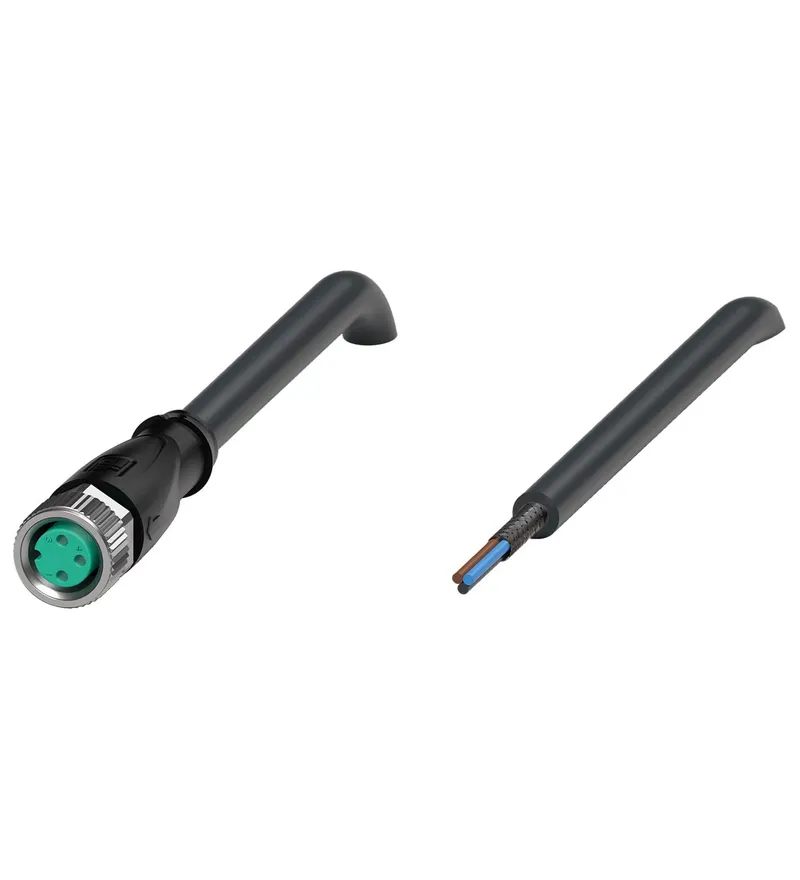

Female cordset single-ended M8 straight A-coded, 3-pin, PUR cable black, UL approved, shielded
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70145901-100005 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 |
Approvals and certificates
| UL approval | AWM STYLE 20549/10493 80°C 300V FT2 |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |

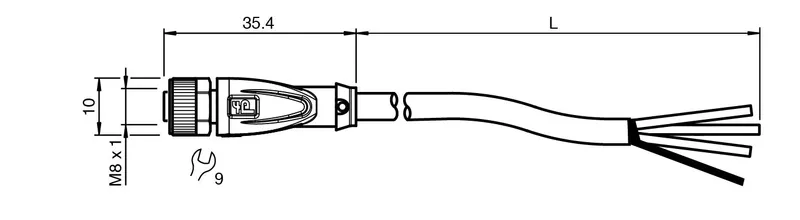

Mechanical specifications

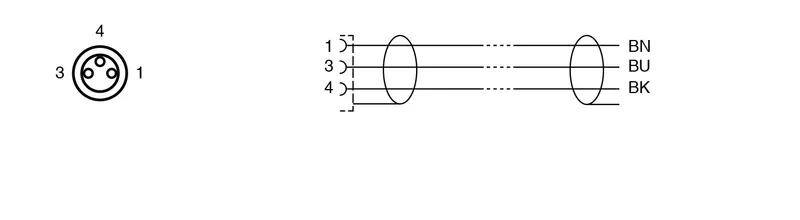

| Plug connector: Tightening torque | 0.4 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.9 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 60 N / 100 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white , not used Core 3: blue Core 4: black |
| Core construction | 42 x 0.1 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 5 m L |
| Cable code | Li F 9Y C11Y 4 x 0,34 |
| Drag chain suitability: Drag chain cycles | min. 2000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 5 m/s2 |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 1x PUR transparent , fixed to cable |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
