Pepperl Fuchs V1/15B-0,3M-LIHCH-TP-T-V23+20
Y connection cable
- MPN
- V1/15B-0,3M-LIHCH-TP-T-V23+20
- Category
- Sensor-Actuator Splitters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V1/15B-0,3M-LIHCH-TP-T-V23+20?
Halogen-free
Degree of protection IP67
Contact carrier rotated by 20°

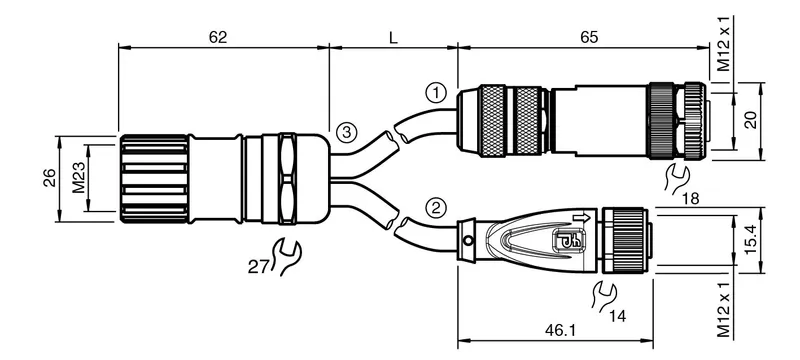

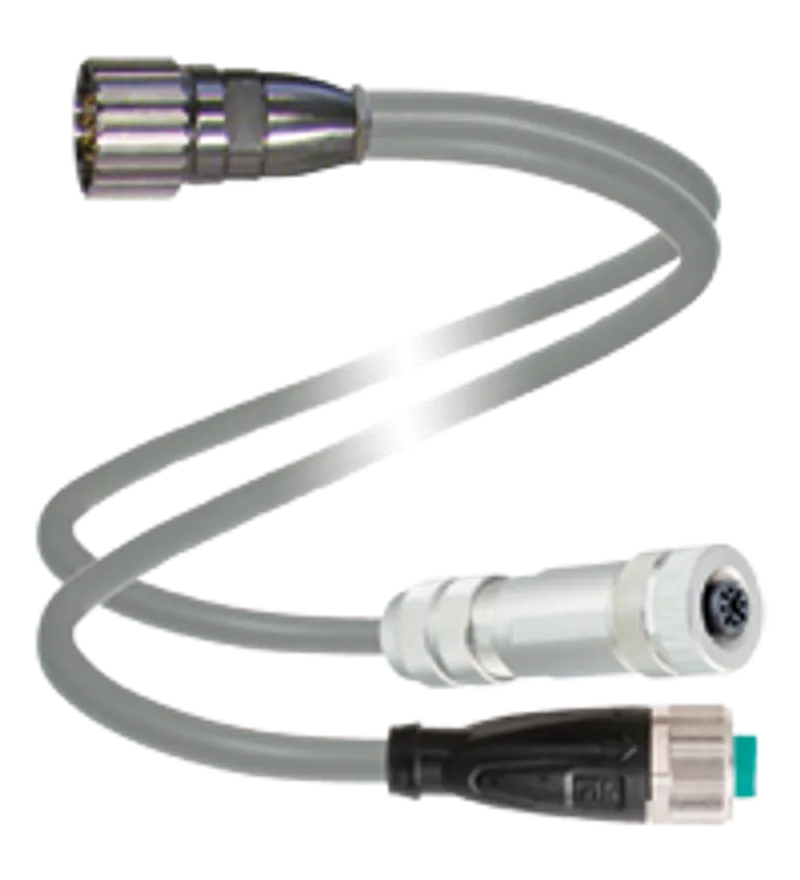

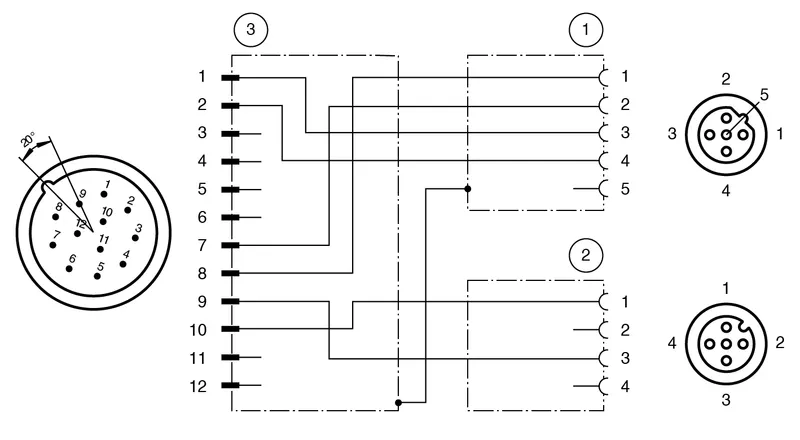

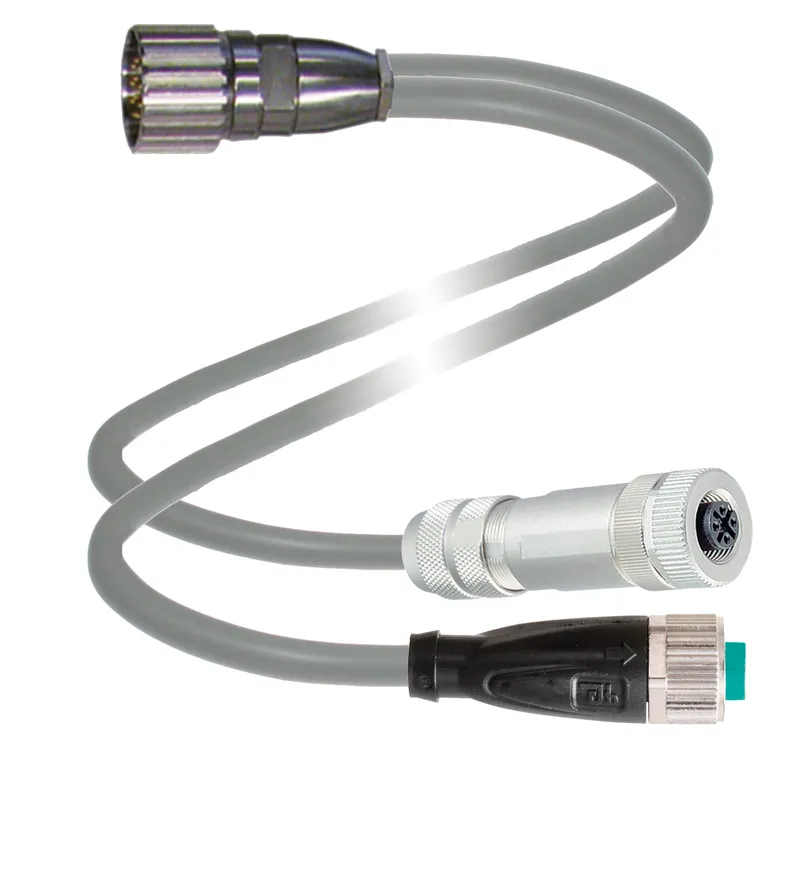

Y connection cable M23 plug straight A-coded 12-pin to M12 socket straight 5-pin B-coded / M12 socket 4-pin straight A-coded, PUR cable grey, shielded
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70189041 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 5 |
| Connector 1: Coding | B-coded |
| Connector 2: Connection | socket |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Connector 3: Connection | plug |
| Connector 3: Construction type | M23 |
| Connector 3: Style | straight |
| Connector 3: Locking | screw connection |
| Connector 3: Number of pins | 12 |
| Connector 3: Coding | A-coded |
| Connector 3: Customization | contact carrier rotated by 20° |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 2 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | DIN VDE 0472-815 DIN EN 50267-2-1 |
Ambient conditions
| Ambient temperature: Connector 1 | -40 ... 85 °C (-40 ... 185 °F) |
| Ambient temperature: Connector 2 | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Connector 3 | -40 ... 125 °C (-40 ... 257 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Tool installation | straight knurling , hexagon nut SW = 18 mm |
| Connector 1: Mating cycles | min. 50 |
| Connector 1: Shielding | shield connected to screw connection |
| Connector 1: Degree of protection | IP67 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Loosening protection | available |
| Connector 2: Tool installation | straight knurling , hexagon nut SW = 14 mm |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Shielding | none |
| Connector 2: Degree of protection | IP68 / IP69 |
| Connector 3: Tool installation | straight knurling , hexagon nut SW = 27 mm |
| Connector 3: Mating cycles | min. 1000 |
| Connector 3: Shielding | shield connected to screw connection |
| Connector 3: Degree of protection | IP67 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 100 N / 300 mm |
| Sheath color | grey (similar to RAL 7001) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 19 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 0.3 m L |
| Cable code | Li 9Y 11YM 4 x 0.34 |
| Mass | 168.1 g |
Material
| Halogen-free | yes |
| Connector 1: Screw connection | Zinc diecast, nickel-plated |
| Connector 1: Body | Zinc diecast, nickel-plated |
| Connector 1: Contact surface | gold plated (Au) |
| Connector 2: Screw connection | Zinc diecast, nickel-plated |
| Connector 2: Body | TPU, black |
| Connector 2: Seal | FKM |
| Connector 2: Contact surface | gold plated (Au) |
| Connector 2: Flammability | V-2 |
| Connector 3: Screw connection | Diecast zinc |
| Connector 3: Body | Diecast zinc |
| Connector 3: Contact surface | gold plated (Au) |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Chemical resistance | good |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
V1/15B-0,3M-LIHCH-TP-T-V23+20: frequently asked questions
When can V1/15B-0,3M-LIHCH-TP-T-V23+20 be shipped?
V1/15B-0,3M-LIHCH-TP-T-V23+20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1/15B-0,3M-LIHCH-TP-T-V23+20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1/15B-0,3M-LIHCH-TP-T-V23+20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1/15B-0,3M-LIHCH-TP-T-V23+20, subject to availability and destination.
