Pepperl Fuchs V11-G-0,6M-PUR-U-T-0,6M-V31-GM
Y connection cable
- MPN
- V11-G-0,6M-PUR-U-T-0,6M-V31-GM
- Category
- Sensor-Actuator Splitters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V11-G-0,6M-PUR-U-T-0,6M-V31-GM?
Easy merging of two signals at a single M8 slot
Suitable for drag chains and abrasion resistant
Suitable for robotic applications / torsion resistant
Degree of protection IP68
Free of paint wetting interfering substances
Resistant to microbes and hydrolysis
UV resistant
UL listed for USA and Canada
Halogen-free
Specific design protects against loosening and inaccurate installation

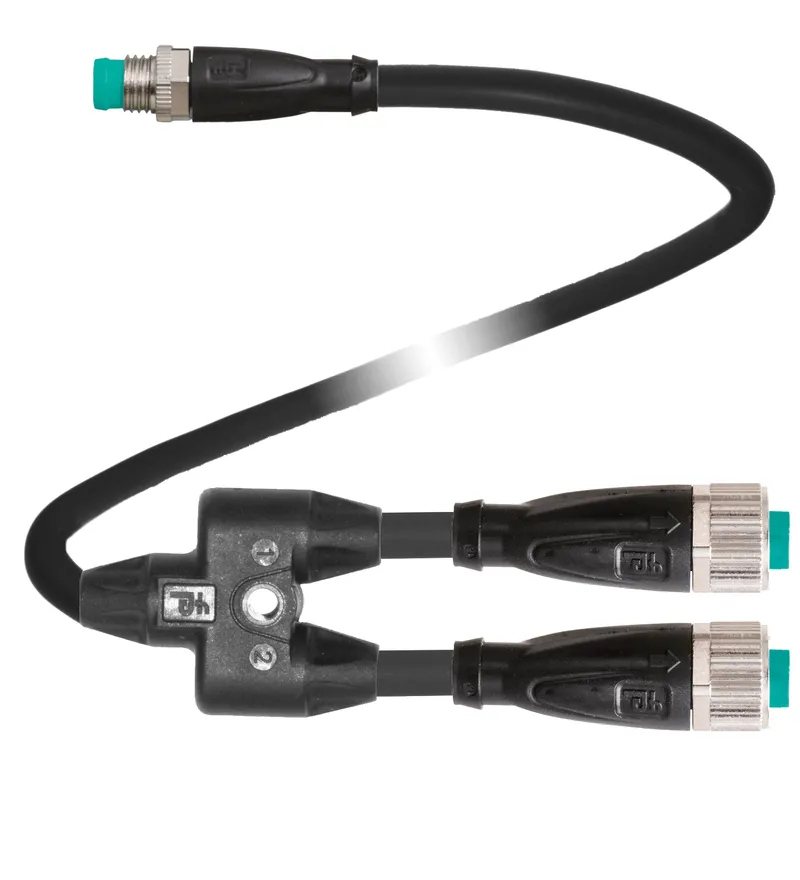

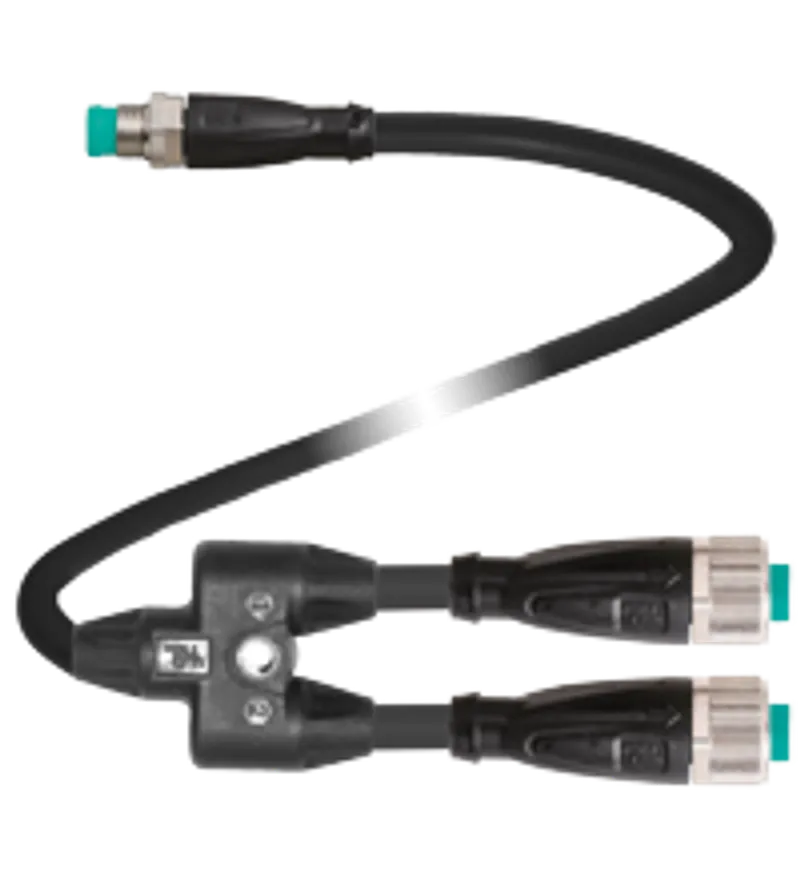

Y connection cable M8 plug straight A-coded 4-pin to 2x M12 socket straight A-coded 3-pin, 3x PUR cable black, UL approved, drag chain suitable, torsion resistant
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70168309 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | socket |
| Connector 2: Construction type | M12 |
| Connector 2: Style | straight |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 3 |
| Connector 2: Coding | A-coded |
| Connector 3: Connection | plug |
| Connector 3: Construction type | M8 |
| Connector 3: Style | straight |
| Connector 3: Locking | screw connection |
| Connector 3: Number of pins | 4 |
| Connector 3: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 3 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | IEC 60754-1 |
Approvals and certificates
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature: Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) |
| Pollution degree | 3 |

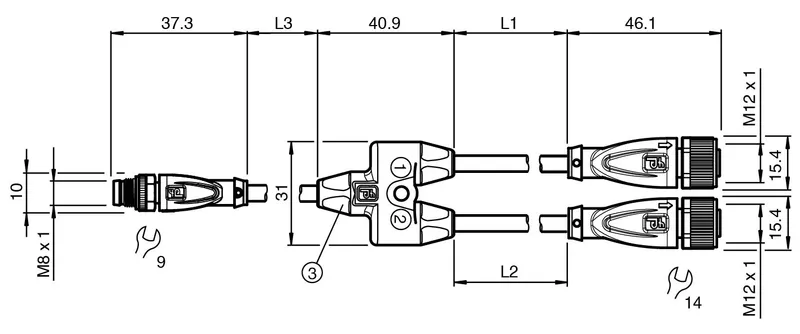

Mechanical specifications
| Connector 1: Tightening torque | 0.6 Nm |
| Connector 1: Loosening protection | integrated |
| Connector 1: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 1: Mating cycles | min. 100 |
| Connector 1: Degree of protection | IP68 / IP69 |
| Connector 2: Tightening torque | 0.6 Nm |
| Connector 2: Loosening protection | integrated |
| Connector 2: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Connector 2: Mating cycles | min. 100 |
| Connector 2: Degree of protection | IP68 / IP69 |
| Connector 3: Tightening torque | 0.4 Nm |
| Connector 3: Loosening protection | integrated |
| Connector 3: Tool installation | straight knurling and hexagon nut SW = 9 mm |
| Connector 3: Mating cycles | min. 100 |
| Connector 3: Degree of protection | IP68 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 4.3 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | black (similar to RAL 9005) |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |

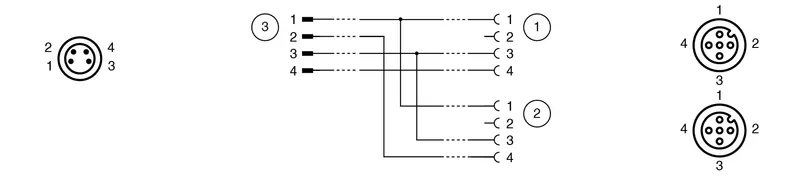

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 42 x 0.1 mm ∅ |
| Length | L1 = 0.6 m L2 = 0.6 m L3 = 0.6 m L |
| Cable code | Li 9Y 11Y 4 x 0.34 |
| Drag chain suitability: Drag chain cycles | min. 5000000 |
| Drag chain suitability: Motion velocity | max. 3.3 m/s |
| Drag chain suitability: Traverse distance | max. 5 m |
| Drag chain suitability: Acceleration | max. 5 m/s2 |
| Drag chain suitability: Torsion cycles | min. 1000000 |
| Drag chain suitability: Torsional stress | ± 180 °/m |
| Mass | 86 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
