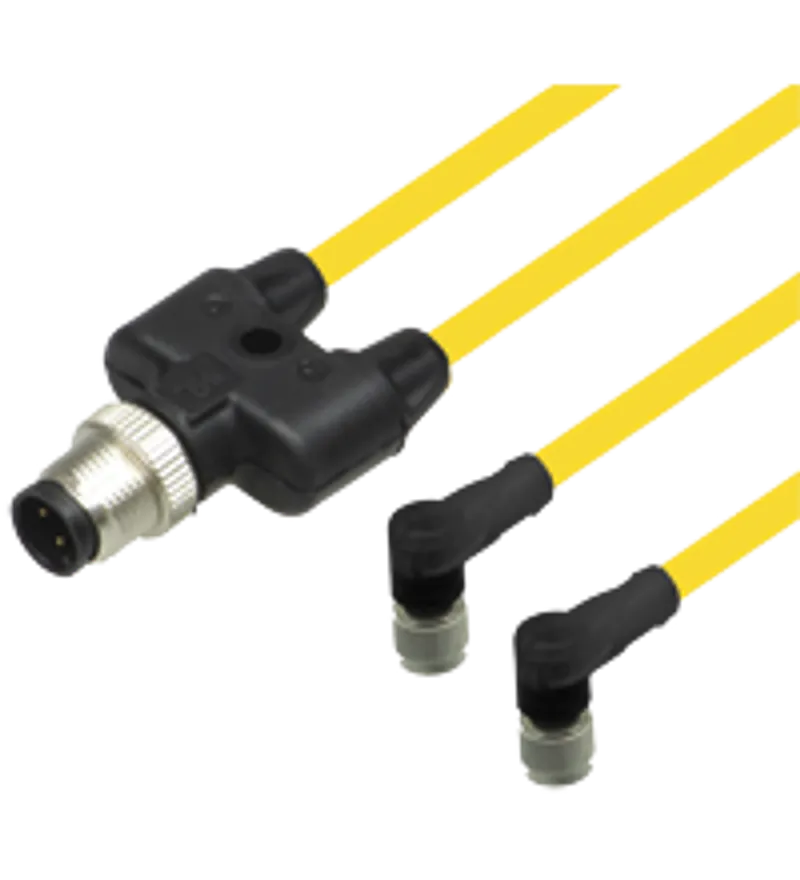

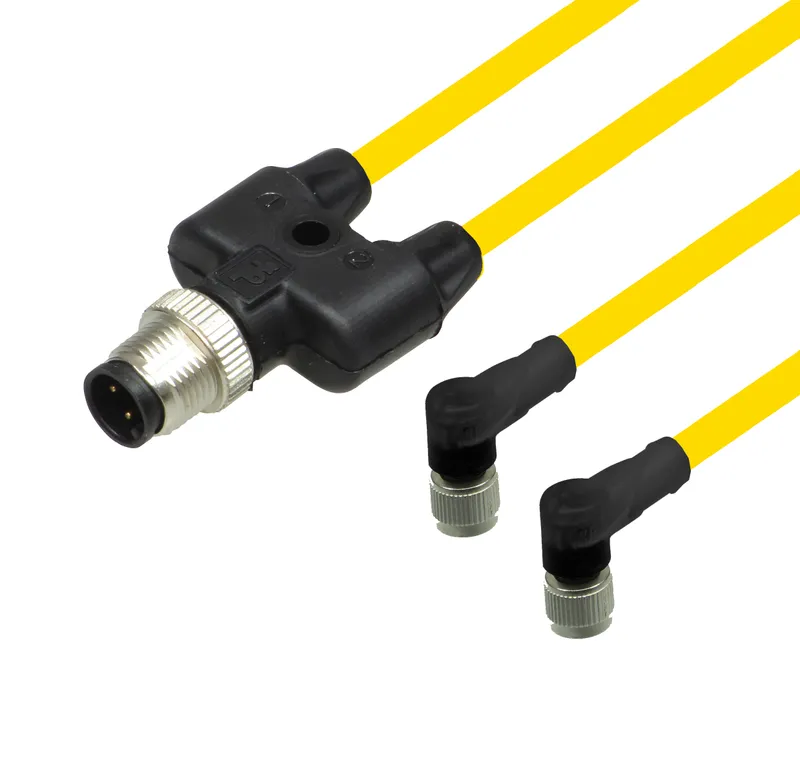

Pepperl Fuchs V1-W-YE0,3M-PUR-A1-T-V1-G – Y connection cable. Y connection cable M12 plug straight…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor-Actuator Splitters |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-W-YE0,3M-PUR-A1-T-V1-G be shipped?
V1-W-YE0,3M-PUR-A1-T-V1-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-W-YE0,3M-PUR-A1-T-V1-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-W-YE0,3M-PUR-A1-T-V1-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-W-YE0,3M-PUR-A1-T-V1-G, subject to availability and destination.

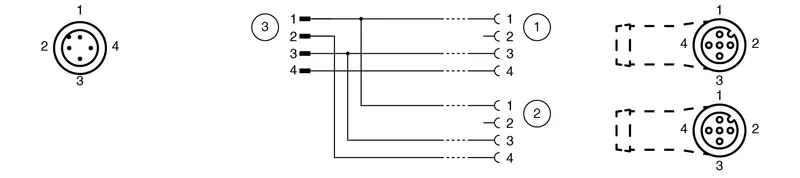

Y connection cable. Y connection cable M12 plug straight A-coded 4-pin to 2x M12 socket angled A-coded 4-pin, 2x PUR cable welding-bead resistant yellow, UL approved, drag chain suitable, torsion resistant. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Hydrolysis resistance: DIN EN 50525-2-21. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter5.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath coloryellow (similar to RAL 1021)Number of cores5Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not usedCore construction42 x 0.1 mm ∅LengthLL1 = 0.3 m L2 = 0.3 mCable codeLi F 9Y 11Y 5 x 0,34: . Sheath diameter: 5.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: yellow (similar to RAL 1021). Number of cores: 5. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not used. Core construction: 42 x 0.1 mm ∅. Length: L1 = 0.3 m L2 = 0.3 m. Cable code: Li F 9Y 11Y 5 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m. Mass: 73.05 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationPPWelding-bead resistanceyesWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. Welding-bead resistance: yes. Weld spatter resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | angled |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 2 | |
| ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | angled |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 3 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | DIN VDE 0472-815 |
| Microbial resistance | DIN EN 50525-2-21 / DIN VDE 0282-10 |
| Hydrolysis resistance | DIN EN 50525-2-21 |
Approvals and certificates
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature | |
| Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F) | Plug connector |
| Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) |
| Cable, flexing | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |

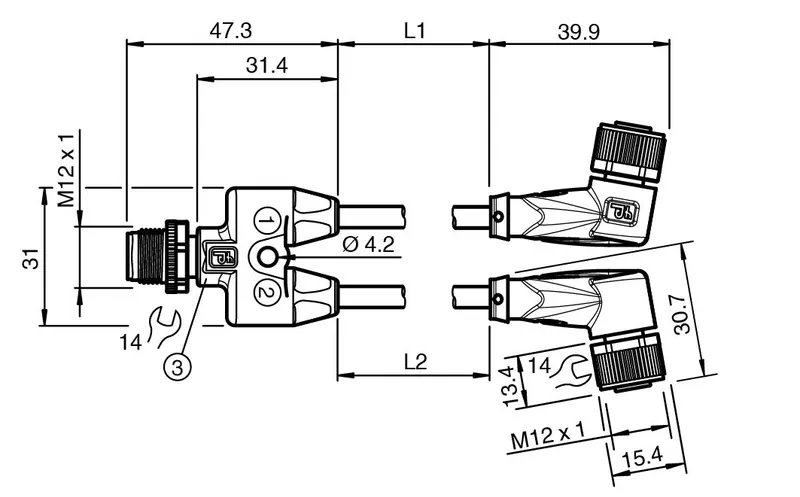

Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Loosening protection | available |
| Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | min. 100 |
| Degree of protection | IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter5.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath coloryellow (similar to RAL 1021)Number of cores5Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not usedCore construction42 x 0.1 mm ∅LengthLL1 = 0.3 m L2 = 0.3 mCable codeLi F 9Y 11Y 5 x 0,34 | Sheath diameter |
| Sheath diameter | 5.3 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | yellow (similar to RAL 1021) |
| Number of cores | 5 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: not used |
| Core construction | 42 x 0.1 mm ∅ |
| Length | L1 = 0.3 m L2 = 0.3 m L |
| Cable code | Li F 9Y 11Y 5 x 0,34 |
| Drag chain suitability | |
| Drag chain cyclesmin. 5000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m | Drag chain cycles |
| Drag chain cycles | min. 5000000 |
| Motion velocity | max. 3 m/s |
| Traverse distance | max. 5 m |
| Acceleration | max. 5 m/s2 |
| Torsion cycles | min. 1000000 |
| Torsional stress | ± 180 °/m |
| Mass | 73.05 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Body | TPU, black |
| Seal | FKM |
| Contact surface | gold plated (Au) |
| Flammability | V-2 |
| Cable | |
| SheathingPUR based on polyetherCore insulationPPWelding-bead resistanceyesWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2 | Sheathing |
| Sheathing | PUR based on polyether |
| Core insulation | PP |
| Welding-bead resistance | yes |
| Weld spatter resistance | yes |
| Chemical resistance | good |
| Oil resistance | yes |
| Cooling lubricant resistance | yes |
| Microbial resistance | yes |
| Hydrolysis resistance | yes |
| Flammability | FT2 |
More Pepperl Fuchs parts

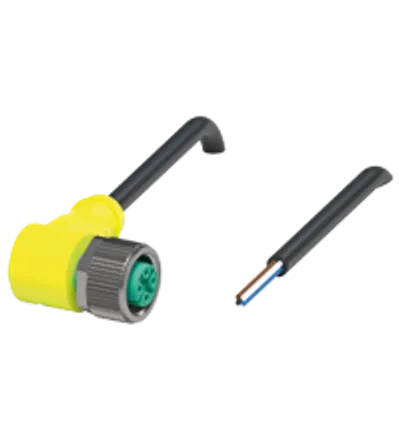

Available on requestPepperl Fuchs V1-W-S-BK5M-PUR-A – Female cordset. Female cordset single-ended M12 yellow…

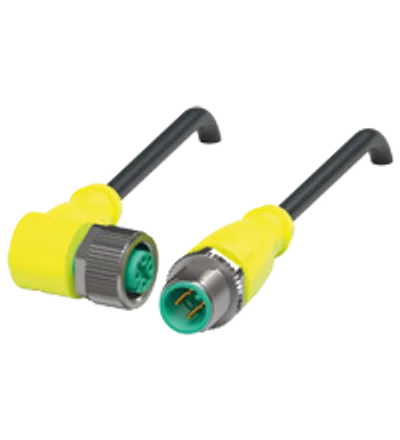

Available on requestPepperl Fuchs V1-W-S-BK5M-PUR-A-V1-G – Connection cable. Cordset M12 socket yellow angled to M12…
Available on requestPepperl Fuchs V1-W-S-BK8M-PUR-A-V1-G – Connection cable. Cordset M12 socket yellow angled to M12…
Available on requestPepperl Fuchs V1-W-SC

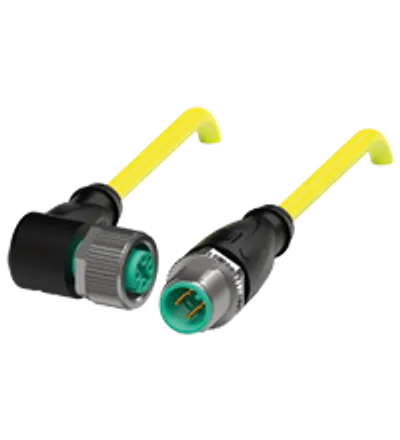

Available on requestPepperl Fuchs V1-W-YE0,3M-PVC-U-V1-G
Available on requestPepperl Fuchs V1-W-YE0,6M-PUR-A1-T-V1-G – Y connection cable. Y connection cable M12 plug straight…

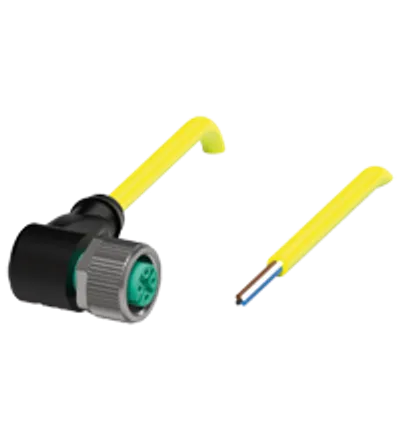

Available on requestPepperl Fuchs V1-W-YE10M-PUR-U
