Pepperl Fuchs V1-W-BK1M-PUR-O1S-V1-W
Connection cable, shielded
- MPN
- V1-W-BK1M-PUR-O1S-V1-W
- Category
- Sensor-Actuator Cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs V1-W-BK1M-PUR-O1S-V1-W?
Suitable for outdoor use (UV- and ozone resistant)
Suitable for drag chains and abrasion resistant
Degree of protection IP66 / IP68 / IP69
Free of paint wetting interfering substances
Resistant to microbes and hydrolysis
Oil resistant
Resistant to salt water
UL listed for USA and Canada
Halogen-free
Shield connected to screw connection
Specific design protects against loosening and inaccurate installation

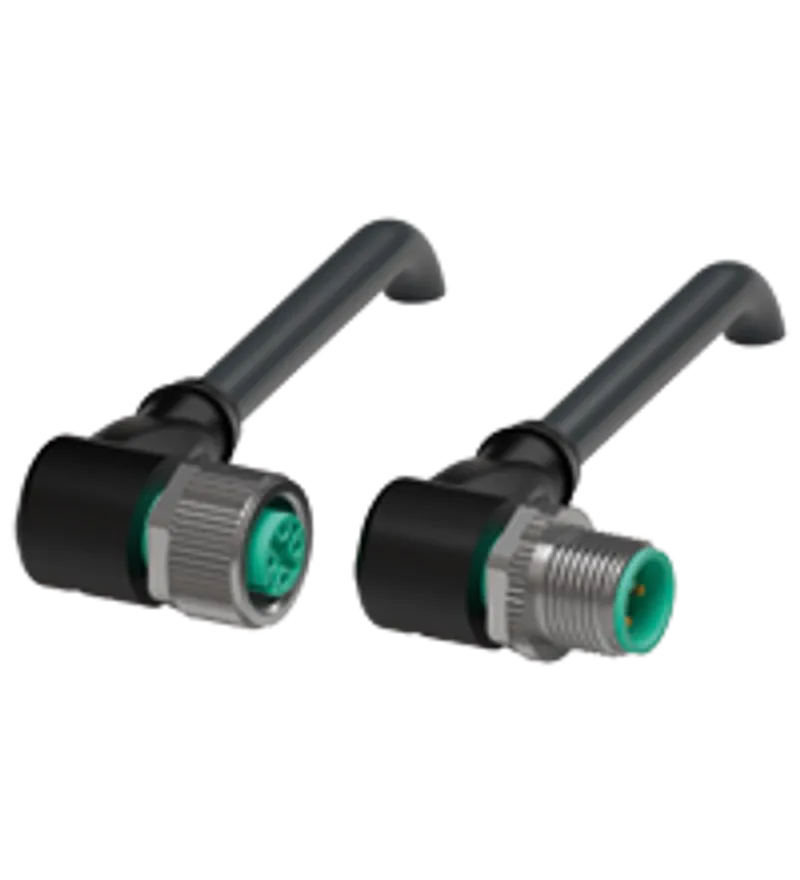

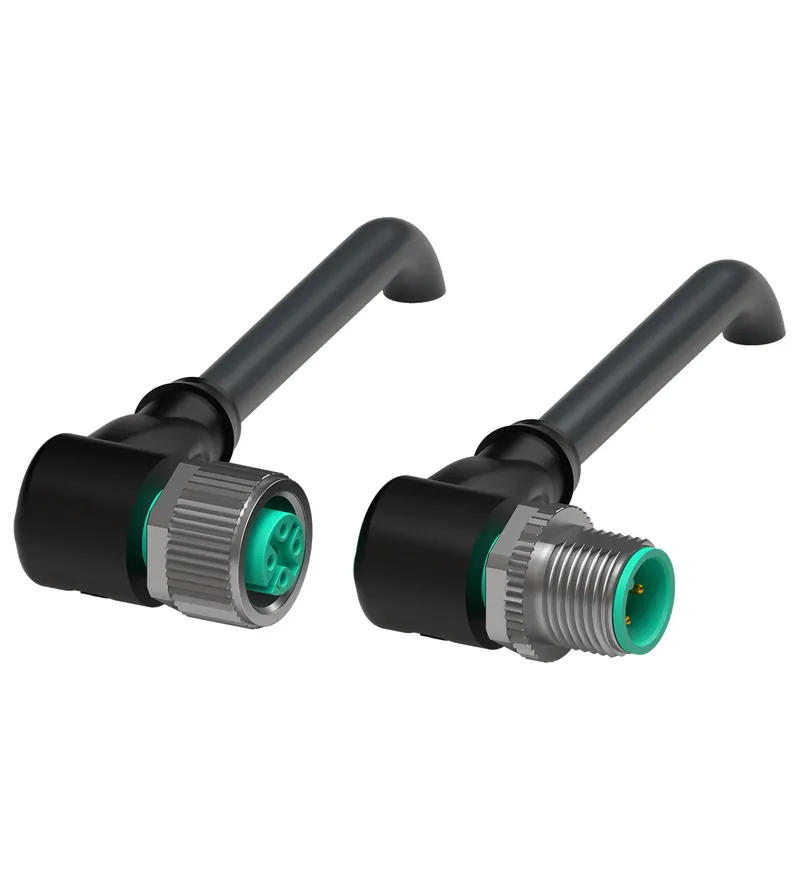

Cordset M12 socket angled to M12 plug angled A-coded, 4-pin, PUR cable black, shielded, UL approved, drag chain suitable, outdoor
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70142171-100051 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | angled |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 4 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | plug |
| Connector 2: Construction type | M12 |
| Connector 2: Style | angled |
| Connector 2: Locking | screw connection |
| Connector 2: Number of pins | 4 |
| Connector 2: Coding | A-coded |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 1581; DIN EN 60332-2-2 |
| Halogen-free | DIN VDE 0472-815 / DIN EN 50267-2-1 |
| Lead-free | RoHS directive 2011/65/EU |
| Oil resistance | DIN EN 60811-2-1 |
Approvals and certificates
| UL approval | AWM STYLE 21924/11558 105°C 300V AWM I A/B 105°C 300V FT2 (cable) |
| UL File Number | E231213 |
Ambient conditions
| Ambient temperature: Plug connector | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature: Cable, fixed installation | -50 ... 105 °C (-58 ... 221 °F) |
| Ambient temperature: Cable, flexing | -30 ... 105 °C (-22 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Loosening protection | integrated |
| Plug connector: Tool installation | straight knurling and hexagon nut SW = 14 mm |
| Plug connector: Mating cycles | min. 100 |
| Plug connector: Shielding | shield connected to screw connection |
| Degree of protection | IP66 / IP68 / IP69 |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 |
| Sheath diameter | 6 mm |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
| Sheath stripping force | max. 80 N / 300 mm |
| Sheath color | black (similar to RAL 7021) |
| Number of cores | 4 |
| Core cross section | 0.5 mm2 |

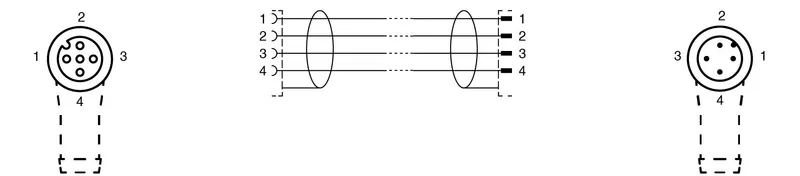

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 28 x 0.15 mm ∅ |
| Shield | tinned copper braiding, 85 % coverage |
| Length | 1 m L |
| Cable code | Li 9Y C11Y 4 x 0,50 |
| Drag chain suitability: Drag chain cycles | min. 2000000 |
| Drag chain suitability: Motion velocity | max. 3 m/s |
| Drag chain suitability: Traverse distance | max. 10 m |
| Drag chain suitability: Acceleration | max. 10 m/s2 |
| Mass | 81 g |
Material
| PWIS free | yes |
| Halogen-free | yes |
| Lead-free | yes |
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Body | TPU, black |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-2 |
| Cable: Sheathing | PUR based on polyether |
| Cable: Cores | bare copper (Cu) |
| Cable: Core insulation | PP |
| Cable: Salt water resistance | yes |
| Cable: UV resistance | yes |
| Cable: Chemical resistance | good |
| Cable: Oil resistance | yes |
| Cable: Cooling lubricant resistance | yes |
| Cable: Microbial resistance | yes |
| Cable: Hydrolysis resistance | yes |
| Cable: Flammability | FT2 |
General information
| Cable marking sleeve | 2x PUR transparent , fixed to cable |
