Pepperl Fuchs SB4 Module 4COP
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Safety Control Units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SB4 Module 4COP be shipped?
SB4 Module 4COP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SB4 Module 4COP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SB4 Module 4COP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SB4 Module 4COP, subject to availability and destination.

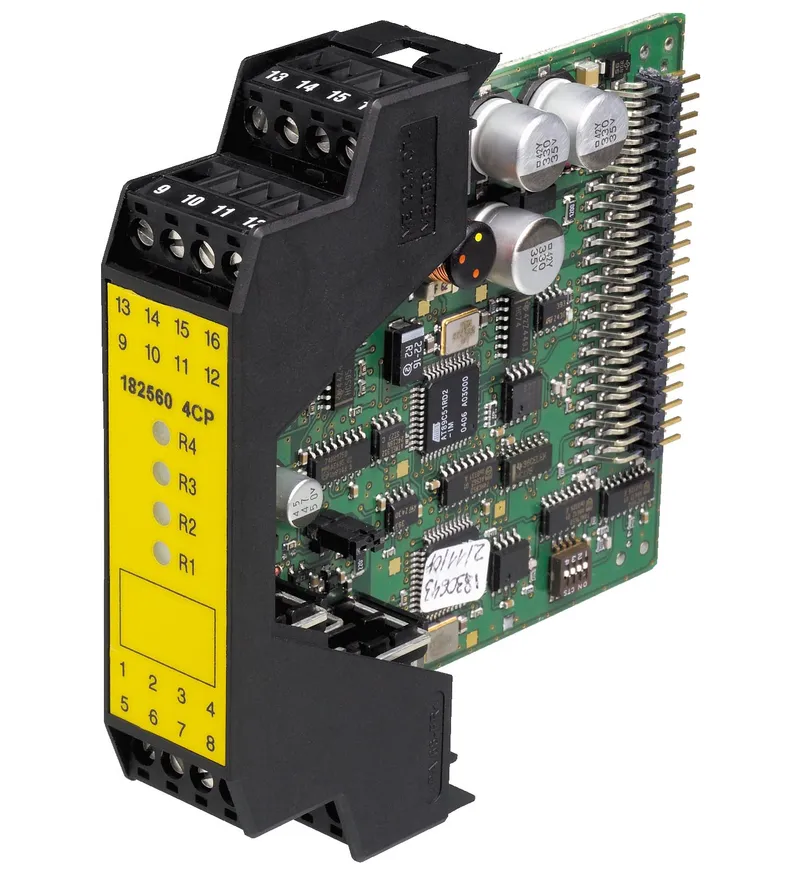

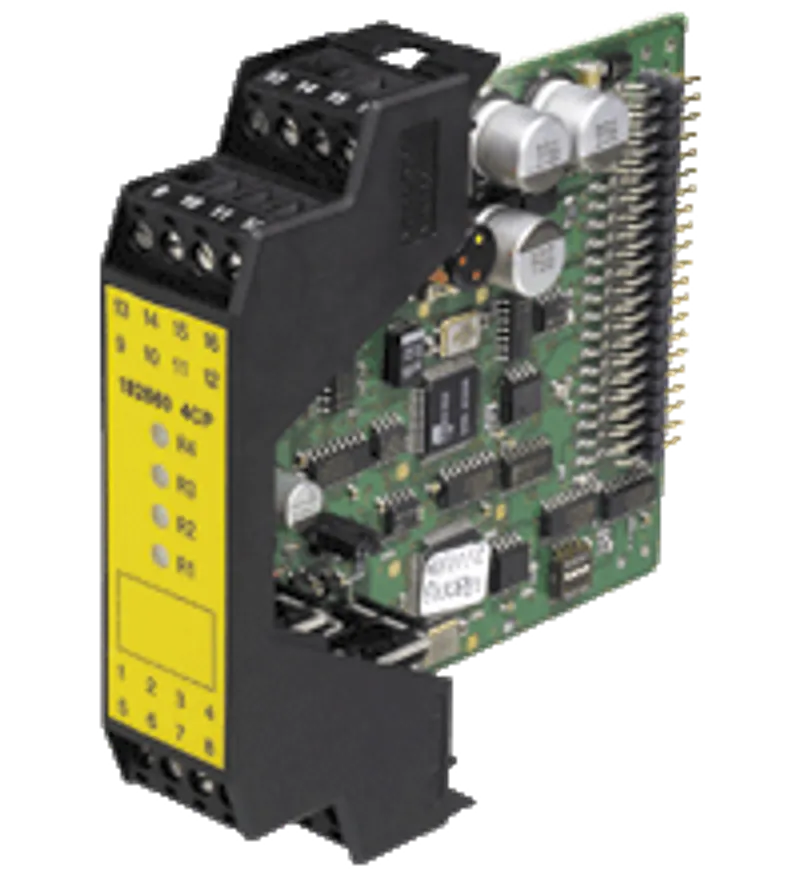

Safety control unit module. Sensor module, 4 sensor channels, Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off), Micro-Controller controls, Operating mode can be selected by means of DIP switches, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing, Connection: screw terminals , lead cross section 0.2 ... 2 mm<sup>2</sup>. Operating mode: ODER-Function. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. Type: 4. Function indicator: LED yellow (4x): indicator lamp channel 1 ... 4. Stability alarm indicator: LED yellow flashing: Indicator lamp channel 1 ... 4. Control elements: DIP switch. Operating voltage: 24 V DC ± 20 % , via SB4 Housing. Activation current: approx. 7 mA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1. CE conformity: CE. UL approval: cULus. TÜV approval: TÜV. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , lead cross section 0.2 ... 2 mm2. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: approx. 150 g. Dimensions: . Height99 mmWidth22.6 mmDepth100.5 mm: . Height: 99 mm. Width: 22.6 mm. Depth: 100.5 mm
Specifications
General specifications
| Operating mode | ODER-Function |
Functional safety related parameters
| Safety Integrity Level (SIL) | SIL 3 |
| Performance level (PL) | PL e |
| Category | Cat. 4 |
| Mission Time (TM) | 20 a |
| Type | 4 |
Indicators/operating means
| Function indicator | LED yellow (4x): indicator lamp channel 1 ... 4 |
| Stability alarm indicator | LED yellow flashing: Indicator lamp channel 1 ... 4 |
| Control elements | DIP switch |
Electrical specifications
| Operating voltage | 24 V DC ± 20 % , via SB4 Housing UB |
Input
| Activation current | approx. 7 mA |
Conformity
| Functional safety | ISO 13849-1 ; EN 61508 part1-4 |
| Product standard | EN 61496-1 |
Approvals and certificates
| CE conformity | CE |
| UL approval | cULus |
| TÜV approval | TÜV |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | screw terminals , lead cross section 0.2 ... 2 mm2 |
| Material | |
| HousingPolyamide (PA) | Housing |
| Housing | Polyamide (PA) |
| Mass | approx. 150 g |
| Dimensions | |
| Height99 mmWidth22.6 mmDepth100.5 mm | Height |
| Height | 99 mm |
| Width | 22.6 mm |
| Depth | 100.5 mm |
