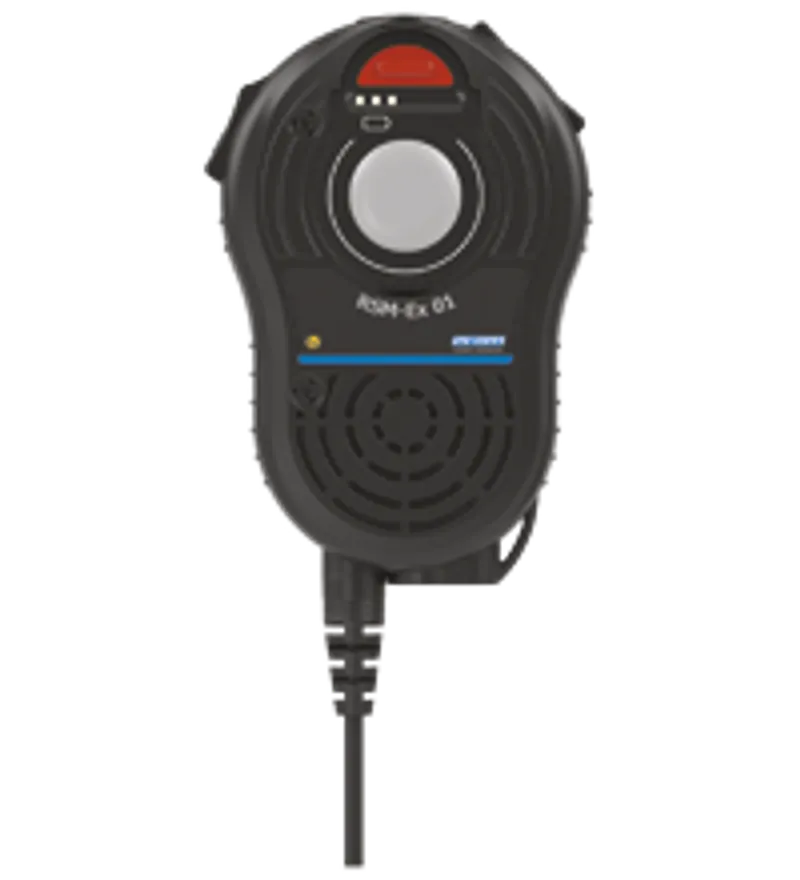

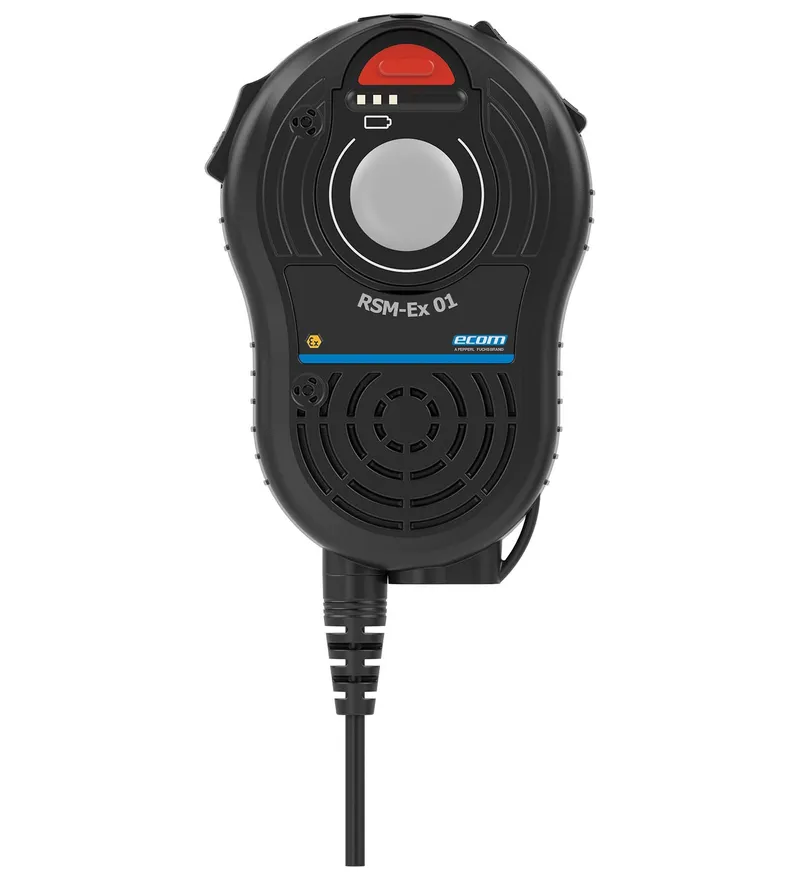

Pepperl Fuchs RSM-EX01SES-D1NAM-1SWN...AI – Remote Speaker Microphone. RSM-Ex 01, wired, Division 1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Remote Speaker Microphones |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can RSM-EX01SES-D1NAM-1SWN...AI be shipped?
RSM-EX01SES-D1NAM-1SWN...AI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RSM-EX01SES-D1NAM-1SWN...AI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RSM-EX01SES-D1NAM-1SWN...AI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RSM-EX01SES-D1NAM-1SWN...AI, subject to availability and destination.
Remote Speaker Microphone. RSM-Ex 01, wired, Division 1, straight 3.5 mm plug for Smart-Ex 01 and Ex-Handy 09, with Red Button, version for Northern America. Description: Audio Improved Version. Key: Push-to-talk button operable with thick gloves Front-facing multi-function button Volume up / down with Red Button. Sound level: up to 103 dB. Battery type: Li-Ion battery 3.7 V 2200 mAh 8.14 Wh. Operating duration: Stand-by time: approx. 80 h Actual use/operating time depending on use and set sound level (See table "Run times"). NFC: yes. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Degree of protection: IP64 according to EN/IEC 60079-0 (ATEX/IECEx) IP65IP67 following EN/IEC 60529 (industrial standard). Connection: Socket, 3.5 mm, for headset. Connector: 3.5 mm, 4-pin, straight, with lock (Smart-Ex 01 / Ex-Handy 09). Cable: coiled. Mass: 316 g. Dimensions: . W x H x D8 cm x 12 mm x 2.5 cm Including mounting clip: 8 cm x 12 cm x 3.2 cm: . W x H x D: 8 cm x 12 mm x 2.5 cm Including mounting clip: 8 cm x 12 cm x 3.2 cm. SGS approval: . SGS certificateSGSNA/19/SUW/00157XSGS markingCl I, II, III, Div 1, GRPS A-G, T4, T135°CCl I Zn 1, AEx ib IIC T4 GbCl II Zn 21, AEx ib IIIC T135°C DbCl I, Zn 1, Ex ib IIC T4 GbCl II, Zn 21, Ex ib IIIC T135°C Db: . SGS certificate: SGSNA/19/SUW/00157X. SGS marking: Cl I, II, III, Div 1, GRPS A-G, T4, T135°CCl I Zn 1, AEx ib IIC T4 GbCl II Zn 21, AEx ib IIIC T135°C DbCl I, Zn 1, Ex ib IIC T4 GbCl II, Zn 21, Ex ib IIIC T135°C Db. IECEx approval: . IECEx certificateIECEx IBE 18.0016XIECEx markingEx ib IIC T4 Gb Ex ib IIIC T135°C Db IP64 Ex ib I Mb: . IECEx certificate: IECEx IBE 18.0016X. IECEx marking: Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP64 Ex ib I Mb. Approved for: Northern America. Scope of delivery: RSM-Ex Battery Charging cable Charger Safety instructions Documentation
Specifications
General specifications
| Description | Audio Improved Version |
Indicators/operating means
| Key | Push-to-talk button operable with thick gloves Front-facing multi-function button Volume up / down with Red Button |
Audio data
| Sound level | up to 103 dB |
Electrical specifications
| Battery type | Li-Ion battery 3.7 V 2200 mAh 8.14 Wh |
| Operating duration | Stand-by time: approx. 80 h Actual use/operating time depending on use and set sound level (See table "Run times") |
Communication
| NFC | yes |
Ambient conditions
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) |
Mechanical specifications
| Degree of protection | IP64 according to EN/IEC 60079-0 (ATEX/IECEx) IP65IP67 following EN/IEC 60529 (industrial standard) |
| Connection | Socket, 3.5 mm, for headset |
| Connector | 3.5 mm, 4-pin, straight, with lock (Smart-Ex 01 / Ex-Handy 09) |
| Cable | coiled |
| Mass | 316 g |
| Dimensions | |
| W x H x D8 cm x 12 mm x 2.5 cm Including mounting clip: 8 cm x 12 cm x 3.2 cm | W x H x D |
| W x H x D | 8 cm x 12 mm x 2.5 cm Including mounting clip: 8 cm x 12 cm x 3.2 cm |
International approvals
| SGS approval | |
| SGS certificateSGSNA/19/SUW/00157XSGS markingCl I, II, III, Div 1, GRPS A-G, T4, T135°CCl I Zn 1, AEx ib IIC T4 GbCl II Zn 21, AEx ib IIIC T135°C DbCl I, Zn 1, Ex ib IIC T4 GbCl II, Zn 21, Ex ib IIIC T135°C Db | SGS certificate |
| SGS certificate | SGSNA/19/SUW/00157X |
| SGS marking | Cl I, II, III, Div 1, GRPS A-G, T4, T135°CCl I Zn 1, AEx ib IIC T4 GbCl II Zn 21, AEx ib IIIC T135°C DbCl I, Zn 1, Ex ib IIC T4 GbCl II, Zn 21, Ex ib IIIC T135°C Db |
| IECEx approval | |
| IECEx certificateIECEx IBE 18.0016XIECEx markingEx ib IIC T4 Gb Ex ib IIIC T135°C Db IP64 Ex ib I Mb | IECEx certificate |
| IECEx certificate | IECEx IBE 18.0016X |
| IECEx marking | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP64 Ex ib I Mb |
| Approved for | Northern America |
General information
| Scope of delivery | RSM-Ex Battery Charging cable Charger Safety instructions Documentation |
